COUNTER DRONE

TECHNOLOGY

TO PROTECT YOU

COUNTER DRONE

TECHNOLOGY

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

ABOUT

MYDEFENCE

MyDefence is a technology company that specializes in

manufacturing original equipment (OEM) for countering

unmanned aerial systems (C-UAS) using radio frequency

(RF) products and integrating emerging technologies to offer

complete C-UAS solutions.

The company possesses a thorough comprehension of military

requirements, infrastructure defense, and corporate operational

needs, coupled with excellent engineering capabilities, enabling

us to provide exceptional protection against malicious use of

drones.

MyDefence offers detect and defeat solutions - fixed, mobile, and

man-portable, providing a modular, scalable, flexible approach

that can operate independently or be integrated into other

network architectures.

MyDefence products are well-known for their reduced size,

weight, power, and cost, with the wearable solution being globally

recognized as a leading product. These products are combat

proven and provide operational benefits. Combined with advanced

Network Centric Warfare and various connectivity solutions,

we present unmatched configuration options for the end-user.

MyDefence is headquartered in Denmark, with a presence

in several locations in the United States. MyDefence received

ISO9001:2015 certification.

To stay updated with our latest developments, kindly follow

us on LinkedIn or visit our web site.

COUNTER DRONE

TECHNOLOGY

Drone technology is rapidly advancing, with drones being

used for a range of purposes from delivering medical supplies

to carrying out criminal and hostile military activities. This

has led to an increase in the potential hazards and threats to

critical infrastructure and military operations.

MyDefence specializes in detecting and mitigating malicious

drone activity using RF detectors and jammers, as well as other

technologies such as radars and EO/IR cameras. Our solutions

provide multi-layered protection and can be customized to

meet specific customer needs.

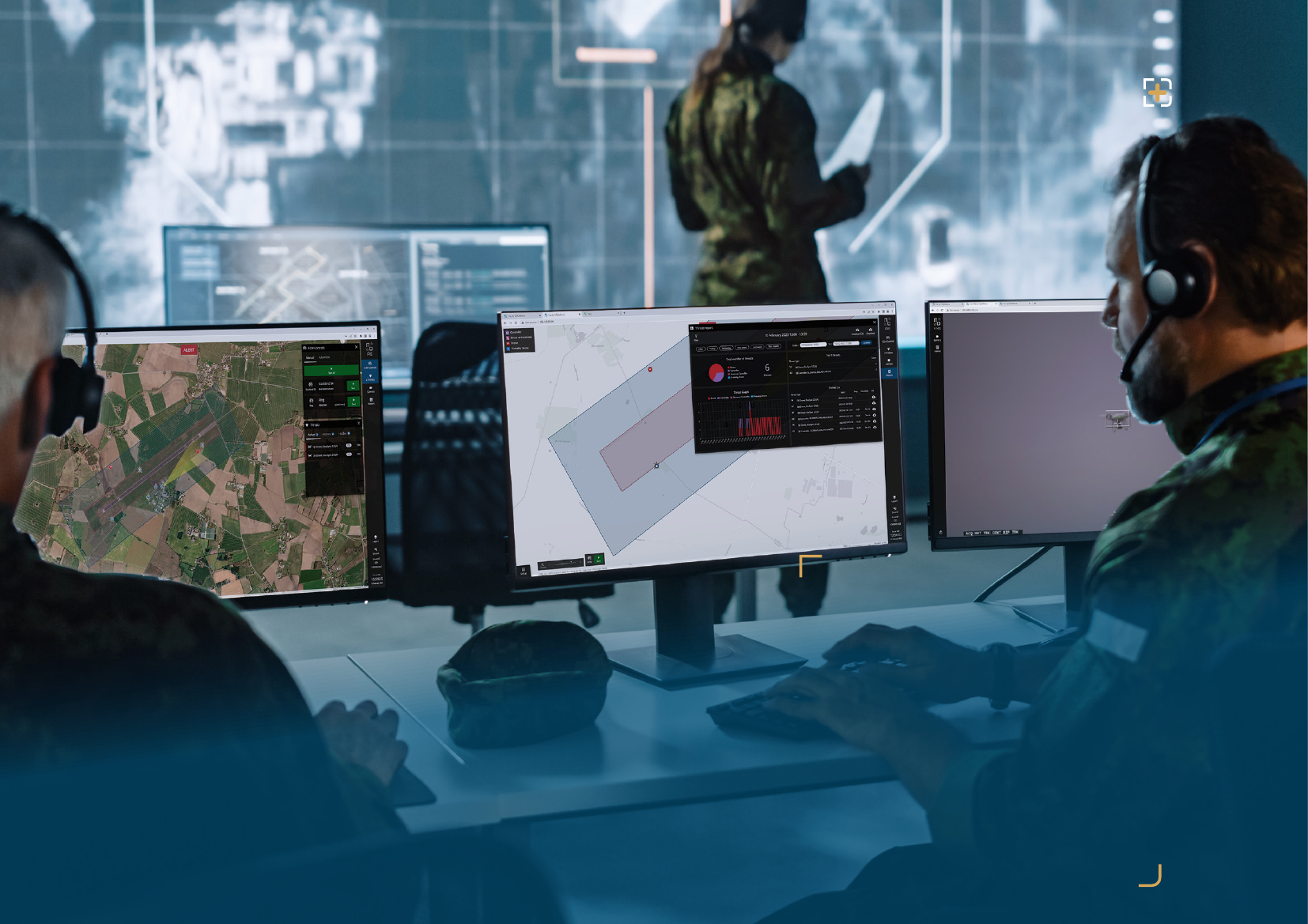

Our ARGOS (backend) and IRIS (frontend) software form the core

of a multi-layered solution and provide Situational Awareness

operational picture, as well as an interface to Command &

Control systems such as FAAD C2, Medusa or Sapient through

a simple open API.

Whatever your need, our highly skilled engineers are available

to consult with you on the best approach for your specific

requirements, ensuring that you have the best CUAS tailored

solution.

linkedin.com/mydefence/

mydefence.dk

mydefence.us

ABOUT

MYDEFENCE

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

TAILOR YOUR

SOLUTION

Vehicle solution

Airborne solution

Perimeter Protection

IRIS integration

Wearable solution

ATAK integration

Iris

THIS ICON INDICATES THAT

ALL THE PRODUCTS CAN BE INTEGRATED

IN TO A SITUATION AWAERNESS SOFTWARE

SAPIENT COMPLIANT

MEDUSA INTEGRATION

MULTI SENSOR FUSION CAPABILITY

TAILOR YOUR

SOLUTION

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

MULTI LAYER AND

MULTI DOMAIN

CUAS

SOLUTION

A CUAS multi layered solution can be integrated from different

kinds of sensors (RF, radar, EO/IR), to provide detection,

identification, recognition, and geo-location of the threats,

and offer different means of mitigation (Jamming, Spoofing,

soft or hard kill) – according to the needs and authorization.

3D RADAR

Precise drone detection

EO/IR SENSOR

360 RF SENSOR

Wolfpack 210

High Resolution Cameras

RF JAMMER

Doberman 360

SITUATIONAL AWARNESS

AIRBORN RF SENSOR

Falcon 200

Iris

CUAS

SOLUTION

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

DISMOUNTED

SOLDIER

WEARABLE

SOLUTION

MyDefence is a world leader in RF based C-UAS solutions.

Our wearable solution offers dismounted soldiers a

comprehensive, durable, and lightweight suite, comprising

the WINGMAN RF Sensor and the PITBULL RF Jammer.

This wearable solution delivers full protection - from detection

to defeat - against commercial drones deployed by hostile

forces for reconniassance or as a weaponized delivery system.

Strategically distributed within the platoon, this versatile

solution delivers peripheral protection for the entire force,

empowering dismounted soldiers to confidently carry out

their mission in the face of modern warfare challenges.

WEARABLE RF JAMMER

WEARABLE RF SENSOR

Wingman 103

Pitbull 100/101

RF JAMMER GUN

Handheld Jammer

DISMOUNTED

SOLDIER

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

Wingman

103

stay focused on their mission, knowing that the surrounding airspace

is monitored and any drones in the vicinity are promptly detected.

The Wingman seamlessly delivers alerts in various modes, ranging

from discreet sound cues in the earpiece to subtle lights or vibra-

tions, tailored to the operator’s preferences.

Engineered to endure the harshest weather conditions, the Wing-

man exhibits unrivaled durability and reliability.

Whether employed as a standalone device or integrated into a

network leveraging the cutting-edge ATAK interface, the Wing-

man embodies the epitome of next-generation drone detection

technology.

ATAK CONNECTIVITY

Integration for

both 103 and 105

INTERNAL

BATTERY

•

Designed to withstand extreme temperatures.

Waterproof - Protected cover caps protect the unused connectors,

making it possible to wade through water and operate in heavy

rainfall.

•

Alarms - Provides an alert indicated by sound, vibration, or LED.

Ongoing updates – MyDefence will keep supplying drone data-

base updates; new search filters, updated software releases with

new versions (according to your contract) to provide users with

the latest technology updates.

EXTERNAL

BATTERY

•

Extended Range Detection - Available upon request for special

missions.

High-performance Omni-directional antenna.

Threat Direction Finding capability.

Wingman 103

WEIGHT WITH BATTERY

1110 g

FREQUENCY BANDS

2.4 GHz, 5.2 GHz, 5.8 GHz*

DETECTION RANGE

Up to 6 km**

POWER SUPPLY

Standard external clip-on batteries

(AN/PRC-148)

ACTIVITY DURATION

14 Hours

DIMENSIONS

244 x 96 x 42 mm with battery

Wingman 105

WEIGHT WITH MOLLE

840 g

FREQUENCY BANDS

2.4 GHz, 5.2 GHz, 5.8 GHz*

DETECTION RANGE

Up to 6 km**

POWER SUPPLY

Internal battery

ACTIVITY DURATION

7 Hours

DIMENSIONS

154 x 96 x 60 mm

* Add an external active antenna for additional frequencies: 433MHz, 868MHz, 915MHZ,1.2GHz.

** Depending on RF environment & line of sight.

* Add an external active antenna for additional frequencies: 433MHz, 868MHz, 915MHZ,1.2GHz.

** Depending on RF environment & line of sight.

DISMOUNTED

SOLDIER

Wingman

105

The WINGMAN

wearable RF drone detector empowers operators to

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

Pitbull

100/101

be carried on the torso or on your gear (e.g., tactical vest) using the

MOLLE straps. This device provides directional jamming, enabling

users to mitigate the risk of malicious drone attacks.

Thanks to its compact form and lightweight construction, each

individual can carry a personal PITBULL as a proactive measure

against such attacks.

This jammer is user-friendly and can be used immediately without

any complicated setup. It can function autonomously when con-

nected to the Wingman or through manual operation.

The RF JAMMER GUN

(“Drone Gun”) counters drones. The system

can jam the radio modules that are most popular for drone control,

video downlink and GPS frequencies.

The directional RF Jammer Gun works in selected frequency ranges

only, to minimize collateral effects and not to interfere with other

communications.

Special Jamming modules (i.e. GNSS) are available on request.

Weighing only 6kg, the system is fully hand-held and mobile. The

Drone Gun is simple and quick to operate - designed and ready to

be used with a single push of a button (Power ON). Ideal for de-

ployable forces such as police, army, public safety, and other state

delegated defense units.

Pitbull 100/101

WEIGHT

1330 g with battery

JAMMING RATIO

80 % at 1000m, subject to

type of drone*

ACTIVITY DURATION

20 Hours (standby)

FREQUENCY BANDS

PB100:

2.4 GHz, 5.2 GHz, 5.8 GHz

PB101:

2.4 GHz, 5.2 GHz, 5.8 GHz and 1.6 GHz (GNSS)

POWER SUPPLY

Standard external clip-on batteries (AN/PRC-148)

DIMENSIONS

243 x 90 x 60 mm

with battery

RF Drone Gun

WEIGHT

6 kg

JAMMING FREQUENCIES

900 MHz, 400 MHz,

WIFI 2,4 GHz, 5,8 GHz

GPS 1,5 GHz

GNSS 1,2 GHz

BATTERI OPERATION TIME

Up to one hour

EFFECTIVE RANGE

3-5 km*

Depending on line of sight.

DISMOUNTED

SOLDIER

RF Jammer

Gun

The PITBULL

is a true wearable Counter UAS RF jammer that can

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

VEHICLE SOLUTION

DRONE DETECTION

AND MITIGATION

On the battlefield, combat vehicles are exposed to a range of

hazards that not only threaten their combat effectiveness, but

also jeopardize the safety of the soldiers who operate them.

However, MyDefence has developed an innovative solution to

protect against the dangers posed by enemy drones, whether

they are being used for reconnaissance or offensive purposes.

Our state-of-the-art vehicle system is equipped with cutting-

edge sensors that enables “on the move” detection.

They are enclosed in durable, ruggedized casings. These

sensors are seamlessly integrated with a Situational Awareness

system that can be networked to create a comprehensive

view of the operational environment.

By providing robust protection against hostile drones,

MyDefence empowers armored vehicles to operate with

greater freedom and confidence, thereby enhancing the

success rate of critical missions.

SITUATION

AWARENESS

INTEGRATION

RF SENSOR

Watchdog 250

RF JAMMER

Dobermann 150/151

360 RF SENSOR

Watchdog 150

VEHICLE

SOLUTION

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

a cutting-edge solution for detecting and analyzing control and

video signals emitted by unmanned aerial vehicles (UAVs) and

drone operators across a diverse spectrum of commercial drones,

and DIY drones operating in the lower frequency bands.

Boasting features such as alarms, direction indication, and infor-

mation on drone protocol and vendor details where applicable,

the WATCHDOG 150 and 250 models are engineered to endure

the rigors of military vehicles, withstanding intense vibration and

shock, as well as harsh environmental conditions including dust,

salt, vibration, and solar radiation, in accordance with

MIL-STD-810G and MIL-STD461F standards.

DOBERMANN

is a ruggedized networked Counter UAS jammer

with a state-of-the-art vibration dampening mount, these sensors

offer seamless installation and can be easily operated from the us-

er-friendly MyDefence IRIS (frontend HMI) or integrated into existing

situation awareness systems through the powerful MyDefence

ARGOS (Backend API) platform.

DOBERMANN 150/151, however, is not “the typical” jammer and is

packed with next-generation features that will make it stand out,

including its scalability, jamming methods and autonomous mode.

DOBERMANN DM150/151 is designed to withstand vibration and

shock of military vehicles along with a range of harsh environmental

conditions including dust, salt, and solar radiation. and qualified to

MIL-STD-810G and MIL-STD461F.

DOBERMANN DM150/151 are powered by PoE+ (Power Over Ether-

net) and fitted with a vibration dampening mount, which makes

it easy to install The DOBERMANN Counter UAS jammer can be

operated from MyDefence Iris or integrated into existing situation

awareness systems through MyDefence Argos.

Combining WATCHDOG sensors with DOBERMANN jammers mounted

on all sides of a vehicle contribute to battle effectiveness and mission

success rate as well as the safety of the combat crew.

that can protect against drone threats by actively disrupting the

control signal between the drone and its operator.

Watchdog 150

FREQUENCY BANDS

433 MHz, 868 MHz, 915 MHz, 1.2 GHz

(Omnidirectional)

DETECTION RANGE

Up to 3 km*

COVERAGE ANGLE (HORIZONTAL)

360

MILITARY STANDARD

MIL-STD-461F

Depending on RF environment & line of sight.

Watchdog 250

FREQUENCY BANDS

2.4 GHz, 5.2 GHz, 5.8 GHz

DETECTION RANGE

Up to 9 km*

COVERAGE ANGLE (HORIZONTAL)

COVERAGE ANGLE (VERTICAL)

MILITARY STANDARD

MIL-STD-461F

Dobermann

150/151

FREQUENCY BANDS

DM150

2.4 GHz, 5.2 GHz, 5.8 GHz

DM151

2.4 GHz, 5.2 GHz, 5.8 GHz

and 1.6 GHz (GNSS)

MILITARY STANDARD

MIL-STD-810G

COVERAGE ANGLE (HORIZONTAL)

COVERAGE ANGLE (VERTICAL)

VEHICLE

SOLUTION

Dobermann

150/151

Watchdog

150/250

The WATCHDOG family

of robust networked RF sensors presents

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

CRITICAL

INFRASTRUCTURE

PROTECT YOUR

ASSETS

Traditional security measures like access control, perimeter

fences, ground sensors, and surveillance cameras are no

longer sufficient to combat the current threat landscape.

Criminal and terrorist organizations have employed drones

to infiltrate or assault high-value targets.

Therefore, the necessity for a 3-dimensional defense has

become increasingly vital.

Our modular solutions offer complete coverage of large areas,

effectively reducing the risk of drone infiltrations or attacks on

strategic national assets, military bases, and civilian targets.

SITUATION

AWARENESS

INTEGRATION

360 RF SENSOR

Wolfpack 210

EO/IR SENSOR

High Resolution camaras

RF JAMMER

Dobermann 360

CRITICAL

INFRASTRUCTURE

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

as a robust perimeter protection system for stationary installations

such as prisons, military camps, and airports.

Equipped with a 360° coverage and intelligent signal analysis, WOLF-

PACK 210 can accurately pinpoint the direction of potential threats

(with accurate DF - Direction Finding) by scanning both control

signals and video feeds from unmanned aerial vehicles (UAVs).

Additionally, it can identify the specific make, model, and type of the

target drone, which is then displayed on the IRIS (GUI frontend), providing

the user with an accurate situational awareness. When used in combi-

nation with a network of sensors, it can secure a large perimeter area.

By triangulating the signals of two or more sensors, WOLFPACK

210 can calculate the coordinates of the drone. The Sensor Fusion

technology implemented in IRIS guarantees that all sensor inputs

are combined to produce a precise threat picture.

The lightweight and portable WOLFPACK 210 is versatile and can

be mounted on vehicles or vessels, providing mobile protection for

the surrounding area.

DOBERMANN 360

is a networked Counter UAS jammer that can

This system can be deployed in under 5 minutes with a simple

configuration setup. Additionally, it can be integrated into existing

security infrastructures with ease, using just two cables, via the

plug and play interface or on a protocol level.

DOBERMANN 360, has advanced features that enable enhanced

jamming capabilities – optional directional jamming in different

sectors and different frequencies, as well as 360° omnidirectional

jamming.

The DOBERMANN 360 Counter UAS jammer has manual operation

or autonomous modes. It can be operated from MyDefence Iris or

integrated into existing situational awareness systems through

MyDefence backend Argos.

protect against drone threats by actively disrupting the control

signal between the drone and its operator.

Wolfpack

DETECTION RANGE

Up to 10 km*

FREQUENCY BANDS

433 MHz, 868 MHz, 915 MHz, 1.2 GHz

(Omnidirectional)

2.4 GHz, 5.2 GHz, 5.8 GHz

COVERAGE ANGLE (HORIZONTAL)

360

COVERAGE ANGLE (VERTICAL)

Dobermann

360

FREQUENCY BANDS

2.4 GHz, 5.2 GHz, 5.8 GHz & 1.6 GHz

(GNNS)

COVERAGE ANGLE (HORIZONTAL)

360

COVERAGE ANGLE (VERTICAL)

Depending on RF environment & line of sight.

CRITICAL

INFRASTRUCTURE

Dobermann

360

Wolfpack

WOLFPACK 210

is a cutting-edge networked RF sensor that functions

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

AIRPORT SAFETY

MULTI-LAYERED

PROTECTION

SITUATION

AWARENESS

INTEGRATION

As the incidents involving drones near airports increase

worldwide, airports are in need of dependable countermeasures

to prevent disruptions to flights, operations, and most

importantly, ensure public safety.

To address this challenge, a multi-layered airport protection

solution has been designed to provide airports with a defense

system that incorporates redundancy and robustness,

with multiple layers of detection, drone and pilot location,

verification, and various means of mitigation against drone

incursions that pose a threat to an airport’s daily operations

and the safety of human lives.

FIXED JAMMER GUN

Mounted directional Jammer

360 RF SENSOR

Wolfpack 210

SPOOFER MITIGATION

GNSS Manipulation Effector

EO/IR SENSOR

High Resolution camaras

3D RADAR

Drone detection Radar

CRITICAL

INFRASTRUCTURE

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

EO/IR

sensor

of handling a threat comprises of two important steps – Recognition

and Identification. MyDefence has integrated a number of different

Electro-Optical cameras, including Infra-Red sensors, to enhance

recognition and identification capabilities on day and night.

The advanced, electro-mechanical remotely operated modular

electro-optical system consists of continuous zoom and autofocus

features with a manual/ auto control gain. It enables the system use

of the EO/IR trackers to track the targets with visual contact, as well

as utilising the latest Artificial Intelligence (AI) tracking algorithms.

Thermal imaging as well as a sensitive daytime camera, provide

ON-VIF compliance. Installation can be done with standard indus-

try mounting options and the possibility of choosing lenses and

imaging capabilities according to specific requirements.

MyDefence user friendly, situational awareness software facilitates

easy integration with the high-resolution imaging for target iden-

tification. Specific preferred EO/IR sensors have already been inte-

grated; however, any other customer specific EO/IR camera may

be integrated as well.

The RF jamming system is an active soft-mitigation solution. The

Jammer Gun fixed installation enables operation managed by the

IRIS Situational Awareness system, slaving the directional jammer

in the direction of the threat discovered by different sensors.

The Jammer disrupts the communication link between the control-

ler and the drone and the navigation signals (GNSS) which causes

the drone to return home or land in its location (depending on

the fail-procedure of the drone). This solution provides coverage of

commercial drone frequencies and offering effective countering

of single or swarms of drones.

EO/IR sensor

Auto tracking capability

Manual / Auto control

Jammer Gun

Fixed

INTERNAL MODULATION

Pseudo Random Noise

POWER CONSUMPTION

192W

JAMMING DISTANCE

DIRECTIONAL ANTENNA

5 km

FREQUENCY BANDS

POWER AMPLIFICATION

428-437 Mhz 10w

868-928 Mhz 10w

1150-1300 Mhz 10w

1559-1610 Mhz 10w

2400-2500 Mhz 10w

5725-5850 Mhz 10w

CRITICAL

INFRASTRUCTURE

Fixed Jammer

Gun

After Detection of a drone, by RF sensors and/or Radars, the process

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

Spoofer

•

The Spoofer is an extremely effective means to mitigate malicious

use of drones.

Spoofing replaces the need to jam or cyber-hack data links,

focusing on GNSS signals only.

It is effective against all drones using GNSS, hence it effectively

mitigates swarms, multi-direction attacks, dark drones, manually

piloted drones, and 4G/5G drones.

TRANSMITTING GNSS ANTENNA

SITUATION

AWARENESS

INTEGRATION

•

No protocol reverse-engineering is required, no whitelisting -

works out of the box.

Effective both as a stand-alone or an integrated with MyDefence

detection and Situational Awareness systems.

Compact and lightweight, the same effector can be used in fixed

installations or portable.

Easy and rapid deployment, in various set-ups, ready to use in

5 minutes according to needed protection.

Different modes of mitigation – Divert / Holding pattern /

Geo-Fence, different levels of power output and transmitting

pattern (omni / directional) enables flexibility and control over

the effect.

RECEIVING GNSS ANTENNA

•

MIL-STD 810G compliant, Operational, Tested and Deployed

solution - Field proven effector.

SPOOFER EFFECTOR

Spoofer

EFFECTED CONSTALATIONS

GPS, Galileo, GLONASS, BeiDou

OPTIONAL FREQUENCIES

GNSS L1, L2, L5

MILITARY STANDARD

MIL-STD 810G

COEXISTENCE

Zero-emission on emergency

broadcasts, cell phone communication

VOLTAGE, POWER

28VDC Typical, 12-36 VDC

(MIL-STD-1275), 100W

DIMENSIONS

300mm x 300mm x 94mm

WEIGHT

7 Kg

(Depends on frequency options)

COOLING

Passive Cooling

INGRESS PROTECTION

IP67

OPERATING TEMPERATURE

-20 °C to +55 °C

CRITICAL

INFRASTRUCTURE

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

BORDER SECURITY

AGAINST MALICIOUS

UAV ACTIVITIES

SITUATION

AWARENESS

INTEGRATION

In this 21st century landscape, safeguarding international

borders against malicious UAV activities has become a pressing

concern for border control agencies worldwide.

MyDefence, a leading manufacturer of advanced border

security solutions, offers support to stakeholders by deploying

cutting-edge systems that encompass a diverse array of

sensors and mitigation measures along the delineated border.

This enables effective defense of the airspace, thwarting

unlawful and potentially harmful drone incursions with utmost

efficiency.

3D RADAR

3D Phased Array Radar

360 RF SENSOR

Wolfpack 210

EO/IR SENSOR

High Resolution camaras

RF SENSOR

Watchdog 202

BORDER

SECURITY

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

3D Radar

Integration

tions, from different manufacturers and models.

Specializing in Counter Drone detection, MyDefence integrated 3D

radars to create accurate drone location, whether for long or short

range, according to the customers’ needs, protection characteris-

tics and budget.

If you already have a radar as a part of your airborne threats detec-

tion system, we can enhance and improve it with RF detection and

different means of mitigation.

ary installations and create perimeter protection needed at specific

compounds such as prisons, military camps, airports etc.

WATCHDOG 202 has 90° coverage and intelligent signal analysis,

that enables accurate indication of the threat direction (DF - Direc-

tion Finding). Searching both control signals and video feeds from

drones, WATCHDOG 202 can identify the make, type, and model

of the target drone.

The information is displayed on the IRIS (GUI frontend) providing

an accurate situational awareness. Creating an array of networked

sensors enables coverage of larger perimeter, and the triangulation

created by combining detection of two or more sensors enables pin-

point drone location, to the level of exact coordinates of the threat.

Together with the true Sensor Fusion technology implemented in

IRIS, we provide an accurate threat picture, combining all sensor

inputs. With a simple configuration setup, WATCHDOG 202 can be

effortlessly integrated into an existing security infrastructure using

two cables only, via the plug and play interface or on a protocol level.

3D Radar

Choose and integrate any drone detection radar.

Watchdog 202

DETECTION RANGE

Up to 10 km*

FREQUENCY BANDS

2.4 GHz, 5.2 GHz, 5.8 GHz

COVERAGE ANGLE (HORIZONTAL)

COVERAGE ANGLE (VERTICAL)

Depending on RF Environment.

BORDER

SECURITY

Watchdog

202

MyDefence has vast experience and expertise with Radar integra-

WATCHDOG 202 is a networked RF sensor, used to protect station-

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

SITUATION

AWARENESS

INTEGRATION

IRIS is a cutting-edge platform that seamlessly integrates and

supports all MyDefence sensors, as well as a wide range of

third-party products. Its sleek, minimalist design and intuitive

user interface provide users with only the essential information

they need to respond to a drone threat effectively.

IRIS combines inputs from multiple sensors, enabling it

to detect, track, and neutralize potential drone threats. It

boasts a variety of built-in features that streamline the user’s

workload, such as automatic jamming when a drone breaches

a restricted zone and generating comprehensive reports on

drones operating in the monitored airspace.

At MyDefence, we prioritize user experience in our design

process. Our platform is built with simplicity in mind, and we

provide users with the flexibility to customize their display

settings by removing any extraneous information. Additionally,

all sensors can be effortlessly updated through IRIS, providing

complete oversight, and simplifying maintenance.

SITUATIONAL

AWARENESS

COMMAND AND

CONTROL

SITUATIONAL

AWARENESS

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

Iris

MyDefence is proud to present the core of our Counter UAS systems

– comprised of ARGOS as the Backend and IRIS at the Frontend.

ARGOS enables functionality and control of MyDefence cutting

edge RF sensors and Jammers as well as the operation of 3rd party

subsystems like Radars, EO/IR cameras, and different effectors for

mitigation. ARGOS performs the sensor fusion providing an accurate

threat picture, combining all sensor inputs.

IRIS is the Frontend, the User Interface, that brings all the relevant

data in a minimal and simple way to the system operator. IRIS pre-

sents Sensor Fusion output, a unified common operational picture

built from all sensors, that provides accurate Situational Awareness.

IRIS/ARGOS is compliant with Sapient and has been integrated

Medusa and other C2 systems.

With the simple interface of IRIS, the operator can easily define

alarm zones for perimeter protection, mount and operate the dif-

ferent sensors and means of mitigations.

MyDefence R&D department integrated sensors and effectors, to

create a variety of comprehensive enhanced solutions according

to the customers’ needs.

We also have the flexibility and capability to integrate our system

into other C2 / Situational Awareness systems.

Iris

SAPIENT COMPLIANT

MEDUSA INTEGRATION

MULTI SENSOR FUSION CAPABILITY

THIS ICON INDICATES THAT

ALL THE PRODUCTS CAN BE INTEGRATED

IN TO A SITUATION AWAERNESS SOFTWARE

SITUATIONAL

AWARENESS

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

FALCON

DRONE PILOT

LOCATOR

FALCON is an airborne detector, providing the operator

information about the location of the threatening drone

and drone pilot, beyond land-based sensors.

FALCON making it possible to mitigate the threat, by

apprehending the pilot, preventing both the active drone

threat and the next threat from occurring.

By flying above the ground obstacles, the FALCON will have

enhanced line of sight of the controller. When the controller

is detected, the signal is followed with the FALCON flying RF

sensor, and the drone’s camera is used to identify the threat.

FALCON makes it easier to search an area for the drone pilot,

as you are given the direction of the controller’s signal, while

having a camera visual feed from the drone carrying the

FALCON.

AIRBORN RF SENSOR

Falcon 200

DETECTION RANGE

Up to 10 km*

FREQUENCY BANDS

2.4 GHz, 5.2 GHz, 5.8 GHz

WEIGHT

300 g

DIMENSIONS

127 x 100 x 25 mm

COVERAGE ANGLE (HORIZONTAL)

COVERAGE ANGLE (VERTICAL)

Depending on RF Environment.

DRONE PILOT

LOCATOR

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

Application

Table

Wingman

103 & 105

Pitbull

100 & 101

Watchdog 150 & 250

Dobermann 150 & 151

Watchdog 202

Dobermann 120, 121 & 360

Wolfpack

210

Falcon

200

Wearable

Vehicle

Airborne

Perimeter Protection

Jammer Gun

Handheld

Jammer Gun

Fixed

EO/IR SENSOR

Camera

Radar

Spoofer

Wearable

Vehicle

Airborne

Perimeter Protection

APPLICATION

TABLE

FOU, Alm.del - 2022-23 (2. samling) - Bilag 136: Invitation til demonstration af antidrone løsninger hos MyDefence i Hjallerup tirsdag den 19/9-23, fra MyDefence A/S

COUNTER DRONE

TECHNOLOGY

DENMARK

MyDefence A/S

Bouet Møllevej 5

9400 Nørresundby

Denmark

[email protected]

www.mydefence.dk

USA

MyDefence LLC

1123 1st Ave N

St. Petersburg, FL 33705

USA

[email protected]

www.mydefence.us

WE DESIGN

DEVELOP

PRODUCE AND

DELIVER

Cage code US:

7WED1

Cage code DK:

R8034

EDITION

June 2023
