A Review of Battery Fires in Electric Vehicles
Peiyi Sun
1
, Roeland Bisschop
2
, Huichang Niu
3
, Xinyan Huang
1,*
*
1
Research Centre for Fire Engineering, Hong Kong Polytechnic University, Kowloon, Hong Kong
2
Department of Fire Research, RISE Research Institutes of Sweden, Borås, Sweden
3
Guangzhou Industrial Technology Research Institute, Chinese Academy of Sciences, Guangzhou,
Guangdong, China
Abstract:
Over the last decade, the electric vehicle (EV) has significantly changed the car industry globally,
driven by the fast development of Li-ion battery technology. However, the fire risk and hazard associated with
this type of high-energy battery has become a major safety concern for EVs. This review focuses on the latest
fire-safety issues of EVs related to thermal runaway and fire in Li-ion batteries. Thermal runaway or fire can
occur as a result of extreme abuse conditions that may be the result of the faulty operation or traffic accidents.
Failure of the battery may then be accompanied by the release of toxic gas, fire, jet flames, and explosion. This
paper is devoted to reviewing the battery fire in battery EVs, hybrid EVs, and electric buses to provide a
qualitative understanding of the fire risk and hazards associated with battery powered EVs. In addition,
important battery fire characteristics involved in various EV fire scenarios, obtained through testing, are
analysed. The tested peak heat release rate (PHHR in
kW)
varies with the energy capacity of LIBs (����
����
in
Wh)
crossing different scales as
���������������� = ��������
����.����
. For the full-scale EV fire test, limited data have revealed that the
����
heat release and hazard of an EV fire are comparable to that of a fossil-fuelled vehicle fire. Once the onboard
battery involved in fire, there is a greater difficulty in suppressing EV fires, because the burning battery pack
inside is inaccessible to externally applied suppressant and can re-ignite without sufficient cooling. As a result,
an excessive amount of suppression agent is needed to cool the battery, extinguish the fire, and prevent reignition.
By addressing these concerns, this review aims to aid researchers and industries working with batteries, EVs
and fire safety engineering, to encourage active research collaborations, and attract future research and
development on improving the overall safety of future EVs. Only then will society achieve the same comfort
level for EVs as they have for conventional vehicles.
Keywords:
Li-ion battery; Electric vehicle; Fire incidents; Fire tests; Heat release rate; Fire suppression
1. Introduction
The electric vehicle (EV) uses an electric motor and relies on electric power for propulsion. The term EV
usually refers to road vehicles, but more generally it may also include rail vehicles, surface and underwater
vessels, and aerospace applications. In this review, this term is restricted the road EVs that are fully or partially
powered by a Li-ion battery (LIB). Battery electric vehicles (BEVs) rely solely on electric energy whereas plug-
in hybrid electric vehicles (PHEVs), and hybrid electric vehicles (HEVs) can also be powered by an internal
combustion engine.
The EV was invented in the 1800s as a consequence of a series of breakthroughs concerning the battery and
the electric motor [1]. In the 1900s, there was a brief period in which EVs were in demand due to fuel shortages
and environmental crises [2]. However, the interest for EVs dropped after the 1930s, when oil and gasoline
became cheap and easily available, enabling petrol-driven vehicles to travel faster and further [3]. Today,
billions of internal combustion engine vehicles (ICEVs) vehicles are being driven, consuming about 87% of
*
Corresponding author: Xinyan Huang
Email:
[email protected]
1
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
petroleum or about 33% of our global energy [4]. However, limited natural energy resources, the increasing
world population, and global warming exacerbate people’s perception of energy vulnerability and the need for
more sustainable transport solutions.
Along with the rapid development of the LIB since the 1990s, EVs returned to the global stage in the 21
st
century. Today, EVs are not only a symbol of green transportation, but they also present extraordinary driving
performance [1,2]. However, compared to the ICEVs which has seen continuous use and development over the
last century, EVs are still far from mature, especially when it comes to their perceived fire safety. This safety
concern stands in the way of the EV becoming the dominating transportation system [5,6].
The introduction of EVs and fire incidents involving them have attracted considerable media attention.
Table 1
lists a selection of EV fire incidents that happened in 2018, and
Figure 1
shows some photos of such
incidents. In general, most of the EV fire accidents are caused by the thermal runaway of LIB. The common
causes of EV fires include the self-ignition (or spontaneous/auto ignition) in parked vehicles due to arson or
sustained abuse, for example, fire during the charging process, self-ignition while in driving, and fire after the
traffic accident such as the high-speed collision [7]. Therefore, the propensity of self-ignition during the normal
charging, parking and driving conditions, due to the thermal runaway of LIB, makes the EV fire unique and
very different from fires in ICEVs.
Table 1.
The list of selective EV fire accidents occurred in 2018
Date
Jan
[8]
15 Mar
[9]
18 Mar
[10]
23 Mar
[7]
May
[11]
May
[11]
8 May
[12]
15 May
[13]
20 May
[11]
21 May
[11]
28 May
[11]
4 Jun
[11]
5 Jun
[11]
15 Jun
[14]
12 Dec
[15]
18 Dec
[16]
Location
Chongqing,
China
Bangkok,
Thailand
Catalonia,
Spain
California, USA
Anhui, China
Unknown
Florida, USA
Ticino,
Switzerland
Hangzhou,
China
Hubei, China
Shenzhen,
China
Shandong,
China
Beijing, China
California, USA
Gelderland,
Netherlands
California, USA
Vehicle
Tesla, BEV
Porsche Panamera,
PHEV
BMW i3 REx,
PHEV
Tesla Model X,
BEV
Other, BEV
Yiema, BEV
Tesla Model S,
BEV
Tesla, BEV
Jiangling, BEV
Zhong Tai, BEV
Other, BEV
Other, BEV
Other, BEV
Tesla Model S,
BEV
Jaguar I-Pace, BEV
Tesla Model S
Incident
Fire in the
parked vehicle
Fire while
being charged
Fire in the
parked vehicle
Post-crash fire
Fire while
being charged
Fire while
being charged
Post-crash fire
Post-crash fire
Fire while
being charged
Fire while
being driven
Fire while
being charged
Fire while
being driven
Fire while
being charged
Fire while
being driven
Fire in the
parked vehicle
Fire in the
parked vehicle
Fire initially extinguished quickly but
reignited during loading on tow truck and
once again at the tow yard.
Vehicle hit a barrier, turned over and burst
into flames.
Comments
Spontaneous ignition
Car’s charging cable plugged to socket in
the living room without built-in safety
systems, and fire spread to the house
Spontaneous ignition
Fire extinguished on the scene but
reignited twice at tow yard 5 days later
Self-ignited without traffic accident
Self-ignited without traffic accident
Fire extinguished on the scene without
reignition
The vehicle front was burned but no
involvement of the battery pack.
Fire started at workshop parking lot, and
the fire reignited twice.
2
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
The battery is not only the fuel to power the EV but also the major fuel to feed the EV fire, similar to
gasoline or diesel being the major fuel to feed ICEV fires. The mechanisms of battery thermal runaway, as well
as, the battery fire phenomena, risks, and hazards have been reviewed in [17–20]. These reviews emphasized
the safety characteristics of battery material and chemistry and summarized recent scientific understandings of
battery fire dynamics. However, the overall fire risk and hazards of EV are still poorly understood. Fire tests on
large-scale EV battery packs and full-scale EVs are expensive and rarely published. With the expansion of the
EV market, EV ownership is constantly increasing. Meanwhile, the energy density of LIBs continues to increase
[21], despite unsolved fire-safety issues. As a result, the probability of EVs fire accidents will increase. This
paper reviews these fire risks as well as accidents involving EVs, that are powered by the battery, especially the
LIB. The limited large-scale fire tests of EV and the corresponding fire-protection strategies are also reviewed
in detail.

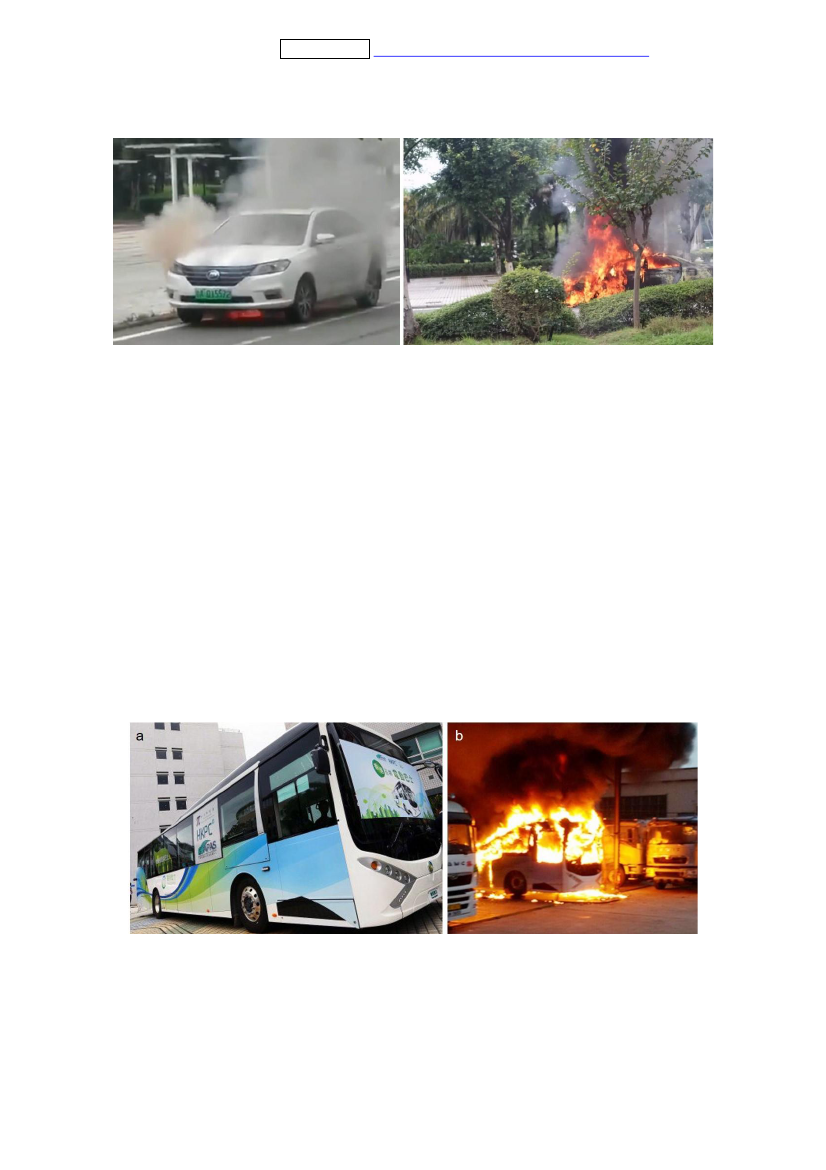

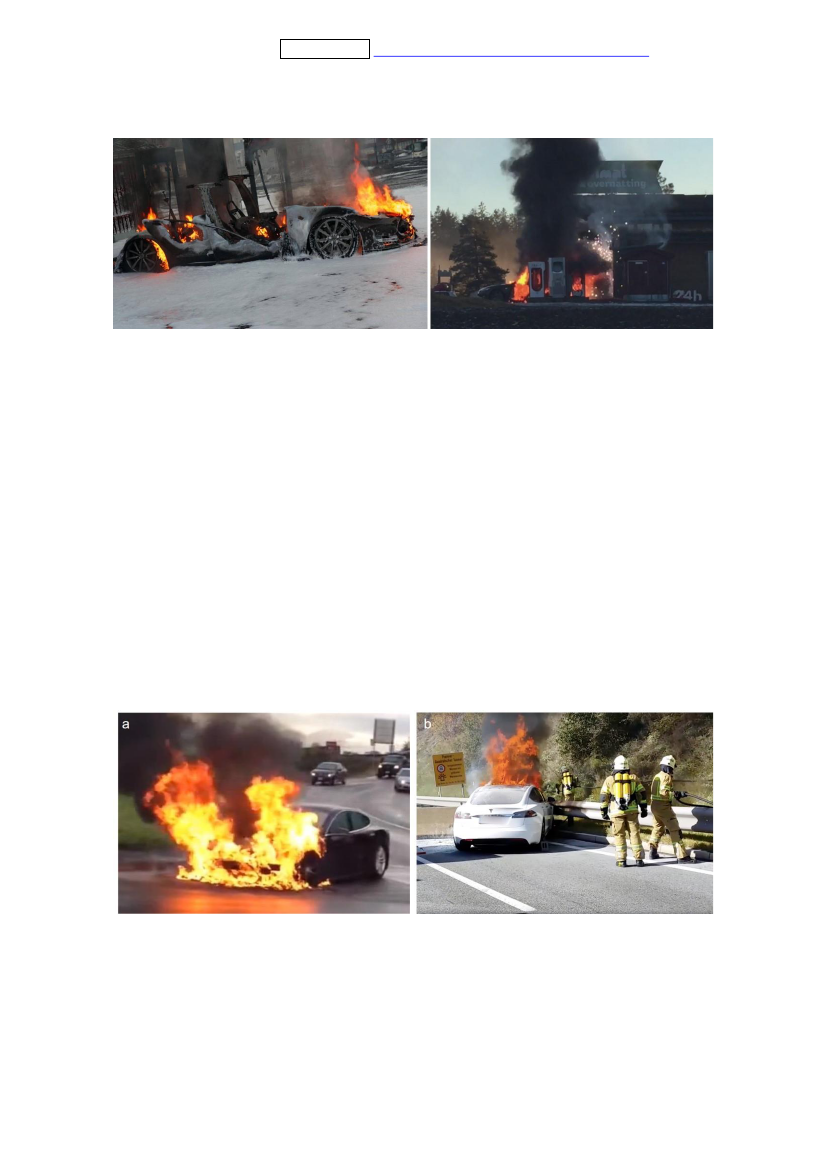

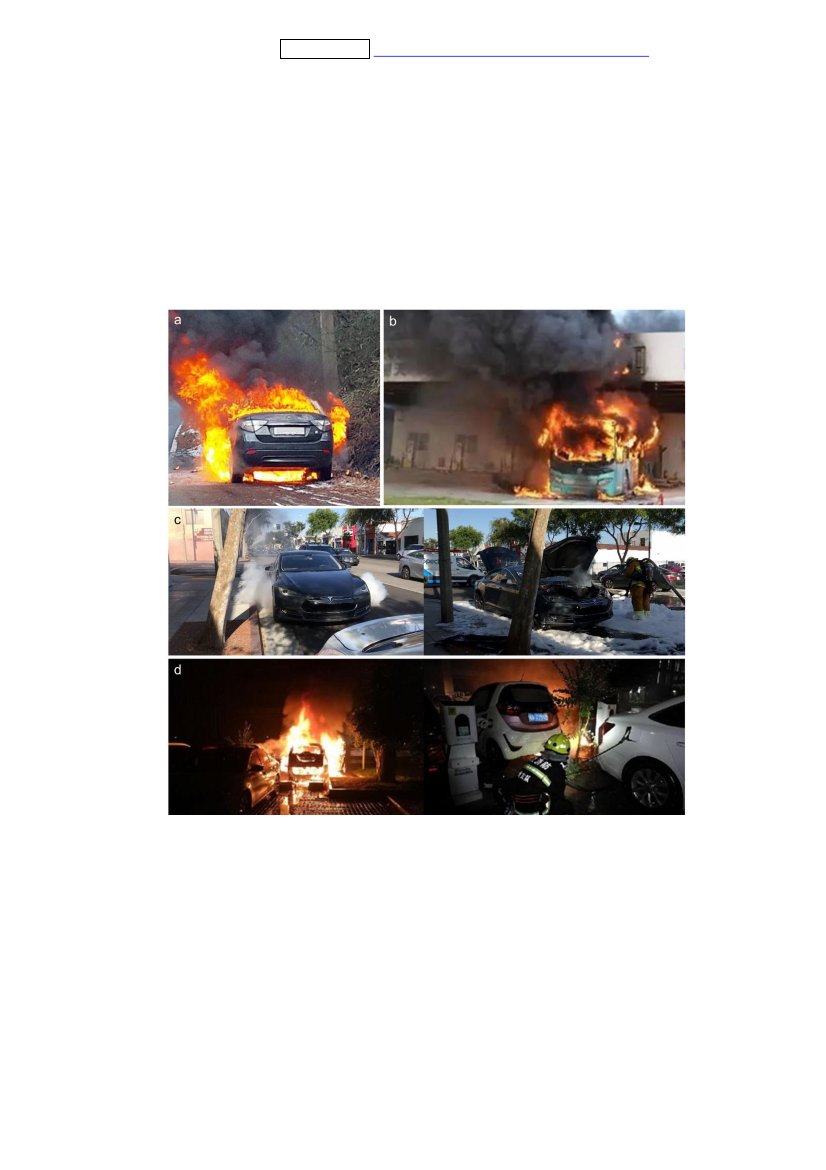

Figure 1.
Typical EV fire accidents in recent years: (a) a Renault-Samsung electric vehicle model ‘SM3.Z.E’
caught fire while driving on 15 January 2016 in Korea [22]; (b) a pure battery electric bus caught fire in a
charging station on 26 April 2015, Shenzhen, China, and this electric bus was not in charging when it caught
on fire [23]; (c) a Tesla Model S released smokes while being driven on 15 June 2018 in California, USA, and
the fire was extinguished by injecting 1135-L water and foam [14]; and (d) the EV fire accident happened in a
parking lot on 20 May 2018, Hangzhou, China [24].
1.1.
The Growing Demand for Electric Vehicles
According to McKinsey’s Electric Vehicle Index, EV sales have been growing dramatically every year
since 2010 (Figure
2)
[25]. The market scale of EVs has also expanded from negligible before 2010 to 1.3% of
all newly sold vehicles in 2017. Today the volume of new EVs sold surpasses one million units. BEVs make up
66% of this total. The growth rate of BEV sales has mostly been faster than that for PHEVs. Therefore, BEVs
are more likely to further strengthen their position of being the dominant EV in the future [26]. Note however
3
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
that other trends may occur in markets other than that for road EVs.
The EV market has excellent performance in many countries and regions around the world. In 2018, China
led the market with a 48% market share followed by the European Union with 26% [27]. Although consumers
tend to be resistant to new technologies (“social” barriers) [28] and EVs are still less mature and reliable
(“technical” barriers) in terms of their lifespan, range, availability of charging stations, than petrol-driven
vehicles. Government subsidies, however, prove to be a great propellant in the EV market. In fact, government
policy plays an important role in EV sales and its trajectory in every major market. In addition, the continuous
reduction in the cost of the battery, as well as increasing battery performance and growing production volumes,
further promotes the EV market. As a result, EV battery pack costs are expected to decrease to US$ 150 per
kWh within 2020-2023 [29].

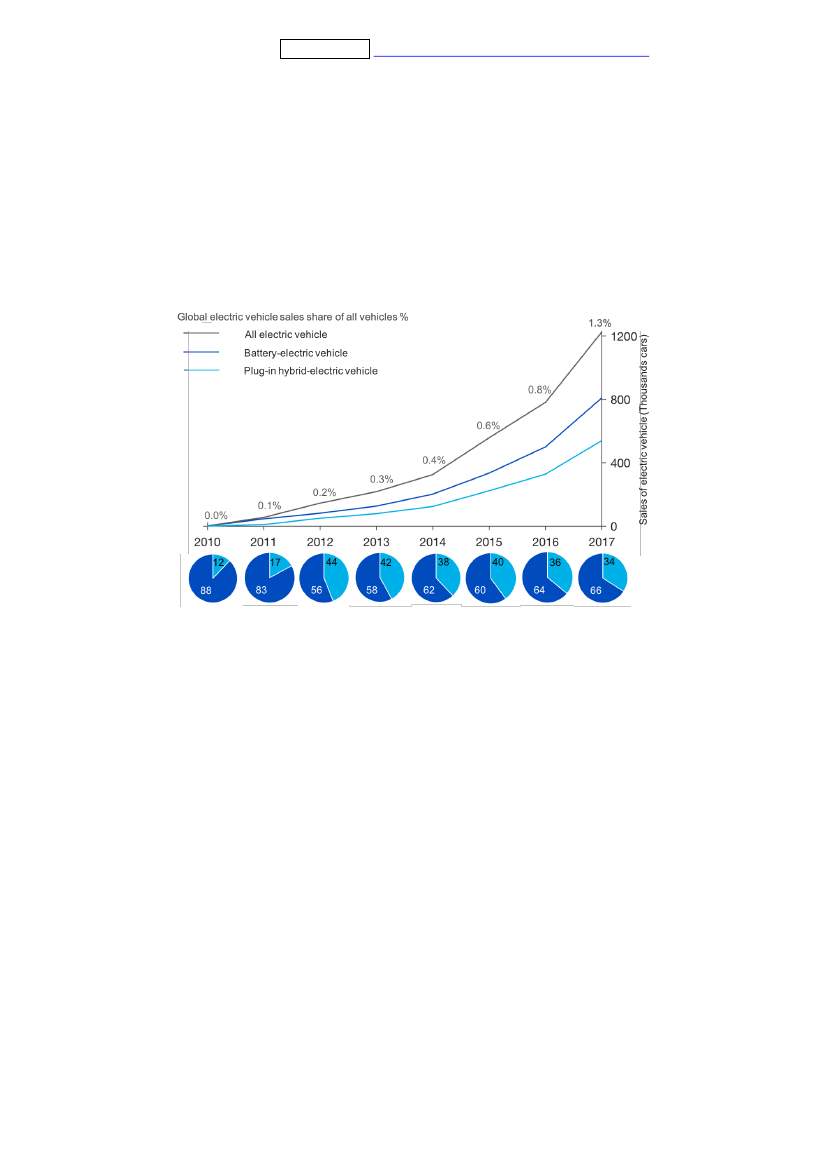

Figure 2.
Sales percentage of EV in the global vehicle market, and a worldwide number for two types of
battery electric vehicles from 2012 to 2017 by McKinsey [25].
With the stimulation of positive government policies, Europe Union leads the way in promoting the EV
market. In Norway, EVs count for 34.7% market share of new car sales in 2017 and 52% if hybrid vehicles are
included [30]. The incentives offered by Norway’s government include (1) BEVs are exempted from vehicle
registration tax; (2) BEVs are exempted from value-added tax; and (3) BEVs pay the lowest rate of the vehicle
license fee. Finally, BEVs have access to bus lanes and are exempted from road tolls [31]. France is second
behind Norway in the European continent in the registration of hybrid and electric passenger vehicles [32].
Based on an Electric Car Index prepared by OSV Ltd, France managed to overtake Norway, the leader position
in Europe EVs market. The government projected a €400-million R&D program for EVs. In 2017, 11,987 EV
charging points had been installed, and EVs sale accounts for 1.5% of the French personal vehicle market.
Germany has set itself the goal of becoming the lead market and provider for electric mobility by 2020 as part
of its long-term zero-emission mobility vision [33]. The German government launched several plans for EV
research and development (R&D). For example, $240M will be used on the batteries that power electric cars,
making domestic production a priority and ensure that German experts are trained in the technology.
In the USA, the domestic scale of EVs increases from 9,750 in 2011 to 762,000 in 2017 [29]. This
improvement is partly due to state policies and the decreasing battery cost [34]. The U.S. federal government
has initiated a tax credit for PEVs purchased since 2010. The tax credit ranges from $2,500 to $7,500 for each
vehicle based on its battery capacity and gross vehicle weight rating. Apart from financial incentives, other
priority, like high occupancy vehicle (HOV) lane exemptions and expedited license plate acquisitions, has been
offered. Extending electric vehicle policy incentives through 2020 enables sustained market growth [35].
4
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
In China, the government has been providing generous subsidies for EV purchasing since 2009 [36]. These
subsidies, which are part of the Electric Vehicle Subsidy Scheme of China, were updated in 2013 to scale with
the EV’s electric driving range rather than its battery capacity to promote both the quality and safety of EVs.
The target of China’s subsidy program is to boost the popularity of EVs and build national champions and e-
mobility ecosystems for the coming decades. It is predicted that China will have 200 million EVs on the road
by 2040 and cover 60% market share of total local passenger vehicle sales [29].
Japan had a long history with EVs due to its limited natural resources. The first Japan-manufactured EV,
the Nissan Tama, hit the road as early as 1947 [37]. Japan has been investing heavily in battery research and
was among the first countries to introduce PHEVs to the global market [38]. As a result, several of the most
popular EVs that are available today, such as the Nissan LEAF and Toyota Prius, are Japanese. Apart from
those above, many other countries around the globe provide substantial tax rebates for EV purchasing and
ownership. Examples of these are Singapore, the Netherlands, and Ireland [29].
1.2.
EV Batteries and their Fire Risk
Fire incidents are one of the risks that surround vehicles. With the number of EVs increasing, they have started
to become more visible in EVs. For most of the BEV and PHEV fire accidents, especially for self-ignition, the
fire starts in the battery power system (Figure
1).
In terms of propulsion, the battery capacity can be analogized
to the gasoline capacity in an ICEV’s fuel tank. Therefore, the EV fire is connected with the fire risk and hazard
associated with the battery cell and power system, as well as, the size and capacity of the battery pack. In general,
the greater the number of batteries and the greater the amount of energy they may contain, the greater the fire
risk for EV [18,39,40].

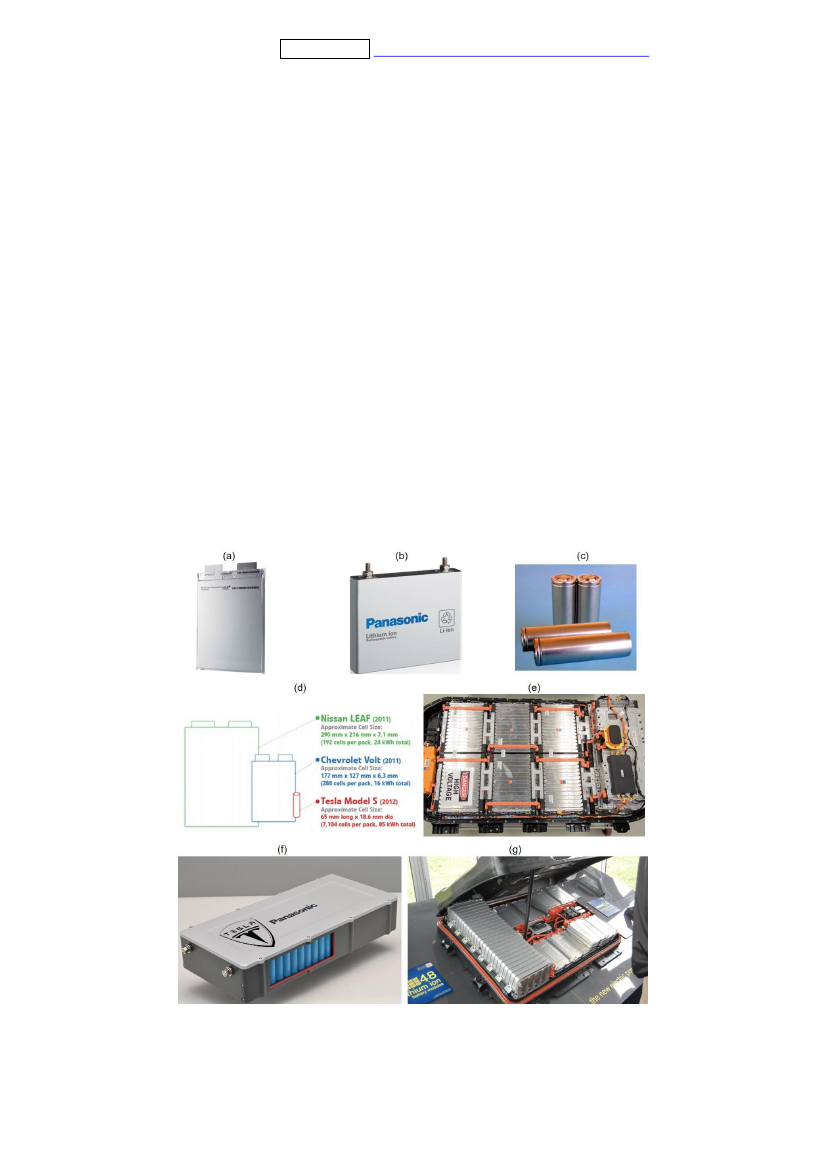

Figure 3.
Typical EV battery cells: (a) the pouch cell; (b) the prismatic cell; (c) the cylindrical cell; (d)
approximate battery cell size of popular EVs (e) the 60 kWh battery pack is fully assembled by LG Chem in
Korea, which employs 288 prismatic pouch cell; (f) Tesla’s battery module, which consists of hundreds of
cylindrical cells; (g) Nissan LEAF battery pack [41–45].
5
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
The number of batteries employed by EVs may be very large. This is necessary as the power consumed by
a regular EV is thousands of times greater and faster than that of an ordinary smartphone. EV batteries must
offer a lot of power (up to a hundred kW) and high energy capacity (up to tens of kWh). Simultaneously, they
meet significant challenges related to space limitations and weight restrictions while maintaining an affordable
price [46]. Generally, EV batteries are composed of cells, modules and a pack [47]. Battery cells, the basic unit
of a LIB, are connected in series or parallel to form a battery module. A frame is used to fix the cells together
and protect them from external shocks, heat, and vibration. The battery pack is the assembly that integrates the
modules within the pack infrastructure. This infrastructure includes structural components, wiring, cooling
loops, and power electronics [48]. Furthermore, several modules are installed with systems that manage power,
charging/discharging, and temperature [49]. These are typically referred to as the Battery Management System
(BMS). This condensed assembly enables the EV to store a lot of energy. However, this also makes it
challenging to manage temperatures inside the pack [50].
The properties of individual battery cells determine the driving performance of an EV. Conventional battery
technologies, such as the lead-acid, nickel-cadmium (NiCd), and nickel-metal hydride (NiMH) have all been
used in EVs. Despite posing a lower fire risk than LIBs, their energy density and capacity, as well as the rate of
charging and discharging, are much more limited. This makes them unsuitable for modern EVs. Since Dr
Goodenough invented the LIB in 1980, and Sony commercialized it in 1991, the LIB has been widely used in
all kinds of electrical devices, including EVs. Today, the LIB dominates the EV market and is expected to do
so in the next few decades [21,29]. The popularity of LIBs is primarily due to their high energy density and long
cycle lives compared with conventional battery technologies [51]. Additionally, a lower weight makes the LIB
most suitable for vehicles as it can promote transportation efficiency.
Based on the configuration and manufacturing process, there are three types: cylindrical cells, prismatic
cells, and pouch cells, as illustrated in
Figure 3.
All these three types of cells are used in real vehicles, and
Table 2
lists the basic parameters of three common battery cells. Typically, the capacity of LIB cells used in
EVs can vary from 3 to 300 Ah for different types and manufacturers. On the vehicle level, the typical energy
density is above 100 Wh/kg, as shown in
Table 3.
This energy is related to the chemistry and construction of
the LIB cell. For example, Tesla uses NCA (nickel, cobalt, and aluminium oxide) in the cylindrical 18650 cell
that delivers impressive specific energy of 3.4 Ah per cell or 248 Wh/kg. The highest energy capacity found in
passenger EVs is the Tesla Model S, which provides about 100 kWh. This energy capacity can offer a driving
range above 380 km on a single charge [52]. However, the hazard of an EV fire also increases with the greater
number and capacity of batteries (or fuel), as the potential fuel load also increases [18,39,53].
Table 2.
Basic parameters of three typical battery cells [54].
Manufacturer
Panasonic
Hitachi
Kokam
Configuration
Cylindrical
Prismatic
Pouch
Geometry
[mm]
18.5×65.3
148×91×26.5
462×327×15.8
Voltage
[V]
3.6
3.6
3.6
Capacity
[Ah]
3.2
28
240
Specific
Power [W/kg]
120
2300
360
Weight
[g]
48.5
720
4780
Table 3.
Battery pack information for selected BEV with a specific model and range test [26]
Brand
Nissan Leaf S (2017) [55]
Renault Zoe 40 (2017) [56]
BMW i3(2016) [57]
Tesla Model S (2017) [58]
Capacity
[kWh]
40
41
42.2
90
Cell density
[Wh/kg]
229
228
230
~250
Cell type
Pouch
Pouch
Prismatic
Cylindrical
18650
Range
[km]
243 (EPA)
400 (NEDC)
246 (EPA)
509 (NEDC)
6
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
Since the Li-ion battery became the dominant power source for EVs a decade ago, the fire risk and LIB has
become a significant safety issue. This is related to the increasing scale of deployment and energy density of
the battery pack. The word Lithium (as a chemical element) itself has questions of safety tagged to it [18,59,60].
When a Li-ion battery is exposed to an external impact and experienced extreme operating conditions, it can
break, eject sparks, flammable gases and toxic smokes which can be further ignited and lead to steady
combustion, jet flames or a gas explosion [21,61,62].
Although a regular battery system has a low probability of self-ignition [63,64], it is vulnerable to external
thermal, mechanical, and electrical impacts that may materialize during extreme operating conditions or
incidents. Comparatively, electrical impacts and extreme operating conditions are rare for most portable
electronic devices, such as the laptop and smartphone, but they are considered as the normal operating
conditions. In contrast, the operation condition is more severe for an EV battery considering the frequent
acceleration and deceleration in complex road and traffic conditions. Moreover, the battery capacity (or fuel
load) of EV is thousands of times greater than that of portable electronic devices, which means a more severe
fire hazard in the case of thermal runaway and ignition. On the other hand, however, the safety measures that
are included in the EV and battery pack design are more advanced, reducing the likeliness of (spontaneous)
failure. Therefore, it is inappropriate to assess the battery fire risk in EVs, based on the impression of battery
fire risk in portable electronic devices.
Thermal Impact:
Users expect to be able to operate their EV just like a convention internal-combustion
vehicle, i.e., even in extreme cold and hot environments. For example, EVs are expected to be useable in
California, where summer temperatures above 45°C may occur, or in the street of Norway and Canada with a
daily winter temperature below -5°C and occasionally below -15°C. Like humans, the battery performs best at
room temperatures (20~30°C). Extreme hot and cold temperatures are negative for the battery’s performance
and will shorten their lifespan (Figure
4).
In high-temperature conditions, some unwanted chemical reactions
can occur and result in overheated batteries [18,60]. With a poor thermal dispassion ability, it is then possible
to trigger a thermal runaway[18,63], which can lead to an EV fire in the end. In cold temperatures, the battery’s
internal resistance increases. This resistance can promote the growth of metallic dendrites [1] and also cause
additional heating effects to take place within the battery, which increases the chance for a battery fire to be
triggered [18,50,65].

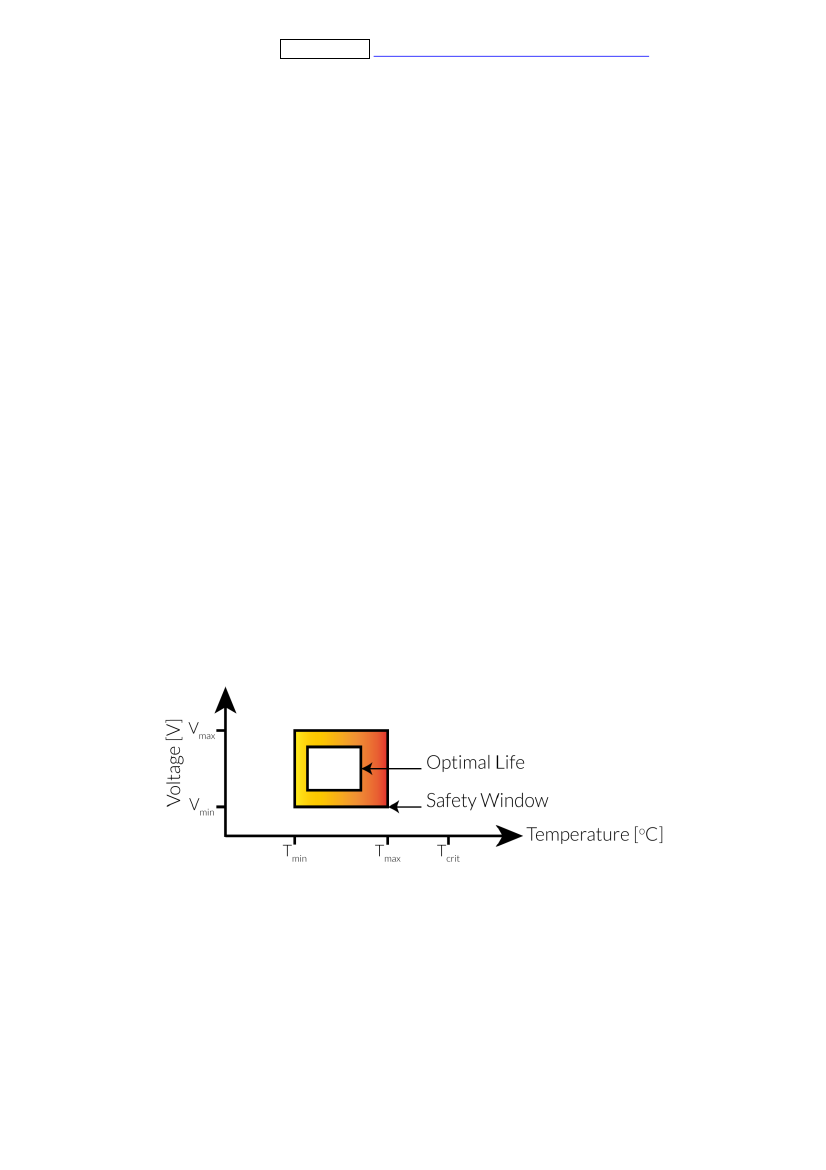

Figure 4.
LIBs should operate within a limited temperature and charge range to warrant optimal life and
safety [5]. Reprinted with permission.
Mechanical Impact:
Most commercial LIB cells are relatively fragile without the protection of an EV
structure and/or battery module and pack enclosure. Like any other conventional vehicle, the traffic accident is
an occurrence that may happen in the lifetime of an EV. Nevertheless, with the modern design of LIBs and EV,
the large majority of crashes will not cause harm to the battery [66,67]. LIB packs are usually integrated into
highly reinforced areas of the vehicle (see
Figure 5),
with the aim of eliminating the risk of being penetrated
during crash conditions. At high speeds, however, which some EVs are capable of reaching in a very short time
[52], even the highest level of protection is not enough to consistently prevent fire (see
Table 1).
7
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
Figure 5.

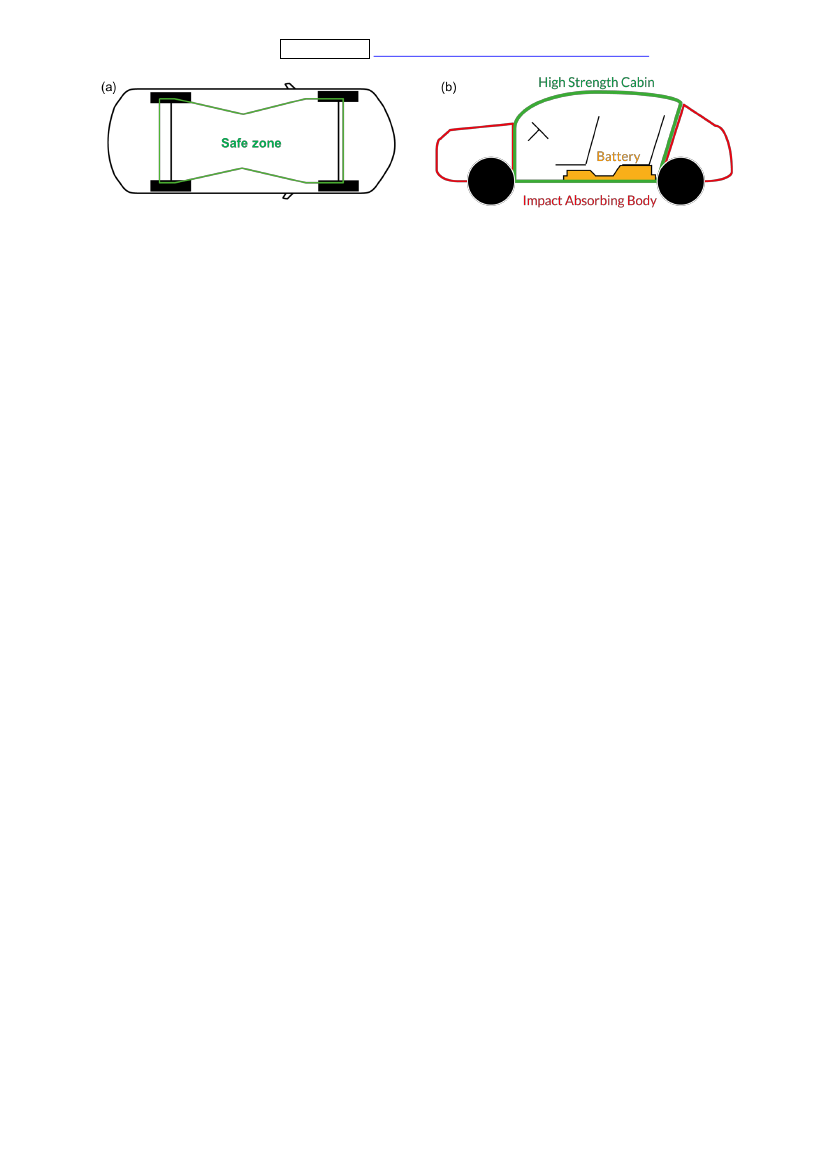

(a) LIBs are typically located inside the ‘safe-zone’ [66], and (b) battery layout for a Nissan Leaf [68].
Electrical Abuse:
The pursuit of fast charging and discharging combined with the high driving performance
for EVs have a negative effect on their fire risk [69,70]. LIBs are made to receive and store a pre-defined amount
of energy in a set amount of time. Exceeding these limits, which can be the result of charging too quickly or
overcharging, may degrade their performance, or result in premature failure. Usually, electrical abuse is
accompanied by Joule heating and internal chemical reactions. The former generates heat whereas the latter
may, in time, lead to an internal short circuit. Some EV fires may result from inappropriate operating conditions
and internal faults, such as the short circuit in the high voltage circuit, overcharging and overheating
environment, as shown in
Table 1
. However, for many EVs, most types of electrical abuse are not possible if
their BMS is designed properly and functions correctly [71]. Besides the failure of the battery cell, it is likely
that a large portion of the cases where “self-ignition” or “spontaneous ignition” incidents that have occurred are
related to poor manufacturing and design procedures and/or inadequate electronic control systems, BMS, and
power transmission control systems.
1.3.
Hazards of EV fires
Concerns associated with EV fires are mostly related to the utilization of a LIB. As EV manufacturers
pursue greater electric driving ranges and implement more LIBs, they also increase the potential heat released
from an EV when a fire occurs. This increase in fire risk is proportional to the increase in the mass and capacity
of the battery (or the fuel). During the burning of LIBs, the generation of flammable/explosive gases and toxic
smokes, such as hydrogen (H
2
), methane (CH
4
), carbon monoxide (CO), and hydrogen fluoride (HF), can pose
a threat to those involved [72,73]. The fire-safety problems relating to EVs are complicated and complex, which
need a comprehensive consideration. Nevertheless, a better understanding of these key fire parameters helps
provide a systematic evaluation of EV fire.
Thermal Runaway and Battery Fire:
EV fires can be caused by battery failure, and the most common
failure of LIB is the thermal runaway. Thermal runaway is a widely observed phenomenon in chimerical and
combustion processes, referring to an overheating event in which exothermic chain reactions take place and
overcome the cooling [53,74,75]. For the LIB, thermal runaway usually means a dramatically increasing battery
temperature (greater than 10°C/min [76]) or the activation of safety vent, which indicates that exothermic
thermochemical and electrochemical reactions have been triggered. The battery thermal runaway is usually
accompanied by the ejection of a large amount of dark smoke, hot sparks, and powerful jet-flames [72]. As this
process takes place within the individual cells, its risk potential increases when allowed the propagation of
thermal runaway or fire throughout a battery [18,77].
After thermal runaway has initiated, smoke is released from the safety valve or through cracks in the battery
shell. This smoke consists of a mixture of flammable and toxic gases. The flammable gases could be ignited by
nearby ignition sources such as fire, sparks, and electrical arcs or may even be self-ignited due to a poor cooling
condition. The resulting flame may then further heat the battery. If the gas-release rate out of the battery shell
is lower than the internal gas-generation rate, the battery cell may also burst. The safety valve can release some
of the accumulated gas that are typically generated during the pre-ignition thermal runaway process, but it may
not be able to prevent the cell from external heating, such as flame radiation or a burning battery nearby. In
addition, if the released gas is allowed to accumulate in an enclosed area and mix with surrounding oxygen, a
gas explosion may occur once a pilot source like a spark and flame is present [18,53].
8
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
Energy release from EV battery fire:
Both ICEV and EV contain a large quantity of flammable materials,
including the power system or fuel (liquid petroleum fuel or battery) and flammable plastic components [78,79].
For modern vehicles, the mass of plastics used in vehicle ranges from 100 to 200 kg [78], which is larger than
that of gasoline (less than 50 kg) [80]. As the heat of combustion for common plastics without fire retardants
(e.g. 38.4 MJ/kg for polyethylene and 27 MJ/kg for PS) is not very different from the gasoline (47 MJ/kg), the
total heat release from burning plastic components may have a major contribution to the vehicle fire, especially
if the gasoline tank is not full. Nevertheless, there is no major difference between ICEV and EV in terms of
plastic components, so that the major difference is their power system and the fuel (gasoline vs. battery).
As LIB includes many different combustible components, its heat of combustion depends on the chemistry,
packing, capacity, and state of charge (SOC). For example, for a 2.9 Ah (11 Wh) commercial pouch-type LIB,
the heat of combustion is found to be about 4 MJ/kg [81], while it is about 2 MJ/kg for a 18650 cylindrical
battery [18,39,40]. In general, the heat of combustion for LIB is one order of magnitude smaller than gasoline.
Nevertheless, because of the small (chemical or electrical) energy density of the battery, the weight of the EV
battery pack is at least one order of magnitude larger than gasoline for ICEV. Based on limited data of the
commercial LIBs of different scales, the ratio of energy (����
����
in Wh) to weight (����
����
in g) may be fit to
����
����
=
0.14����
����
, as summarized in
Figure 6(a).
Compared to the electrical energy stored in the battery, the thermochemical energy released from the battery
fire, including both the thermal runaway heat inside the battery (i.e., the internal heat) and flame sustained by
the flammable gases injected from the battery (i.e., the flame heat), is much higher [18,39,40]. As summarized
in
Figure 6(b),
the battery fire can release 5~10 times more energy of the stored electrical energy (or the kinetic
energy), depending on SOC.

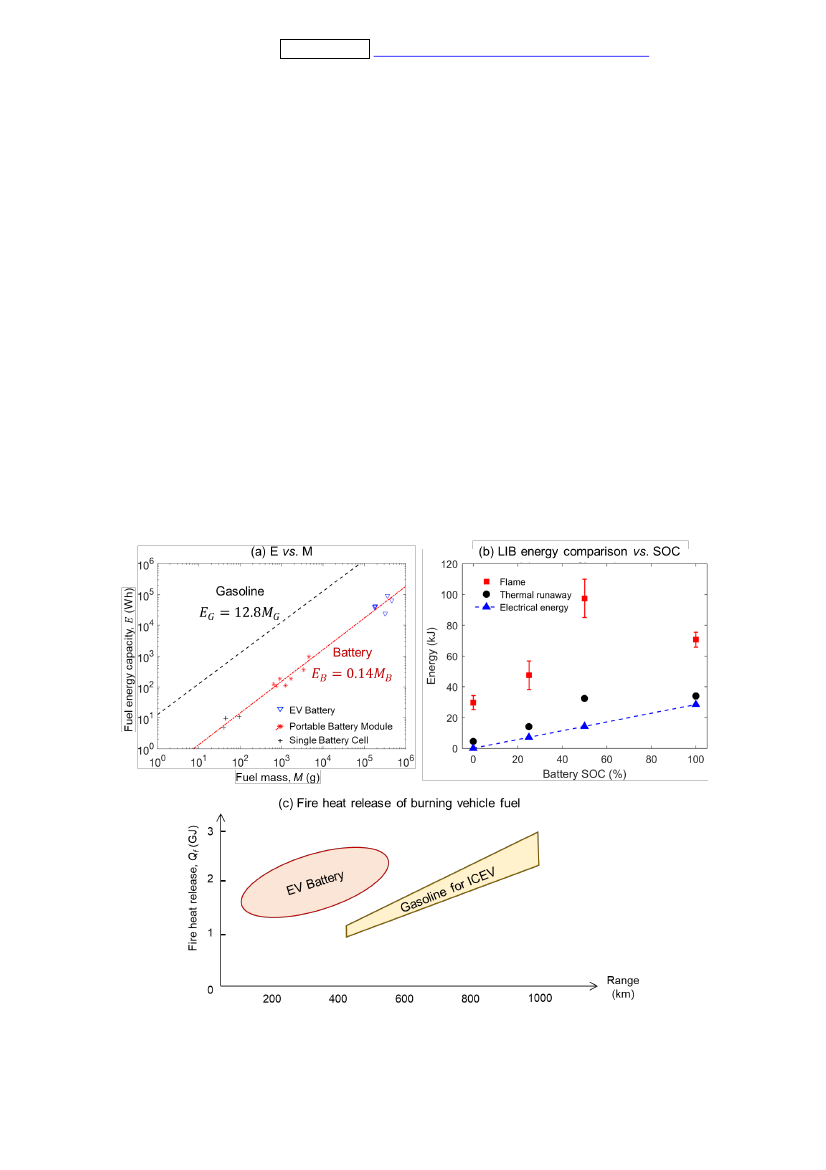

Figure 6.
(a) Stored energy and mass of common commercial LIBs of different scales, compared with gasoline,
where detailed data and references are listed in
Table 4,
(b) the comparison of flame heat from battery fire, internal
heat of thermal runaway, and the stored electrical energy of a 18650 NMC battery vs. SOC [40], and (c) fire heat
release of burning vehicle fuel vs. range.
9
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
According to US Department of Energy data for 2018 model vehicles [82], the light EV ranges from 100 to
550 km with a median of about 200 km, while the light gasoline ICEV has a minimum range of 400 km and a
median range of about 700 km, as shown in
Figure 6
(c). Assuming the heat of flaming combustion is seven
times its stored electrical energy, the total heat release from burning an EV battery pack of 90 kWh is
����
������������
= 90 kWh × 7 = 2.3 GJ
(1����)
The battery pack of 90 kWh may support a driving range of 400 km for a light EV.
For a better comparison, we choose a typical gasoline vehicle with a fuel economy of 7.3 L/100 km [80].
Then, with the same range of 400 km, the volume of gasoline is about 30 L, and the total heat release of burning
the gasoline can be estimated is
����
����
= 400 km × 7.3 L/100 km × 47 MJ/kg × 0.75 kg/L = 1
GJ
(1����)
which is about half of the EV battery pack. In other words, under the same range, the fuel load or the fire heat
release of the LIB pack is about twice that of a gasoline tank, indicating a larger fire hazard and requiring more
stringent risk-mitigating efforts.
It is worth noting that a gasoline vehicle can have a larger range (e.g. above 800 km) with a typical fuel
tank size of 45-65 L (i.e., 35-50 kg gasoline), while the amount of gasoline decreases with the driving distance.
In contrast, the total mass of EV fuel (LIBs) does not decrease along with the driving of EV, and the potential
heat release of burning LIB does not vary significantly in the SOC range of 20~100% (see
Figure 6a-b)
[39,40].
Moreover, compared to the total heat release, the heat release rate (HRR) of fire is a better indicator of the
intensity and hazard of fire.
Table 4
The energy capacity, PHRR, and mass for batteries of different scales and applications.
Battery & Fire Energy,
E
b
[Wh]
PHRR
[kW]
Mass [g]
Configuration
11
10
Single Battery
Cell
10
8
10
5
112
124
107
92
124
185
Portable Battery
Module
26
259
800
288
72
32
16
962
20.9 [81]
9.1 [83]
-
1.9 [85]
5.6 [86]
8.3 [86]
54.8 [87]
-
-
28.5 [87]
57 [87]
49.4 [88]
21[89]
145 [89]
70 [85]
39 [85]
14.3 [85]
6.6 [85]
3 [85]
442.6 [84]
44.3 [86]
40.2 [86]
1,228 [87]
639 [87]
734.8 [87]
-
-
1,675 [88]
-
-
-
-
-
-
-
4,560 [84]
45 [84]
95 [81]
pouch
cylinder
Cylinder 18650
cylinder
Cylinder 18650
Cylinder 18650
pouch
-
-
pouch
pouch
prismatic
pouch
pouch
cylinder
cylinder
cylinder
cylinder
cylinder
cylinder
10
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
185
16,000
12,000
18,000
40,000
EV Battery
41,000
42,200
90,000
24,200
64,000
24,000
EV Fire (battery
+ plastics)
16,500
23,500
500,000
1,000,000
battery power
station fire
2,000,000
3,000,000
4,000,000
5,000,000
37.8 [90]
300 [65]
1,515 [91]
1,651[91]
-
-
-
-
-
-
6,300 [94]
4,200 [94]
4,700 [95]
2,555 [96]
5,070 [96]
10,150 [96]
15,220 [96]
20,290 [96]
25,370 [96]
900 [90]
-
-
-
174,672 [55]
179,825 [56]
183,478 [57]
360,000 [57]
318,000 [92]
457,200 [93]
-
-
-
-
-
-
-
-
-
prismatic
prismatic
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Heat Release Rate (HRR):
The HRR (or the power of fire) is the most important parameter to characterize
a fire
[53]. Compared to the heat of combustion or the total heat release from fire, HRR is a better indicator of
fire intensity and hazard. HRR may be expressed as
������������ [�������� ] = ����∆����
����
= ����
����
����
′′
����∆����
����
̇
̇
(2)
where
����
is the burning rate [kg/s] that could be measured by the mass-loss rate during the experiment [95];
̇
∆����
����
is the effective heat of combustion [MJ/kg];
����
����
is the floor/surface area of fuel or fire [m
2
] which is the
floor of EV;
����
′′
is the burning flux [kg/m
2
-s];
����
is the combustion efficiency which depends on the oxygen
̇
supply; and
∆����
����
is the heat of combustion for EV batteries which varies with the type and SOC of LIB.
The fire HRR depends significantly on the arrangement of fuel and the scale of fire [53]. For example,
burning a 7.9 Wh (42 g) cylindrical LIB could produce a PHHR of 2 kW [40], while burning a small 11Wh (95
g) pouch-type LIB could produce a PHHR of 20 kW [81]. Although the energy and size of both LIBs are
comparable, the difference in PHHR could be ten times. On the other hand, for a 16,000 Wh EV battery that is
10
3
times more powerful than portable cells, its fire PHRR could be only 300 kW, that is, only 10
1
~10
2
times
larger [65]. Thus, it is inappropriate to assume the HHR of burning a battery pack of 100 LIBs is 100 times that
of burning one LIB, because it is unlikely that all available battery cells are ignited and burning simultaneously.
Based on the test data in the literature, the PHRRs of different LIBs crossing scales are summarized in

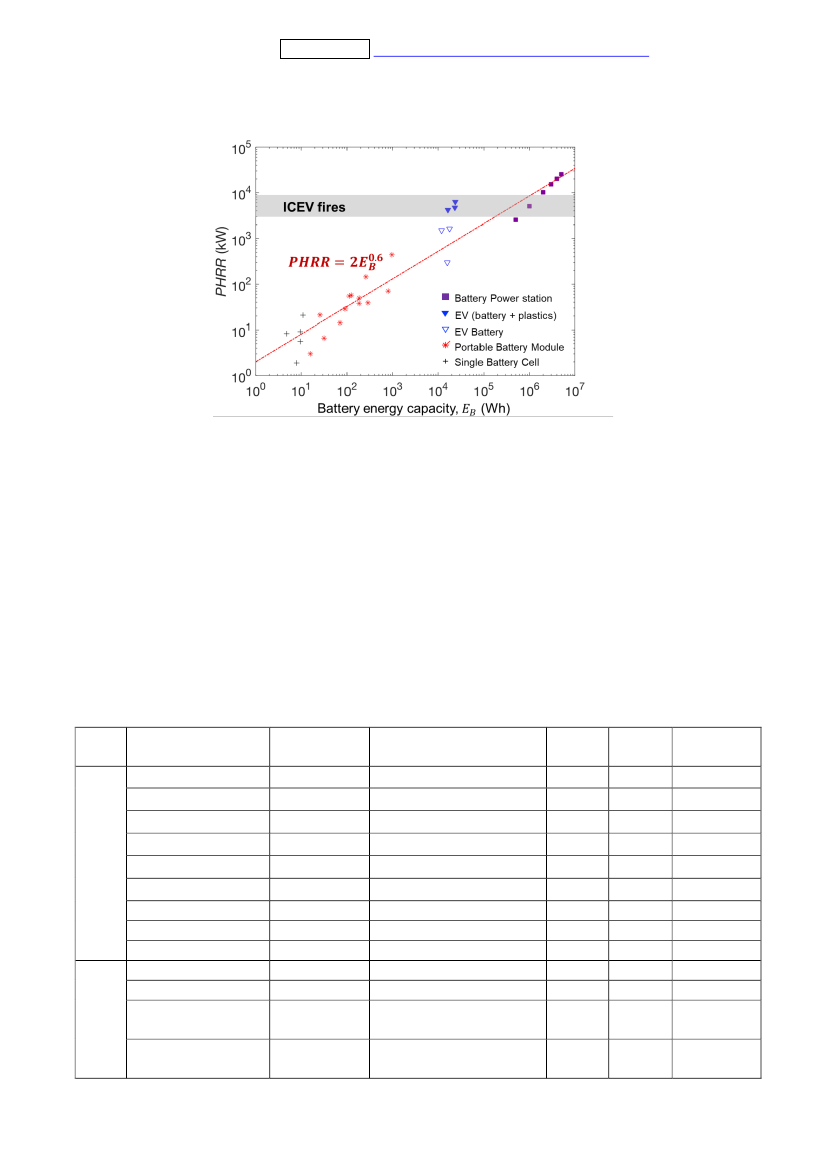

Figure 7
, which approximately follows
���������������� = ���� ����
����.����
����
(����)
where the units for PHRR and the battery energy (����
����
) are [kW] and [Wh], respectively. For a battery fire, its
HRR, total heat release, and toxic gases release are not only related to the chemical energy stored in the battery
Other important parameters for fire hazard include toxicity, smoke production, risk of explosion, etc.
11
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
[97], i.e., SOC of battery and size of the pack, but they also strongly depends on the arrangement of LIB cells
(fuel), the supply of air (oxygen), and (internal and external) cooling conditions.
Figure 7.
The peak heat release rate (PHHR) of burning Li-ion batteries of different scales, as well as, the
comparison between full-scale EV and ICEV fires, where detailed data and references are listed in
Table 4.
For the full-scale EV fire tests, the PHRR for EVs will be reached, once the LIB also gets involved in the
fire (i.e., ignition) [95,98], similar to other fire phenomena. Key fire characteristics related to burning ICEVs
and EVs are summarized in
Table 5
. These results can vary a lot depending on the amount of fuel in the fuel
tank, capacity of the battery pack, and the amount of polymer material on-board. Generally, data suggests that
EVs, which normally have battery packs of 20-40 kWh for BEVs and 1-20 kWh for PHEVs [5], will pose a fire
threat comparable to that for conventional vehicles. The standard full-scale EV and ICEV fire tests and the time
evolution of HRR are discussed more in
Section 3.1.
Nevertheless, whether this is true for high-performance
EVs and heavy EVs, which may have a battery capacity of up to 100 kWh and 660 kWh, respectively, with
respect to their ICEV counterparts, remains to be investigated.
Table 5.
List of the heat release rate (HRR) of EV in recent full-scale fire tests, where tPHRR and THRR are the time to
reach PHRR and total HRR, respectively.
Type
Vehicle
2011 Nissan Leaf [94]
Unknown [95]
Unknown [95]
Vehicle 1A [91]
BEV
Vehicle 1B [91]
Vehicle 2 [91]
2014 Vehicle A [99]
2013 Vehicle A [99]
2013 Vehicle B [99]
Small PHEV [91]
Large PHEV [91]
PHEV
2013 Vehicle C [99]
2014 Vehicle D [99]
Weight before
test [kg]
1520
1122
1501
unknown
unknown
unknown
1448
1475
1659
unknown
unknown
1466
1711
Battery or fuel capacity
24 kWh
16.5 kWh
23.5 kWh
100% SOC
85% SOC
100% SOC
‘Large’ LIB 100 % SOC
‘Large’ LIB 80 % SOC
‘Large’ LIB 100 % SOC
unknown
unknown
‘Small’ LIB 85% SOC &
full tank of gasoline
‘Medium’ LIB 100% SOC
& full tank of gasoline
PHRR
[MW]
6.3
4.2
4.7
6
6
7
6.0
5.9
6.9
6
8
6
7.9
tPHRR
[min.]
40
~25
~20
7
6
10
7
5.8
10.2
~7
7.5
7.5
8.3
4.9
4.7
THRR[GJ]
6.4
6.3
8.5
4.6
5.9
12
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
Unknown [95]
2003 Honda Fit [94]
ICEV
Unknown [95]
2015 Vehicle A [99]
2013 Vehicle B [99]
Unknown [91]
1128
1275
1404
1096
1344
unknown
Full tank of Diesel
10 L of gasoline
Full tank of Diesel
Full tank of gasoline
Full tank of gasoline
40-50 L gasoline
4.8
2.1
6.1
7.1
10.8
7-9
~20
35
~30
6
8
~7
6.9
4.3
10
3.3
5.0
Smoke and Toxicity:
When the battery temperature exceeds about 150°C there is a large risk for thermal
runaway. Once thermal runaway has been initiated, either the cell or its safety valve will burst and release toxic
gas. As thermal runaway propagates, more battery cells will fail to generate more smoke and toxic gases. These
toxic gases are, for example, hydrogen fluoride (HF), hydrogen cyanide (HCN), carbon monoxide (CO), etc
[72,81]. Inhalation of these gasses can result in dizziness, headache, coma, loss of consciousness or even death
[98]. The fluorine content inside the LIB cell may also form phosphorous oxyfluoride (POF
3
), which may be
more toxic than HF. The reaction formulas for HF and POF
3
production is demonstrated in the following
equations:
LiPF
6
LiF +PF
5
PF
5
+ H
2
O =POF
3
+ 2HF
LiPF
6
+ H
2
O→LiF + POF
3
+ 2HF
(4-1)
(4-2)
(4-3)
Ribière
et al.
[81] found that for burning a 95-g pouch LIB, the maximum emissions of CO, NO, SO
2
, HCl, and
HF were 1.77 g, 195 mg, 220 mg, 25 mg, and 757 mg, respectively. These gas emissions differ among EV
makers and types, where the chemistry and size of the LIB plays a role in potential gas emissions. Sturk et al.
found the rate of gas emissions was slow and in low quantities for LiFePO
4
(LFP) cells [100]. The concentration
of HF in the released species was however higher for LFP than for the NMC/LMO cells that emitted a larger
gas volume in a shorter time, whereas the total amount of HF released was similar. This indicates the emission
behavior of an electric bus, which employs LFP more frequently than passenger vehicles do, can be expected
to be different from that of a burning passenger EV.
Information on the amount of toxic gasses released in both ICEV and EV fires is very limited. The tests
performed by Lecocq
et al.
[61,95] give some insight into this matter, as shown in
Table 6
. The total amount of
HF released by EVs is found to be roughly double that measured for the considered ICEVs [95]. The detected
quantities of HF increase when the LIB starts to burn, which did not happen until 30 minutes after the fire was
started in another part of the vehicle. If the fire did initiate in the LIB, this contribution might be spotted sooner.
The risk of this emission, however, depends very much on the scenario of the incident. For outside scenarios,
HF will likely rise and quickly dissipate, whereas in enclosed spaces this may be problematic if gasses are not
evacuated. More full-scale tests are however needed to fully establish this. It is also recommended to apply a

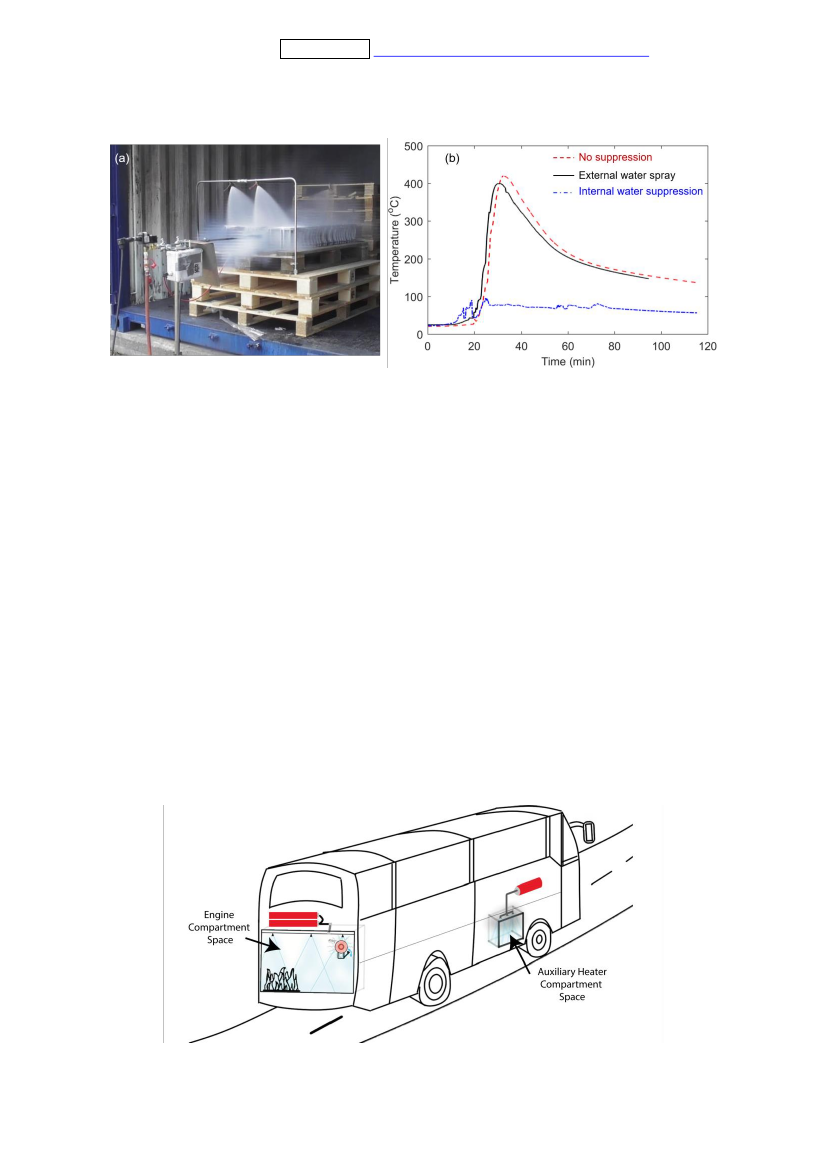

water spray jet for the removal of the toxic vapours and gases from EV fire. Acid gases such as HF, which are
released in ICEV, EV, and LIB fires, can be reduced in their concentrations by spraying water on them to wash
them out [1] [101,102]. Although the effectiveness of water spray has not been quantified, it is argued that this
method is used already when mitigating the effects of chemical fires, and thus may provide firefighters with a
useful tool to reduce the challenges of EV fire incidents in the field.
Table 6.
List of toxic gas emissions from full-scale EV fire tests [95].
Vehicle
Unknown BEV
Unknown ICEV
Unknown BEV
Unknown ICEV
Weight
1122
1128
1501
1404
Battery or fuel capacity
16.5 kWh
Full tank of Diesel
23.5 kWh
Full tank of Diesel
Total CO (kg)
10.4
12.0
11.7
15.7
Total HF (kg)
1.5
0.6
1.5
0.8
13
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
Compared to the fire test on single battery cells and battery packs (e.g. [18,39,81,103]), there is still
relatively little information on the actual behaviour of an EV in a fire. Full-scale fire tests are high in cost and
often restricted by trade secrets. Nevertheless, with the scientific understanding of small-scale LIB tests and the
accumulated database of EV fire accidents, reasonable forecasts could be made for their fire behaviour.
2. Lessons from past EV fire accidents involving battery
So far, EV fire accidents have been widely reported and subject to a large number of discussions throughout
various media. Although the total number of EV fires is still much smaller than that ICEV fires [5,104], this
could be mainly because the global market share of EV is still a few orders of magnitude smaller than ICEVs.
Based on the statistics, almost half of the ICE vehicle fires are caused by arson, and many others are ignited by
other existing fires [105]. In 2010, more than 26 cars were destroyed in an underground car park without a
sprinkler system in Haarlem, Netherlands. In 2018, at least 1,400 vehicles in a multi-storey car park were
destroyed in massive chain reaction fire at Liverpool, UK, which could be effectively stopped by a sprinkler
system [106]. In other words, the fire-safety and flammability of vehicle is only part of the reason for fire
accidents.
EV fire accidents are expected to follow a similar trend like those for ICEVs. Unfortunately, there is so far
no clear statistics for the distribution of different causes for EVs accidents, e.g. arson, ignited by other existing
fire, traffic accidents, and self-ignition. Note that there are a lot of self-ignited fire accidents for ICEVs, but the
majority happen to the
aged vehicles.
For both ICEV and EV, most self-ignited fire accidents start in their
power systems, that is, engine and battery, respectively. Because the majority of EVs in the world is still
relatively new, and the number of EVs still rapidly grows, it is not statistically possible to make a fair
comparison of fire risk between ICEV and EV.
When a fire event involves EVs, the battery is often referred to as the primary reason to start and prompt
the EV fire. There are, however, many other factors that can lead to this, e.g. failure of the charging system,
cable overload [107], ignition of other flammable materials, and arson [105]. These fire events that do occur in
EVs are relatively new and often complex. They can, however, be divided into several categories:
I. The EV catches fire while stationary (often referred to as spontaneous or self-ignition). This may be related
to extreme weather conditions, e.g. low/high temperatures or high humidity. It may even be related to
‘spontaneous’ internal cell failure. These failures can often be linked to abuse sustained by the LIB that
exceeded its safety window at some point in its life.
II. The EV catches fire while being charged. This failure may be related to the failure of the LIB due to
overcharging but is more commonly related to faulty or insecure charging stations and/or cables. This is
also the major cause of LIB fire accidents of other electrical devices, e.g. hoverboards and smartphones,
where battery management was found to be lacking.
III. The LIB of an EV is damaged as a result of a traffic accident, or other types of abuse. The damage done to
the battery pack is so severe that the LIB ignites during or directly after the crash. The likeliness of an EV
being involved in this kind of accidents will likely increase with the rising number of EVs in the street.
IV. The LIB of an EV has been subjected to thermal abuse and reignites after the initial fire had been dealt with.
V. The LIB and EV are ignited by external factors which may include, arson, wildland fires or a burning
structure in the vicinity of the vehicle.
2.1.
Typical Fire Accidents involving BEVs
Spontaneous Ignition:
This fire accident occurred to a BEV (Lifan 650) in Guangzhou, China on 31 August
2018 [108], as shown in
Figure 8.
The EV ignited spontaneously and was a complete loss as the fire could not
be extinguished in time. The Lifan 650 EV is a new model and, at the time of the incident, had only been on the
market for two months. The fire initiated at the bottom of the car. This is also where the battery pack was located.
14
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
During the burning process, the fire was accompanied by a popping sound. This sound may have been resulting
from bursting safety discs. In addition, there were several small explosions and the ejection of toxic black smoke.
Figure 8.
The fire scene of a Lifan 650 EV, where the fire started at the battery pack installed in the
vehicle chassis, and EV was completed destroyed by fire without effective fire suppression [108]
.
The following investigation revealed the possible reason of this EV fire. Investigation showed that the EV
had soaked in water for more than 2 hours after a heavy rainstorm which caused water to leak into the battery
pack. Afterward, when the owner drove the vehicle, this leakage may have caused short-circuit inside the battery
pack and thus causing thermal runaway and fire. There have been several other recorded cases where EVs
caught fire spontaneously without warning while being driven, after extreme weather or when parked (see
Table
1).
Unfortunately, follow-up reports stating the probable cause of these events are not published frequently.
On 14 December 2015, a brand-new electric bus was destroyed in a spontaneously ignited fire (
Figure 9
)
[109]. It was Hong Kong’s first locally designed electric bus which had a high energy efficiency of 0.78kWh/km
and a long range of 380 km after four hours charging. This electric bus had just passed a road test and was ready
for commercialization. The first witness notified to the police that thick black smoke was coming from the
parking site where the new electric bus was parked. After half an hour, firefighters managed to extinguish the
fire. The bus itself, however, was determined a complete loss. It was suspected that some technical support staff
compromised the water sealing of the battery casings during performance tuning and inspection. Subsequent
seepage of water into the compromised battery casings eventually led to short-circuiting and self-ignition.

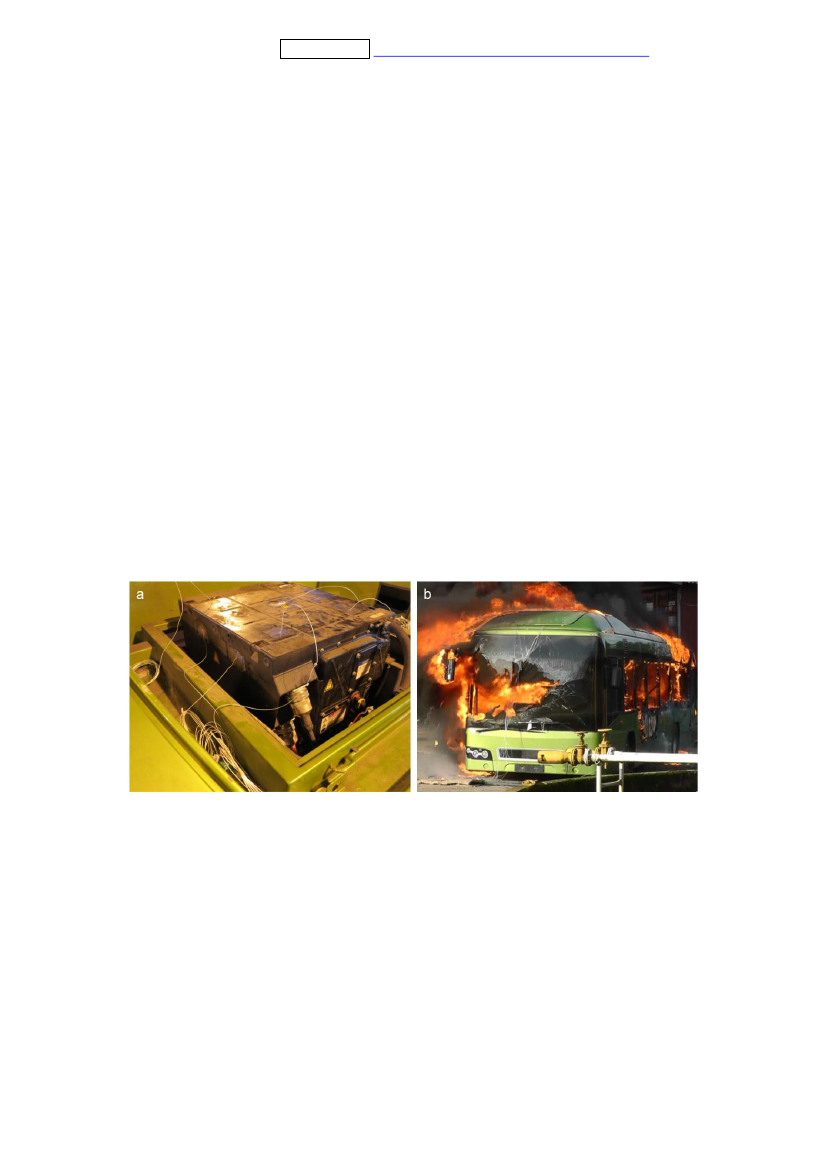

Figure 9.
Photos of (a) Hong Kong’s first locally designed electric bus, and (b) the fire scene of this electric
bus on 14 December 2015 [109].
Charging:
On 1 January 2016, a Tesla Model S caught fire during the charging process. The outcome of
this event is shown in
Figure 10
. According to news reports, the main cause of this incident was related to an
error in the vehicle’s onboard charging equipment. After the fire began in the charging equipment it then grew
and spread to the rest of the car, including the battery pack [110]. Once the battery pack was ignited, however,
15
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
it started to eject sparks and jet flames. Finally, any control of the fire was lost once breached into the passenger
compartment. To limit the EV fire hazard, it is important to contain the battery fire if it does get involved or
prevent it from being involved in any fire.
Figure 10.
The fire on a Tesla Model S while being charged at the supercharging station in Norway on 1
January 2016, where the fire also spread to the passenger compartment [110].
High-Speed Collision:
A Tesla Model S caught fire after colliding with road debris in the form of a large
metallic object [111]. The object penetrated the battery pack from underneath and induced the fire shown in
Figure 11
(a).
Fortunately, the EV alert system discovered the problem and instructed the driver to pull over to a
safe place. This gave the driver enough time to get out of the vehicle before the occurrence of fire. After this
event, Tesla reinforced their EVs with ballistic shields and deflectors to prevent road debris from causing any
damage to the contents of the battery pack.
Another Tesla Model S crashed on a concrete barrier at a high speed on the Arlberg Expressway, Austria
on 18 October 2017, as shown in
Figure 11(b).
The fire was initiated in the battery at the front of the vehicle
where it had hit the concrete wall [112]. The battery fire was reported to be extremely severe and produced a
lot of toxic gases. In total, 35 firefighters were involved in the fire extinguishing activity and used large amounts
of water to cool the battery down. The vehicle was then placed in quarantine for 48 hours to monitor it for
reignition. Note that a battery fire is not necessarily the outcome of extreme crash conditions. In South Jordan,
USA, an EV crashed into a heavy truck at 60 mph (97 km/h). There were no reports of fire despite the significant
damage resulting from the frontal impact [113].
Figure 11.
Fire in Tesla Model S (a) Tesla Model S caught fire after a collision near Seattle, USA [111]; and
(b) Tesla Model S crashed on a concrete construction barrier in Austria at high speed and started a fire [112].
Reignition:
Incidents involving EVs may also lead to secondary thermal events resulting from the overall
amount of damage done to the LIB [12]. As mentioned earlier, the crash and fire in Austria were followed by a
period in which the risk for this event was monitored. There are, namely cases in which reignition did occur
once or multiple times. An example of this is a Tesla Model S that crashed in Florida, USA, by impacting a wall
at 140 km/h. The impact led to the vehicle being engulfed in flames. After the fire had been subdued and the
16
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
vehicle was removed from the scene, it reignited. When the destroyed vehicle finally arrived at the tow yard, it
reignited once more. Other cases where EVs reignited after a crash were presented in
Table 1.
This is of concern
for post-crash handlers, who normally do not have the tools or training to handle such events safely.
External Factors:
There are not many reported cases of EVs catching fire due to external factors. They do
occur, however, as statistics provided by Tesla have shown. Their data estimates that approximately 15 % of
Tesla’s involved in fire incidents between 2012-2018, were caused by things unrelated to the vehicle, such as
structure fires, arson, etc [104].

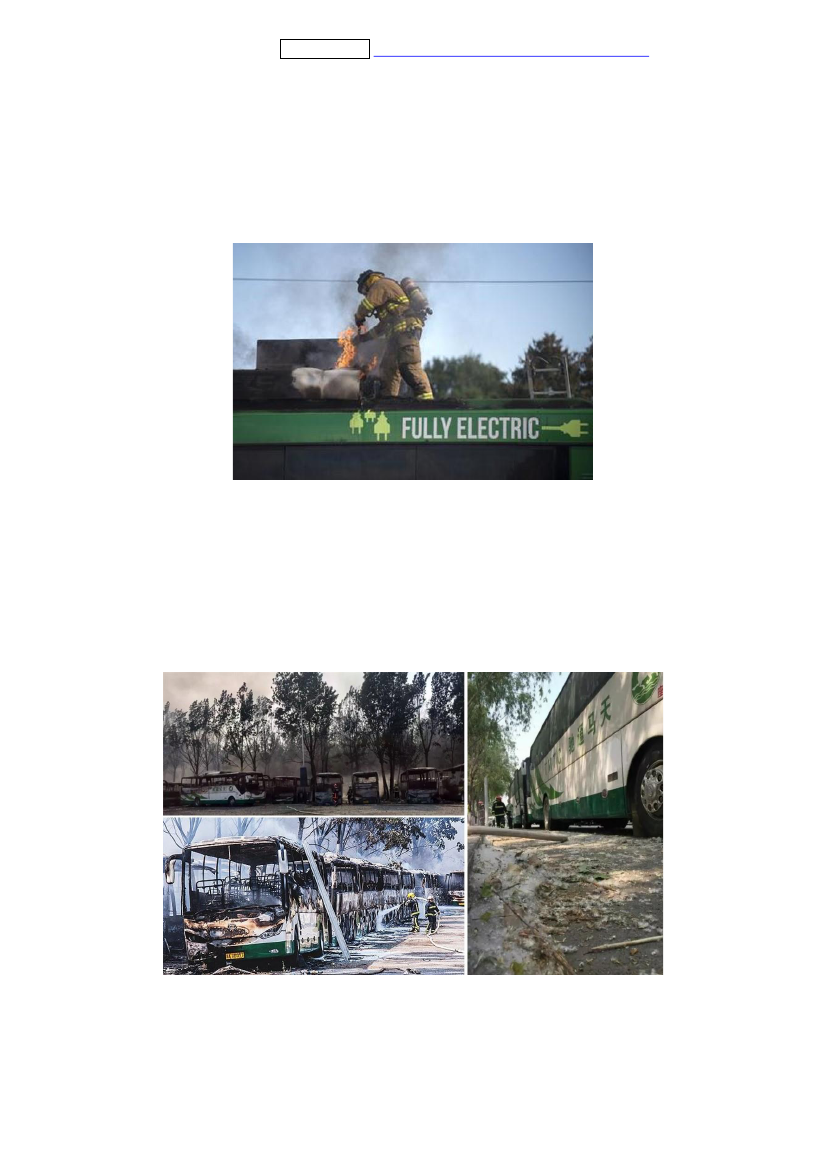

Figure 12.
A firefighter was suppressing the fire of the faulted battery on the top of the electric bus [114].
In September 2016 at the USA, an improperly crimped wire on the roof of the bus resulted in a faulty
electrical connection, which started to heat up nearby battery cells (
Figure 12
). Normally, the BMS would have
shut-down the battery when this happens [114]. In this case, however, the temperature monitoring function of
the BMS had already stopped working five days before the bus caught fire. Thus, it continued to heat the battery
until it failed. The investigation concluded that this electric bus had a flaw in the fire-safety design and further
suggested that there should be backup temperature sensors installed to supervise the battery conditions.
Figure 13.
A chain fire on electric buses in Beijing, China in 2017, where firefighters used an extra amount of
water to cool down buses to prevent the battery reignition, and piles of catkins was considered as the initial
fire source [115].
On 1 May 2017, a severe chain fire disaster happened in the parking lot of Crab Island Resort, Beijing,
China [116]. Nearly 80 electric buses and several private vehicles nearby were destroyed in this fire accident
17
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
(
Figure 13
). The following fire investigation revealed that fireworks used in a wedding celebration set fire to a
catkin pile located next to the electric busses. In the parking lot, there were poplar and willow catkins (or seeds)
pile up on the ground every spring without being properly disposed of. These catkins contain much bio-oil
which makes them easy to ignite and generates enough fuel to cause severe chain fire.
The electric buses involved in the event above used LFP battery cells. These have a relativity low energy
density, compared to other chemistries, and are often said to achieve a relatively higher fire safety
[117].
Typically, the LFP battery cell needs an ignition temperature of 350~500 °C. That is much higher than ~200 °C
for other LIBs [118]. However, such a high ignition temperature is still much lower than flame temperatures
(>1200 °C) and fire plume temperatures (>600 °C). If an existing fire is burning near the vehicle, internal
batteries could be heated up to the critical conditions of thermal runaway and start the chain fire considering the
fire spread is fundamentally a continuous ignition process [119]. Alternatively, and perhaps more likely, it first
ignited other combustible materials on the bus. The initial fire on catkin pile may have been easy to extinguish.
However, once other combustible materials and the battery pack became involved in the situation further
exacerbated, allowing the fire to become beyond control as it continued to spread.
2.2.
Fire Incidents involving HEVs and PHEVs
Hybrid electric vehicles use a combination of electricity and gasoline as the power source. There are two
types of hybrid vehicles. The original one could transfer the surplus chemical energy from fossil fuel via
combustion engine into the electric energy and storage them into the battery pack [120]. The plug-in hybrid
vehicle (PHEV) can also charge the electric power directly from the grid. Thus, consumers have the choice of
using either as a charging source at any time, as long as there is gas in the tank or a charging station [121]. In
other words, there are two types of the energy system and fuel in the hybrid vehicle, that is, the electric energy
system with battery and conventional combustion engine with fossil fuel. The exhaust system of these vehicles
may result in high temperatures, high enough to ignite the flammable fuels that are on-board.
Spontaneous Ignition:
On June 7, 2008, a Toyota Prius was destroyed as a result of being driven on the
freeway (
Figure 14
). This particular Toyota Prius was converted to a PHEV. Based on a report by fire
investigators report, the main reason could be attributed to the improper assembly of bolted joints with electrical
lugs inside the battery pack. The loose joints caused a high-resistance connection resulted in the overload which
triggered the overheating and thermal runaway of the battery cell, and ultimately started the fire [122].

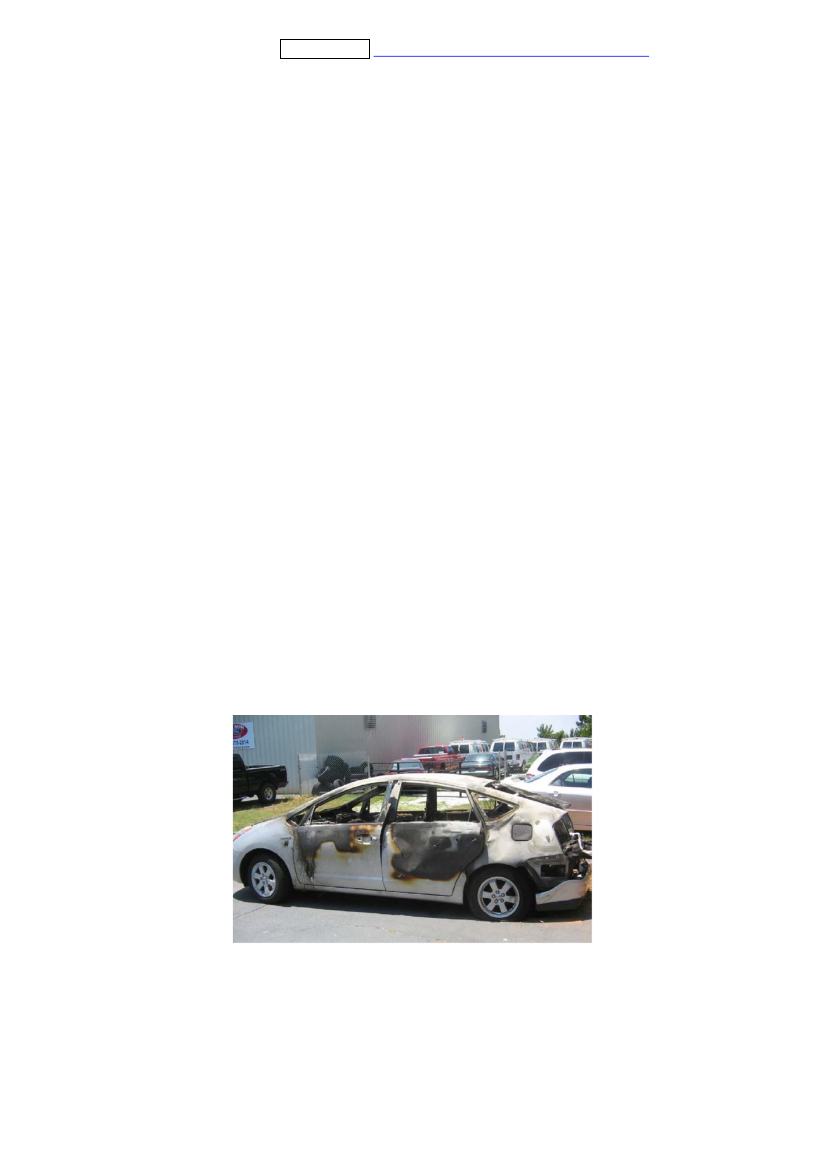

Figure 14.
A Toyota Prius converted to a plug-in hybrid electric vehicle by the owner and was damaged by
the battery fire. This fire accident resulted from the thermal runaway of the battery [122].
There was a hybrid electric bus fire accident on 16 March 2016 in Shenzhen, China (
Figure 15
). This public
transport bus self-ignited during operating in the street. The fire started at the rear of the bus, and most of the
bus was destroyed in the fire. Investigation showed that the self-ignition was initiated at the back of the carriage
near the combustion engine [123]. The battery pack installed on both side of the bus was intact. Thus, the official
18
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
report pointed out that the fire accident was not related to the battery or the battery management system. It is
worth noting from this fire accident that for a hybrid vehicle, the battery system is not the only reason caused a
fire. About 1% of all buses with internal combustion engines end up being involved in a fire. These fires most
commonly originate in the engine compartment as this is where flammable fuels and hot surfaces are within
close vicinity of each other. In warm climates, fires are also likely to occur in the wheel well area [3].

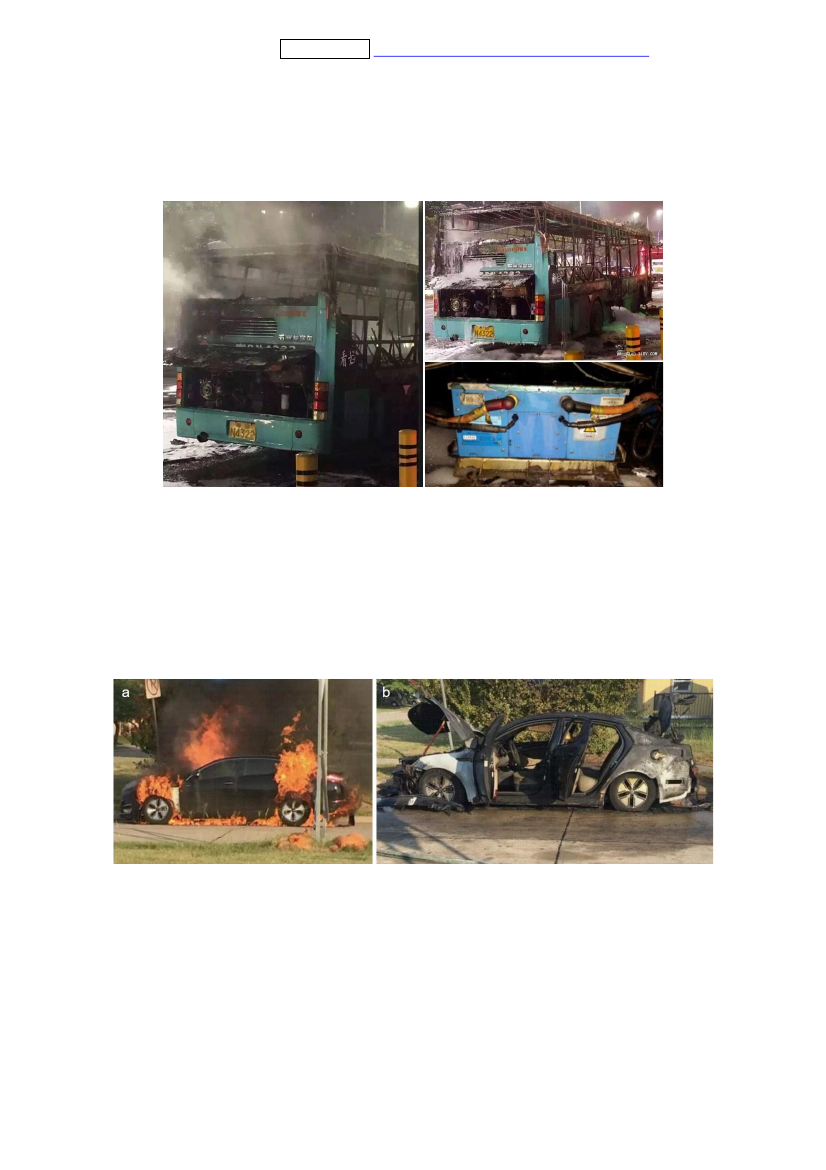

Figure 15.
The hybrid-electric bus fire accident on 16 March 2016 in Shenzhen, China, where the battery box
is intact after fire [124].
A Kia 2013 Optima Hybrid caught fire while driving [125]. The driver successfully escaped from the car,
despite the whole car being covered in flames 30 seconds after it started (
Figure 16
). Based on the inspection,
Kia company said the car did not experience engine failure, and the causes may be electrical in nature. However,
the exact cause of the fire could not be determined. Far from the isolated, as mentioned in the news article, many
other Kia vehicles are reported spontaneously erupted in flames for an unknown reason [125].
Figure 16.
An HEV fire accident are January 2018:(a) the Kia2013 Optima Hybrid was covered by flames;
(b) the ruined car after this fire incident [125].
Charging:
A Porsche Panamera caught fire while its battery was being charged at home [126]. This fire
accident happened on 16 March 2018 in Bangkok’s Taling Chan district. The owner recalled she drove the car
back home at around 10 pm, and she plugged the car in the home battery-recharging kit as per her routine. At 6
am an explosion shocked them. They found the car blazed. The fire damaged the owner’s luxury home as well
(
Figure 17
). The reason caused this fire is blamed to the improper installation and operation of the charging
system. According to the authorized distributor of Porsche in Thailand, the damaged car had been purchased
19
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
from an independent importer. Thus, the electrical cords, sockets and other equipment of the charging system
of vehicles imported by independent firms may not have matched the safety requirements for use in Thailand.

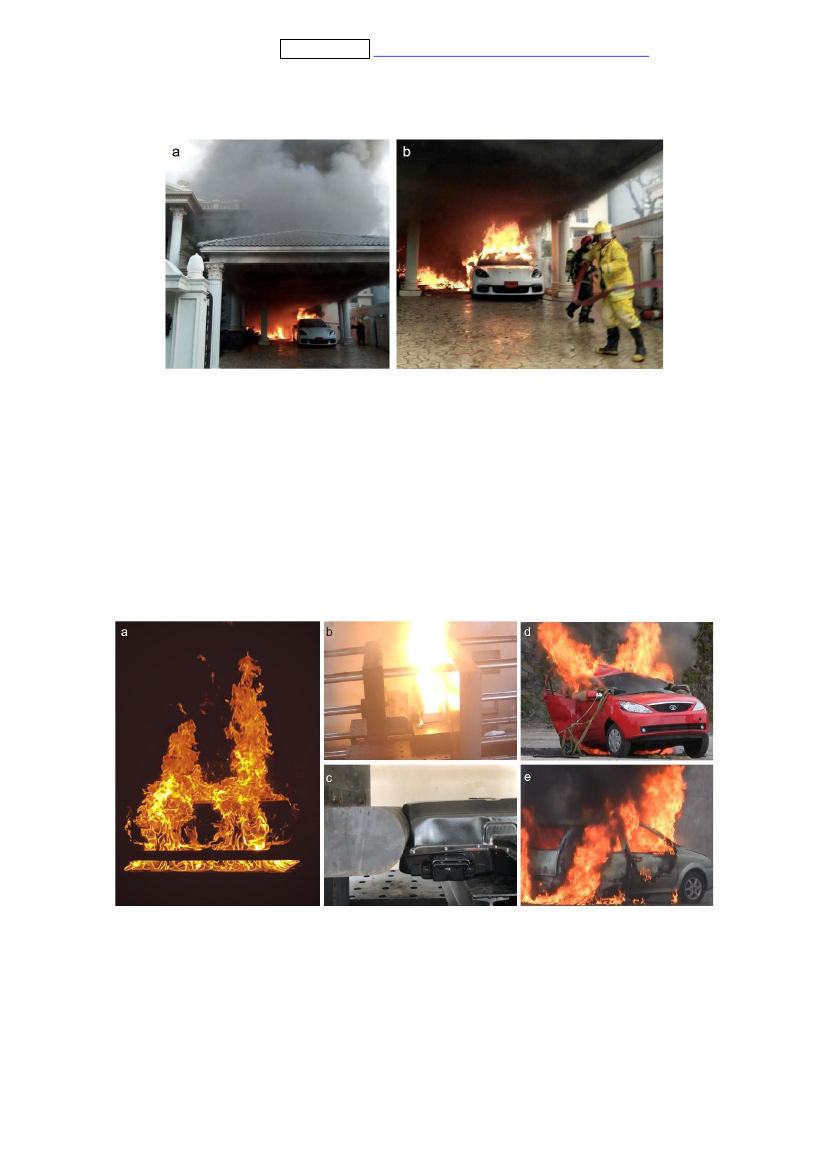

Figure 17.
The PHEV Porsche Panamera got on fire during charging on 16 March 2018 Thailand:(a) the fire
was intense and damaged the owner’s house; (b) firefighters tried to extinguish the fire using water [126].
3. Tests and Protection strategies for EV Fires
3.1.
Standard Tests for EV Fires
LIBs are required to pass numerous compulsory test standards (e.g. ISO 12405-3, ISO 6469-1, UN 38.3,
UN R100, SAE J2464, SAE J2929, IEC 62133, IEC 62660-2, IEC 62660-3, GB/T 31485) before they can be
used for EVs. This is however related to different requirements in different countries [127,128]. Generally, EV
battery tests can be categorized into the performance test and safety test [129]. The safety test provides insight
into their failure response, either internal or external causations, which will be discussed in this section.
Figure 18.
(a) Thermal abused test of an EV battery pack where the battery heated by the gasoline pool fire,
and (b-c) mechanical abuse test (Crush test) of the battery pack with a battery cell capacity of 40 Ah, 16.8 V,
and SOC=100% (unpublished tests by authors); and full-scale EV tests (d) drop test, and (e) ignited by an
external fire source [130].
A complete body of abuse tests was defined in the abuse test manual for EV and HEV applications [131].
There are three typical incentives for triggering thermal runaway of battery, that is, mechanical, thermal, and
electrical abuses. Thus, the abuse test manual, intended to simulate the actual use as well as these three abuse
20
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
conditions are usually far beyond normal safe operating limits.
Figure 18
shows a group of typical abuse tests
for EV battery packs and full-scale EVs. The test regulations cover four levels, that is, cell level, module level,
pack lever, and vehicle level. Ruiz et al. [132] and Tidblad [128] provided a comprehensive review of various
international standard and regulations and summarized the safety tests of Li-ion batteries in automotive
applications under various abusive environments.
Mechanical abused tests include a series of test methods such as the drop test, the vibration test, the
mechanical shock test, and the crush test. According to the international standards SAE J2464 [133] and SAE
J2929 [134], the scale for the drop test is only at the pack level. While the test level is wider for some national
regulations, such as UL 2580 [135], Freedom CAR [131] and QC/T 743 [131], which covers cell level, module
level, and pack level. Recently, in collaboration with Skien Fire Department, Greenland Energy and the
University College of Southeast Norway and RISE, a full-scale EV drop test was conducted, and a personal EV
with a 26 kWh Li-ion battery pack was dropped from a height of 20 m. As illustrated in
Figure 18(d),
approximately 6 minutes after the impact, the temperature of the battery increased quickly and started to burn.
After 9 minutes, the car was engulfed in the flames [130]. Vibration test is to verify the safety performance
under a mechanical load due to vibration, which a battery system will likely experience during the normal
operation of a vehicle. The vibration profile is given by the customer and verified to the vehicle application
[136]. In the crush test, the crush bar which used to generate the crushing force has different requirements based
on the test battery.
The thermal abuse test also consists of several test methods. For example, in SEA J2464 [137], the thermal
abuse test includes high temperature hazard test for Pack module level and above, thermal stability test for cell
level, cycling without thermal management for module and pack level and thermal shock cycling for cell level
or above and passive propagation resistance test for module or pack level. The complete battery pack is exposed
to an external fire in testing according to R100 Annex 8E [138]. Here the battery is exposed to external flames
for 2 minutes and then observed until the test object’s surface reaches ambient temperatures or has been
decreasing for at least 3 hours. If there is no evidence of explosion during this time, the test is successful. This
test is very similar to that normally performed on fuel tanks for conventional vehicles except for the long
observation period. Note however that for EVs the decision can be made to perform the test in full-scale level
(EV) or component level (LIB pack). Some published tests have shown that this test is not a major challenge
when performed on EV level as it usually takes 25-40 minutes before the LIB pack starts to burn. If the LIB
pack is considered by itself, this may drop to between 2-11 minutes [5].

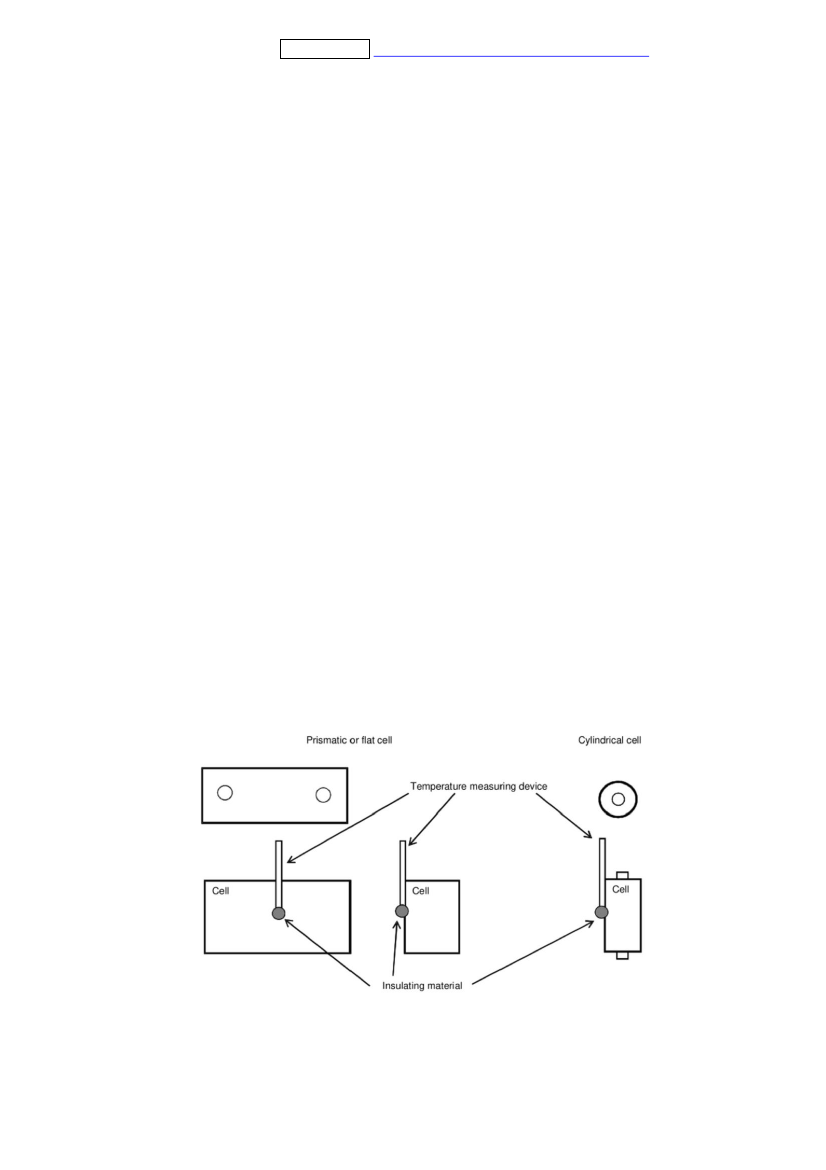

Figure 19.
Examples of temperature measurement plan for battery cells [136].
There are several main parameters that should be measured during tests. These are normally comprised of
voltage, current, and temperature. According to IEC 62660-2 [136], the resistance of the voltmeters used shall
21
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
be at least 1����Ω/V. The cell temperature shall be measured by use of the surface temperature measuring device.
The temperature should be measured at a location which most closely reflects the cell temperature. The
temperature may be measured at an additional appropriate location.
Figure 19
illustrates an example of
temperature measurement for different battery cells.
The failure of battery may have several different outcomes, e.g. venting, fire or even explosion. These
different hazards are classified by the European Council for Automotive Research and Development (EUCAR),
see
Table 7
. The responses of the battery to abusive conditions can be classified based on the hazard severity
level. An explosion is classified as the most severe event.
Except for abuse tests, the evaluation of chemical hazards is also considered by some standards. The
chemical-hazard test focuses on the emissions and flammability of toxic gases or smoke generated in the thermal
runaway process. Some standards, such as SAE J2464:2009 [137], SAE J2929:2013 [139], and UL 2580:2013
[135], provide detailed information on quantifying and determining toxicity and flammability of Li-ion battery
emissions. The measured emission composition should fall below certain degrees of concentrations.
Table 7.
Hazard severity level and descriptions
[137]
Description
Classification criteria and effect
No effect
No effect. No loss of functionality
Passive
No damage or hazard; reversible loss of function. Replacement or re-setting of
protection
the protection device is sufficient to restore normal functionality.
activated
No hazard but damage to RESS (rechargeable energy storage system);
Defect/Damage
irreversible loss of function. Replacement or repair.
Minor
Evidence of cell leakage or venting with RESS weight loss <50% of electrolyte
leakage/venting weight.
Major
Evidence of cell leakage or venting with RESS weight loss >50% of electrolyte
leakage/venting weight.
Loss of mechanical integrity of the RESS container, resulting in the release of
Rupture
contents. The kinetic energy of released material is not sufficient to cause
physical damage external to the RESS,
Ignition and sustained combustion of flammable gas or liquid (approximately
Fire or flame
more than one second), excluding sparks.
Very fast release of energy sufficient to cause pressure waves and/or projectiles
that may cause considerable structural and/or bodily damage, depending on the
Explosion
size of the RESS. The kinetic energy of flying debris from the RESS may be
sufficient to cause damage as well.
Hazard level
0
1
2
3
4
5
6
7
3.2.
Fire Risk Assessment
The battery fire always initiates from the thermal runaway. So far, most fundamental research has studied
the electrochemical reactions within batteries that are responsible for the thermal runaway [17,140,141].
Typically, these reactions represent the decomposition of the active material, the reaction between the anode
material and electrolyte, the collapse of the separator, and the decomposition of the cathode. Much applied
research from the industry and academia have investigated the thermal runaway of different batteries under
different operational conditions and various external impacts [81,142,143]. Wang
et.al
[18] gave a detailed
review of risk assessment of Lithium ion battery. Basically, these risks are assessed based on various battery
abused tests.
Although these past studies [144–146] have provided some basic understanding on battery fire risk and
supported the design of the thermal safety of Li-ion battery [147–150], there are still many unknowns about the
fire dynamics of large-scale EV batteries and behaviours of full-scale EV fire. On the other hand, it is also easy
to misinterpret the data of small-scale battery fire to evaluate the hazard of large-scale EV fire. For example,
22
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
the weight of EV (e.g. 2,250 kg for the Tesla Model S) is five orders of magnitude greater than that of a battery
cell (e.g. 45 g for a 18650 cell). Comparatively, the HRR of fire can only increase three orders of magnitude
from several kW for a battery cell [39], to several hundred kW for a single EV battery pack [73], and several
MWs for a full-scale EV fire [91]. So far, there is still a lack of research to scale up the risk and hazard of the
small-scale battery fire to full-scale EV fire. More importantly, because of the rapid development in battery and
EV, fire tests and R&D of fire-protection systems for EV still fall far behind.
As discussed above, the heat release rate (HRR) is the most important parameter to assess the fire hazard
[53]. As seen from Eq. (3), the power of EV fire can be estimated by using the HRR of the battery pack, given
the area of EV. According to the Interim Guidance for Electric and Hybrid-Electric Vehicles Equipped with
High Voltage Batteries offered by U.S. Department of Transportation [151], “In
the event of fire involving an
electric vehicle (EV) or hybrid-electric vehicle (HEV), we always assume the high voltage (HV) battery and
associated components are energized and fully charged.”
In other words, the SOC should be assumed as 100%,
which represents the worst fire scenario, for battery in risk assessment. Taking the EV powered by Lithium
Titanate (LTO) batteries as an example, the average heat flux (����̇
′′
) of LTO is approximately 2.3 MW/m
2
in a
fully charged stage [152]. This is comparable to 2~3 MW/m
2
for gasoline and other hydrocarbon liquid fuels of
the same burning area [53]. Considering the floor area of a regular EV is
����
��������
≈ 3
m
2
, the average fire HRR of
this kind of EV can be estimated as
������������ = ����
��������
����̇
′′
= 3
m
2
× 2.3
MW/m
2
≈ 7
MW
(5)
which generally agree with data summarized in
Table 5
. Therefore, for the hybrid vehicle with an LTO battery,
the HRR can be calculated in the same way, given the capacity of battery [152]. This calculated HRR could use
to estimate the required volume of water or other fire-suppression agents to extinguish the EV fire.
Macneil [91] conducted several full-scale tests of BEVs and PHEVs to measure the HRR and temperature
in EV fire. To start a fire, the EV was suspended above a propane gas burner, which had a fixed HRR of 2 MW.
Then, the HRR of EV fire was computed based on O
2
consumption calorimeter with the correction for CO and
soot production.
Figure 20
(a)
shows the measured HRR for three EV fire tests: (1) Type-A EV with battery SOC
of 100%, (2) Type-A EV with battery SOC of 85%, and (3) Type B EV with battery SOC of 100%.
Figure 20
(b)
shows the measured HRR of a small and a large PHEV. For a better comparison, the HRRs of EVs are compared
with baseline HRRs of internal combustion engine (ICE) vehicles that have different fuel tank capacities
between 40 L and 50 L.

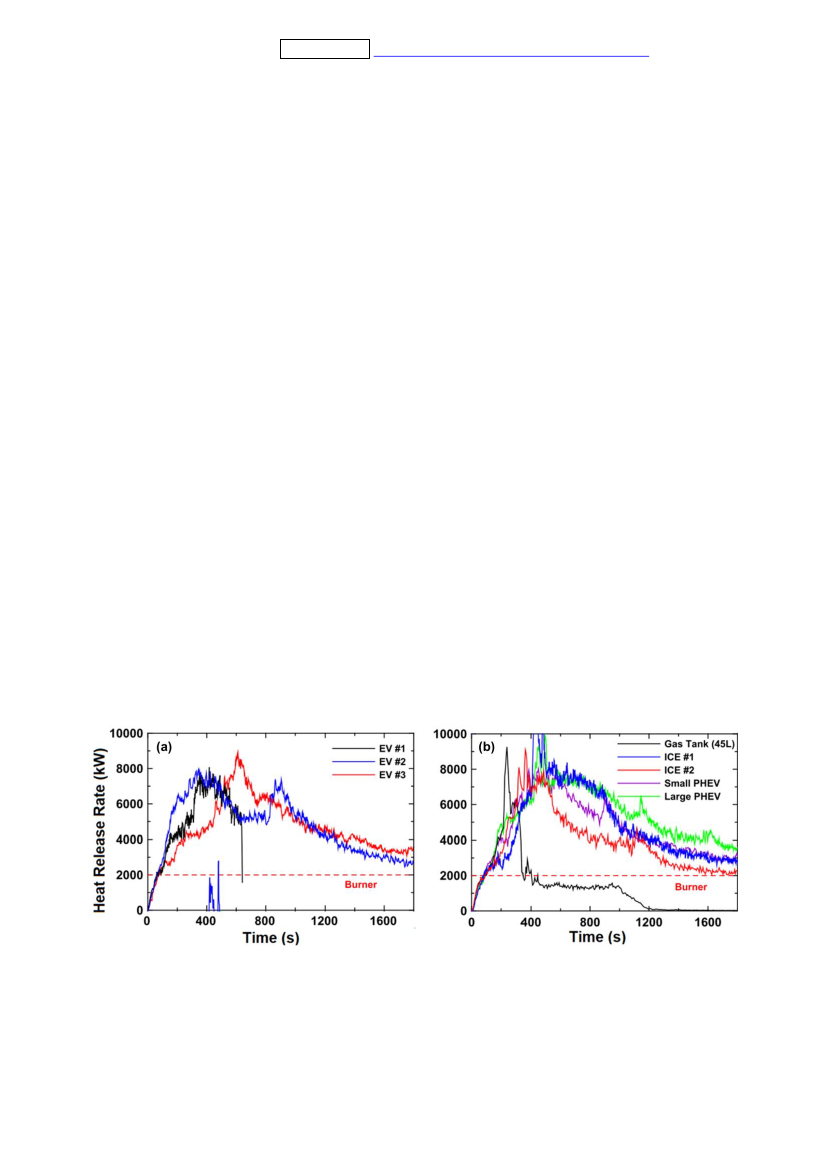

Figure 20.
Evolution of HRR versus time for test vehicles which were suspended over a propane burner of 2
MW: (a) three different pure battery EVs, and (b) a small PHEV and a large PHEV compared with the gas
tank and internal combustion engine (ICE) vehicles [91].
These tests show the HRR of an average value of 5~6 MW and a peak value of 8~9 MW, which is close to
the estimation of Eq. (3). In addition, the results also suggest that a fire in EV and PHEV has a similar HRR
that of the ICE vehicle fire as well as the gasoline pool fire. This was also observed in tests by Lecocq
et al.
23
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
[95]. In other words, the thermal hazard of EV fire is comparable to that of conventional vehicle fire accidents.
Both electric and gasoline-powered vehicles have the same risk of fire after a severe crash [151]. In fact, the
PHRR of EV is even lower than an ICE vehicle, which supports one opinion that pure BEV is safer than
conventional vehicles or hybrid vehicles [117]. However, more full-scale tests with different types of BEV and
PHEV are required to fully evaluate the EV fire hazards.
Another full-scale fire test was conducted on an electric-diesel hybrid bus by the SP Technical Research
Institute of Sweden in November 2014 (
Figure 21
) [153]. The fire was set to start in the engine compartment
and consumed the entire bus in the end. As the fire spread, the temperature increases of battery occurred 7
minutes after the temperature increase in the passenger compartment. Once the battery started to burn, the
already intense fire becomes more disastrous. Finally, the burning of battery slows down but remains robust for
a very long time, which is typical for a LFP battery fire.
Batteries typically need a certain period to accumulate enough energy to trigger the thermal runaway. This
makes EVs different from the gasoline of conventional vehicle that more easily reaches the fuel flammability
limit or flashpoint and can be ignited by a spark or flame. However, once the flame is attached to the battery or
explosion occurs, it is difficult to extinguish the battery fire. In the case of battery failure, there may not be an
apparent sign of the fire phenomenon at the beginning. The battery pack is namely enclosed and may be under
the hood or inside the EV body. Hence the fire will likely not be noticed when it is in an early developed stage,
while there is still plenty of time for occupants to leave the vehicle [154]. In order to offer more rescue time for
occupants, it is imperative to have early detection of battery failure and suppress the fire as early as possible.
Early detection and cooling may namely delay thermal propagation between battery cells as well as battery
modules. If successful, this reduces the risk for a fire spreading from a battery pack to its surroundings. One
sensible solution is to develop a reliable fire detection system for its powering system and an effective
extinguishing system for EV fire.
Figure 21.
A full-scale fire test of the electric-diesel hybrid bus (a) battery pack with thermocouples, and (b)
bus in fire at 32.5 min [153].
With the dramatically increased number of EVs, concerns are also rising that relate to dealing with LIBs and
EVs ready to be scrapped [155]. In Europe, only as few as 5% of Li-ion batteries are recycled [156]. The battery
wastes could contaminate our ecology and thus need to be treated carefully. Additionally, there are no doubt
potential fire risks during the collection, recycling, treatment and disposal of batteries and EVs. This risk is
linked to the SOC and capacity of the considered LIB. Cumulated battery bulks and EVs have a lower self-
ignition temperature or a higher self-ignition risk. Thus, the fire risk is likely to increase during the collection
of batteries and the disposal of EVs [63,64].
Environmental concerns also relate to fire-water run-off. Analysis of dissolved species in fire-water run-off
has been may contain elevated levels of fluoride and chloride [157]. These obtained values were found to be
above the allowable limits in Germany. As a result, the considered fire-water run-off had to be sent for
destruction at a wastewater treatment plant. One alternative is to lift the EV into a container before applying
24
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
suppressant [158]. One of the benefits of this approach is that fire-water run-off and toxic media are contained
in the enclosure, such that they do not spread to the surrounding environment and can more easily be sent for
destruction.
3.3.
Fire-Suppression and Firefighting Strategies for EVs
Compared to the abundant studies on the thermal runaway of battery and its protection strategies, there are much
fewer studies on the suppression of battery fire and fire-extinguishing technologies. Despite this, they have
identified that LIB fires are difficult to extinguish, requiring large quantities of suppressant, and may re-ignite
[159]. These re-igniting fires are difficult to deal with as they can occur at random and even after a significant
amount of time has passed since the primary thermal event. One way of ensuring there is no reignition is by
letting the vehicle or LIB pack burn out completely. When all the active material in the LIB pack is consumed,
the risk for reignition becomes much lower. In practice, however, this may not always be possible or the
appropriate approach, and suppression or extinguishment is needed.
NFPA 10-2018 categorizes fires into five different classes [160]. An EV does not directly fall into any of
these categories, yet its individual components do. They may be divided as follows:
A. Solid flammable materials in EV, e.g. seat foam and plastic interior decoration;
B. Flammable gases ejected from the battery after the thermal runaway, coolant, brake fluid, windshield
washer fluid, transmission fluid and liquid fuels stored in hybrid EVs;
C. Electrical devices and BMS;
D. Li metal particles released from charged Li-ion batteries.
Therefore, if only carbon dioxide or other chemicals is used to suppress the battery fire, although the fire can
be controlled, it cannot cool down the battery pack or prevent the re-ignition. On the other hand, if water spray
is applied, it can both suppress the fire and cool down the EV, but it may trigger more electrical faults over time
and react with Li to release hydrogen gas [161].
Relatively little is known about the extinction mechanism of LIB fires, and most of fire suppression tests in
the literature focused on the small-scale portable LIB fires, as reviewed in [20].Hence the effectiveness of
suppression agents and the reliability of existing fire suppression strategies for EV fire are often questioned.
Carbon-dioxide or dry chemicals can extinguish the flames of a burning LIB. However, extinguishment of
flames should be balanced against the possibility of a build-up of flammable gas and a delayed ignition leading
to a gas explosion [162]. Cooling of the LIB, or inhibiting heat transfer between its cells, appears to be mostly
positive. Water, which is a very common firefighting agent, offers excellent cooling capacity making it a good
candidate for gaining control over LIB fires despite potential negative effects such as short circuits or toxic run-
off water.
Colella [73] performed large-scale fire test on two different EV LIB packs (
Figure 22
). The parameters for
the considered battery packs are listed in
Table 8
. The fire tests considered both the LIB packs by themselves
and while mounted inside the vehicle. The pack or vehicle was ignited by a 400-kW propane burner. For both
battery packs, popping was heard, arcing and re-ignition was observed. Once it was clear the LIB pack was on
fire, an attempt was made to suppress it.
Table 8.
Fire suppression test for two Li-ion EV battery pack in a vehicle model where * means a battery with interior
components [65,73].
Battery Type and configuration
Dimension
Weight
Energy
Suppression time
Water quantity
Pack
A
B
Assembled from 288
3.6-V cells
T-shape with multiple
linked modules
[mm]
822×968 ×378
1650 (length)
[kg]
151.1
198.1
[kWh]
-
16
[min]
2.2/3.5/9.8*
14.0/21.4/9.3*
[m
3
]
1.25/2.01/4.80*
7.97/12.00/5.30*
25
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
For Battery A, re-ignition occurred 22 hours after the test had been terminated. The suppression effects
included the use of water flow of 125 gallons per minute and four firefighters (two on hose line and two in
support).
Table 8
also lists the suppression time and the quantity of fire-suppression water. The comparison
showed that interior components of battery modules strongly contributed to the fire hazard and difficulties in
suppressing Battery A, whereas the opposite trend was found for Battery B. These results showed although the
LIB pack plays a role in EV fire, other flammable materials (mainly plastics) also have a significant effect,
which is similar to conventional vehicles, as discussed in
Section 1.3.

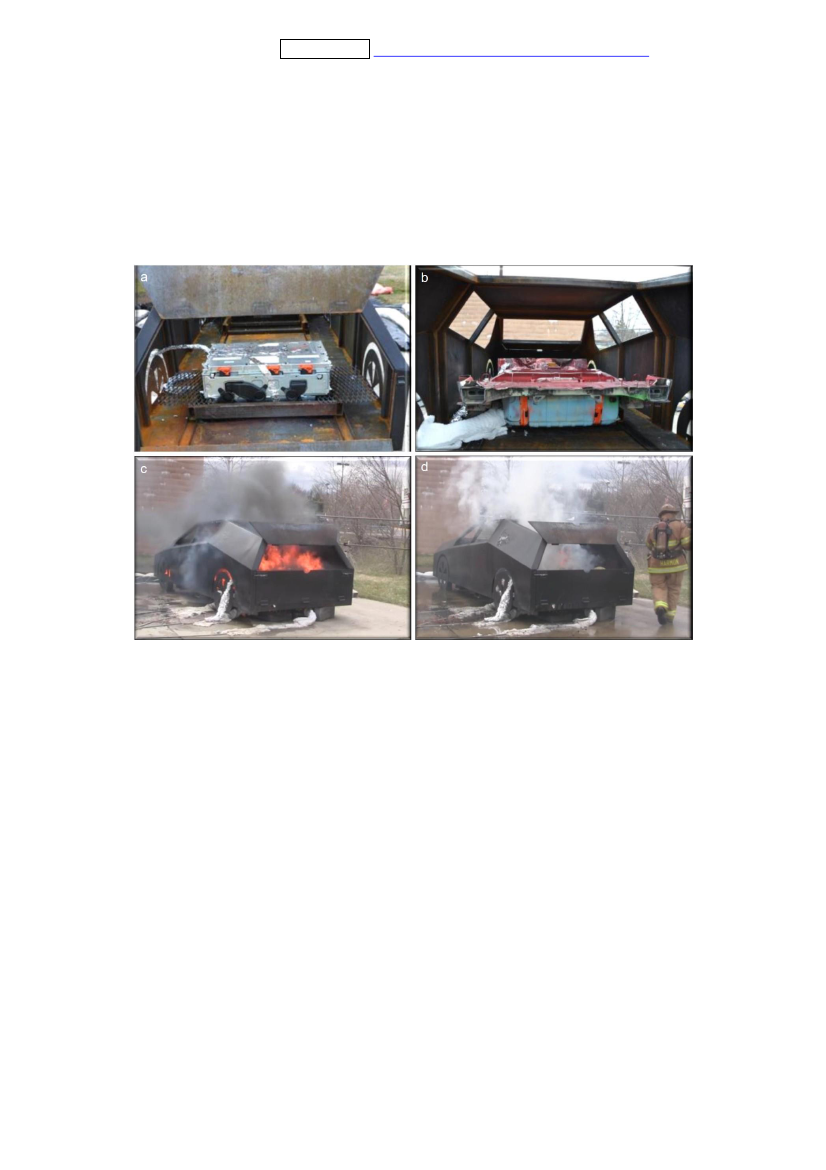

Figure 22.
Full-scale fire-suppression test of EV battery packs inside a vehicle model: (a) Type A battery
pack; (b)Type B battery pack with interior components; (c) fire behaviours of Battery A; and (d) fire
suppression efforts [65,73].
More recently, RISE conducted a fire suppression test for several EV batteries with different extinguishing
technologies, such as water spray and mist (Figure
23),
and the locations of nozzles were varied [163]. The
thermal runaway was initiated in one battery module by directly exposing it to a gas burner. Without the fire
suppression, the continuous ignition of battery cells was observed with external visible flame. The test results
showed that the water-based fire suppression system inside a battery pack has good potential to have a lasting
cooling effect on the battery and to increase the chance of mitigating and preventing thermal runaway
propagation. External activation had limited cooling effect or impact on the thermal runaway propagation,
except for extinguishing flames outside the battery pack to prevent batter fire spread to the surroundings.
Many heavy-duty ICEVs today have a built-in fire suppression system. These systems are installed to
protect the compartment spaces that have internal combustion engines and/or auxiliary heaters. These are
namely often most the primary area in which a thermal event or fire arises. Systems such as these are either
manually activated or automatically detect the fire before activating. Today, the use of said systems in busses
is mandated in 63 countries [164] through UNECE Reg. No. 107 [164]. This regulation will come in force for
coaches as well starting 2021. Insurance authorities have set their own standards for machines and heavy
vehicles in SBF127 [165] and SBF128 [166], respectively. Both these standards, and regulations related to a
test standard, SP Method 4912 [167], developed by RISE. This standard examines the system performance when
26
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
exposed to low and high fire loads with or without ventilation, hidden fires, class-A fires as well as reigniting
fires inside a mock-up of an internal combustion engine compartment space.
Figure 23.
(a) A photo of the suppression test for EV battery fire, and (b) the temperature measurement of a
battery near ignition location under different fire-suppression techniques [163].
Fire-suppression systems may also be found in HEVs or even PHEVs, to protect their internal combustion
engine and/or auxiliary heater compartment space. They are normally not considered for protecting LIBs (e.g.
Figure 24
). Tests have namely shown that large quantities of suppressant are needed to sufficiently cool a
burning LIB. These fixed-fire suppression systems may not be available to EV, because on a vehicle any system
needs to remain mobile and efficient. Considering the limited capacity of fire extinguisher onboard and the
difficulty in EV fire suppression, the premier purpose for the most present fire-protection system of EV is to
alert the driver about the fire in the vehicle and proceed with immediate preventive action. Experiences on
battery fire suggest that the primary effort of suppressing the EV fire is to cool down the temperature of the
battery which is already in the thermal runaway state. The difficulty is the poor accessibility of batteries since
most of the EV batteries are sealed off to prevent it from being penetrated by water and dust, and to ensure
protection against external impact [168]. External application of water thus only affects visible flames, the
external surface of the battery pack, and any materials surrounding it. Achieving this however still requires a
large amount of water. Tests have shown that over 10,000 L (2,600 gallons) of water should be applied for EV
fire depending on the size and location of the battery [169]. In addition, the suggested flow rate is very high at
200 L/min for extinguishing and cooling [101]. This may lead to large quantities of fire-water run-off. The
larger quantity of suppressant will also dilute any toxic media, hence further analysis on the trade-off on using
more, or less, suppressant is needed.
Figure 24.
Typical fire-suppression system for a commercial bus with a combustion engine and auxiliary
heater [170].
27
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
A large amount of suppressant needed is linked to the poor inaccessibility of the battery pack. This has been
shown in tests performed by RISE [6]. Here they tested external and internal application of suppressant to a fire
inside a LIB pack for heavy vehicles using limited quantities of suppressant. The commercially available
systems tested comprised of 3-4 nozzles supplied by 13 L of water-based suppressant in total. They found that
applying suppressant to the external surface of the burning LIB pack did not reduce internal temperatures or
limit the risk for thermal propagation. However, applying suppressant directly into the pack gave positive results
in terms of cooling and reducing the fire hazard. The risk for the module to module propagation and cell to cell
propagation could be lowered using only a limited amount of suppressant. This shows the importance of direct
access to the battery pack when there is a need to extinguish or cool it.
If an EV has been exposed to severe abuse, which may lead to a fire, it should be handled with special care.
There is namely the risk that some of the energy which remains in damaged LIBs reacts exothermally and
reignites a battery fire. Some guidelines are available which give information on how to handle when this risk
exists. Examples of these are those developed by NFPA, SAE, and EDUCAM. After the fire is extinguished, or
if there is a risk for fire, EVs that have been involved in accidents should be handled with care. These EVs
should be parked in a restricted-access section of an open-air parking area a sufficient distance away from other
vehicles, buildings, flammable objects and flammable surfaces [151]. It is never recommended to park an EVs
with a damaged high-voltage system in an enclosed hall. Alternatively, the fire risk of an EV can be mitigated
with the use of fire protection systems such as water sprinklers and/or fire detection systems. Battery packs of
the damaged EV should not be directly exposed to the environment if there exists the possibility that water and
moisture may seep into it. This can be mitigated by covering the EV with a weatherproof tarpaulin, for example,
if needed. Last but not least, vehicles that pose a fire risk should be marked accordingly as to warn nearby
personnel so that they can follow the appropriate routines and take any necessary precautions.

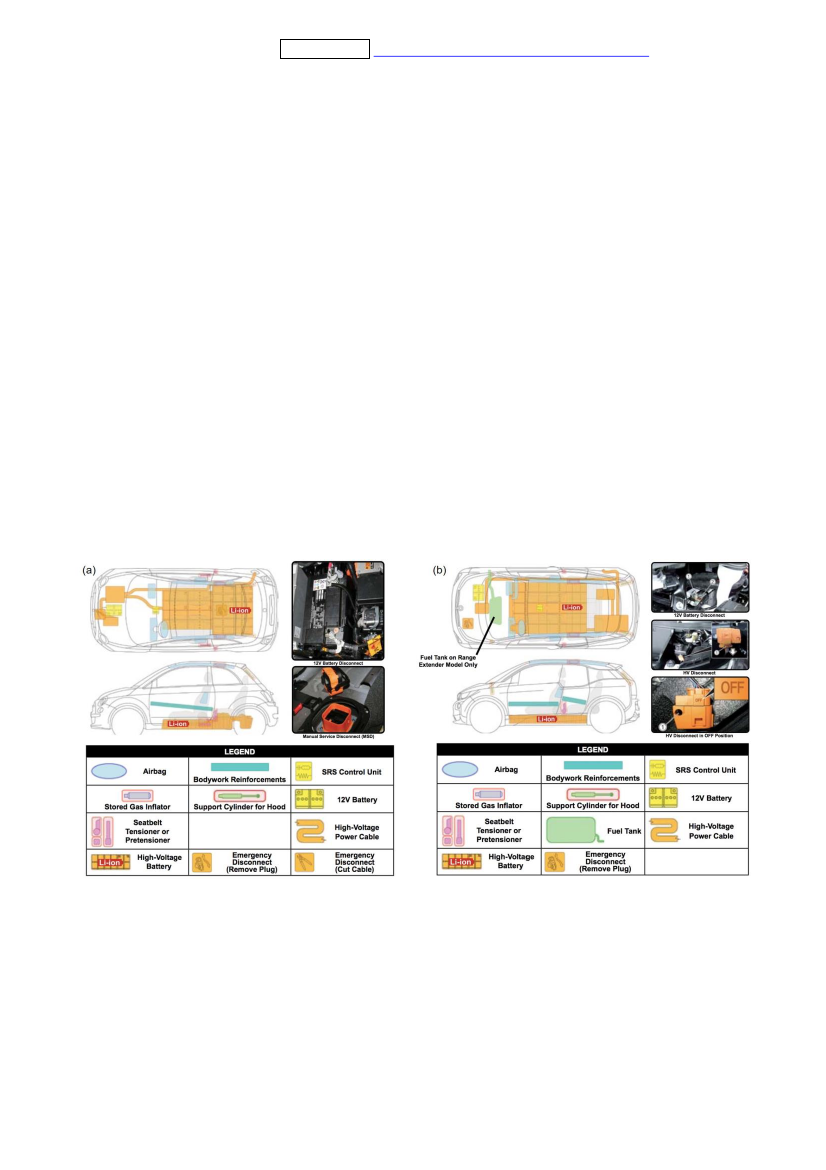

Figure 25.
NFPA emergency field guide for (a) FIAT 500e BEV, and (b) BMWi3 hybrid EV [169].
Every EV manufacturer is supposed to inform their consumers the accidence guidance for specific models,
including the fire emergency response. NFPA provides an emergency field guide to disable different batteries
for different brand and model vehicles (Figure
25)
[169]. The vehicle operators should be familiar with the
guidance of safety information and practices. Manual service disconnects could disable the high-voltage battery
without directly cut or touch components, but poor conduct could result in serious injury or death. When facing
an EV fire accident, the emergency procedures are suggested as follows. As with any vehicle, if sparks, smoke,
or flames coming from the vehicle are observed, customers should pull over, shut off the vehicle, exit the vehicle
and move away from it before calling emergency services. In addition, customers should provide the emergency
28
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
service with information on the type of vehicle the issue concerns, e.g. BEV or HEV. As with any vehicle fire,
people should be informed not to inhale smoke, vapours, or gas, released by the burning vehicle as they may be
hazardous. This could be best avoided by keeping a safe distance upwind, and uphill if possible, from the vehicle
fire. Finally, customers should stay out of the roadway and stay out of the way of any oncoming traffic while
awaiting the arrival of emergency responders.
The latest NFPA Electric vehicle emergency field guide [171] provides a more detailed instruction to handle
vehicle fire accidents incidents involving mainstream hybrid and electric vehicles of different brands. The
instruction is divided into two parts. The first part, the initial procedures, includes the methods to identify,
immobilize and disable the vehicle. The second part is fire suppression strategy. Firefighting personnel should
extinguish hybrid and electric vehicle fires using proper vehicle firefighting practices as recommended by the
NFPA and in accordance with the department SOPs (standard operating procedures).
By summarizing different code of practices in different countries, the recommended EV firefighting process
is described as follow
(1) Identify the vehicle. In some European countries, the fire rescue centres can request information based on
a vehicle’s license plates. This can help firefighters unequivocally identify the correct rescue datasheet;
(2) Determine the firefighting plan based on the situation;
(3) Protect the people first
(4) Control or extinguish the fire, and if the car is charging, switch off the charging infrastructure if possible.
(5) Vehicle should not be moved immediately, after the fire is extinguished;
(6) The final step is on-site cleaning. After fire accident, certain disposal procedures are also recommended,
that is, the EV should be parked in an outdoor place after the accident because of the re-ignition ability of
the battery.
As the total number of EVs increases every year, many public parking lots start to provide EV charging
stations to attract EV drivers and demonstrate their sustainability commitment. There are some concerns
associated with this, with several cities banning charging in parking lot structures. Parking lot structures have a
large fire risk, considering the number and density of vehicles they may house (
Figure 26
). Their low ceilings
contribute to the fire spread as they radiate heat down towards the fuel load whereas limited ventilation
contributes to the accumulation of toxic gas. Parking lot structures are designed to be able to handle a few
vehicles burning at the same time. As long as the fire is not allowed to spread beyond 3-4 vehicles, there will
be no structural collapse [172]. The fire hazard may be further reduced by fire suppression systems, as it may
help to prevent fire spread. Fire suppression systems such as conventional sprinklers may reduce the fire risk.
The chemical hazard which burning vehicles, including EVs, may pose when parked inside buildings, should
however be carefully considered.

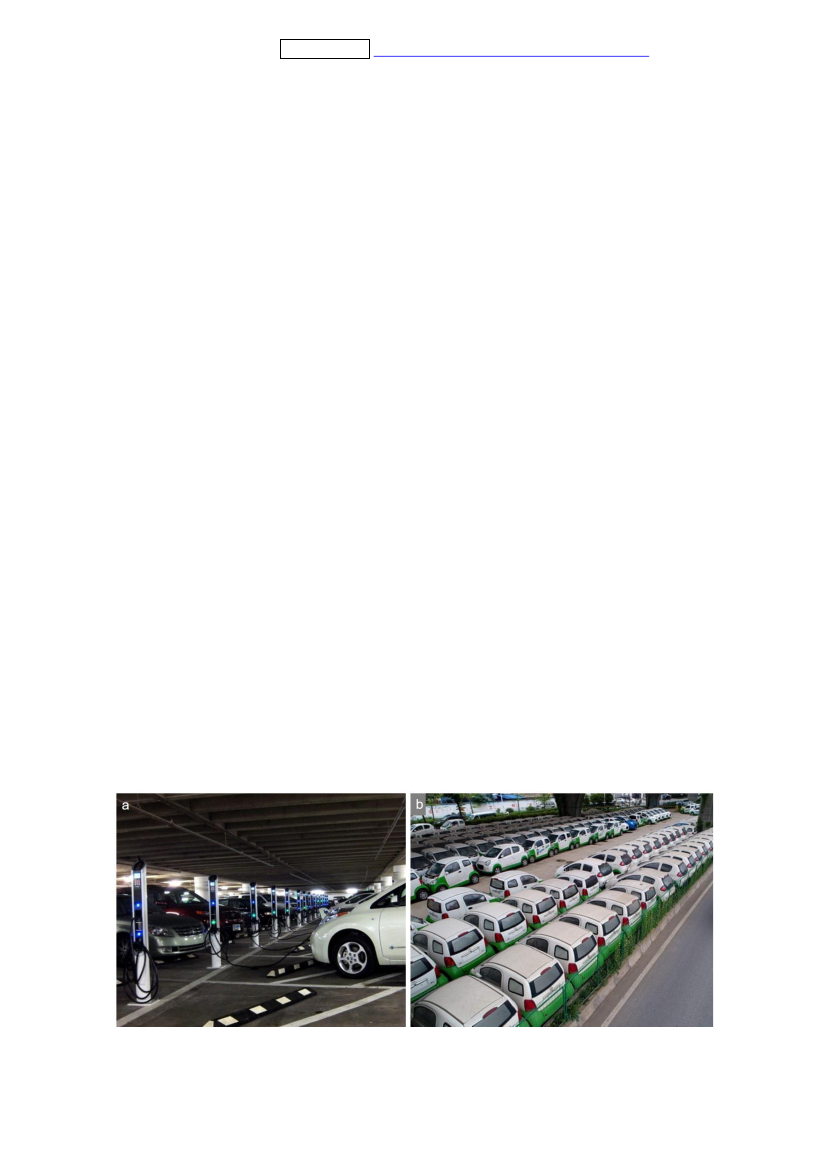

Figure 26.
(a) Houston's Tranquility Park Garage with GRIDbot charging stations [173], and (b) hundreds of
new EVs parked in a public area in Wuhan, China, showing a high fire risk [155].
29
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
NFPA 70 (National Electrical Code) has developed standards to address the growth in EV charging stations
[174]. UL 2594 is one of the main standards and covers the different voltages available as well as safety and
weather concerns. SAE J2293 and J1772 provide key design requirements to ensure interoperability with EVs
[175]. Nevertheless, there is still a lack of data to prove the effectiveness or reliability of fire hydrant and
sprinkler system for the parking lots with a large portion of EVs and many charging facilitates.
4. Concluding remarks
This paper reviews recent battery fires in electric vehicle (EV) as well as the related fire-safety issues and
the fire-protection strategies. The fire risk and hazard of Li-ion battery (LIB) are particularly serious in EV,
because of high demands in driving performance and charging speed, inevitable traffic accidents, and the
increasing scale and energy density of battery packs. Several typical fire accidents in battery EVs, hybrid EVs,
and electric buses are reviewed in order to provide a qualitative understanding of the risk and hazard of EV fire.
An increased number of EV fire accidents will be expected as the market share of EV continuously increases in
the next few decades. So far, there are a very limited number of full-scale EV fire tests because of the high cost
and the restriction of trade secrets. Nevertheless, existing test results have revealed that the heat release rate of
EV fire is comparable to that of the fossil-fuelled vehicle fire, while EV fire may release more toxic gasses like
HF from burning Li-ion batteries. The tested peak heat release rate (PHHR in
kW)
varies with the energy
capacity of LIBs (����
����
in
Wh)
crossing different scales as
���������������� = ��������
����.����
.
����
EV fire is harder to suppress because of the potential re-ignition of battery and the difficulty in cooling the
battery pack inside. For the suppression of EV fire, water is still considered as most effective, and a significant
amount of water is required to extinguish and cool the battery. However, less suppressant can be used if it is
directly applied to the battery pack. Moreover, there is very little knowledge of the fire risk of the disposed EVs
and wasted battery packs. In the future, fire-protection systems with a better design should also be required for
buildings and parking spaces that contain a greater number of EVs and charging stations. This review aims to
aid researchers and industries working with batteries, EVs and/or fire safety engineering, to encourage active
research collaborations, and attract future research and development on improving the overall safety of future
EVs. Only then will society achieve the same comfort level for EVs as they have for conventional vehicles.
Acknowledgements
PS and XH receive the support from HK Research Grant Council through the Early Career Scheme (25205519)
and HK PolyU through the Central Research Grant (G-YBZ1). RB is funded by the Strategic vehicle research
and innovation program FFI through the Swedish Energy Agency (No. 2017-014026). HN is supported by the
Guangdong Technology Fund (2015B010118001). The authors would like to thank reviewers for valuable
comments.
Nomenclature
Symbols
����
��������
����
����
∆����
����
����
̇
����
′′
̇
����̇
′′
Q
T
V
����
EV floor area (m )
area of fuel or fire (m
2
)
heat of combustion (MJ/kg)
burning rate (kg/s)
burning flux (kg/m
2
s)
heat flux (kW/m
2
)
heat release from fire (J)
temperature (℃)
voltage (V)
combustion efficiency (%)
2
Abbreviations
BEV
battery electric vehicle
EV
electric vehicle
HRR
heat release rate (W)
ICEV
internal combustion engine vehicle
LIB
Lithium-ion battery
NCA
nickel, cobalt, and aluminium oxide
NEDC
new European driving cycle
NMC
nickel, manganese, and cobalt
PHRR
peak heat release rate (W)
PHEV
plug-in hybrid electric vehicle
SOC
state of charge (%)
30
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
References
[1]
Matulka R. The History of the Electric Car. Department of Energy 2014.
https://www.energy.gov/articles/history-electric-car.
[2]
Anderson CD, Anderson J. Electric and Hybrid Cars. second. McFarland & Company; 2010.
[3]
Grauers A, Sarasini S, Karlström M, Industriteknik C. Why electromobility and what is it? In: Sandén B,
editor. Systems Perspectives on Electromobility, Chalmers University of Technology, Göteborg; 2013.
[4]
BP. Statistical Review of World Energy 2018 2018:1–53.
[5]
Bisschop R, Willstrand O, Amon F, Rosengren M. Fire Safety of Lithium-Ion Batteries in Road Vehicles.
Borås: 2019.
[6]
Bisschop R, Willstrand O, Rosengren M. Handling Lithium-Ion Batteries in Electric Vehicles - Preventing
and Recovering from Hazardous Events. 1st International Symposium on Lithium Battery Fire Safety, Hefei,
China: 2019.
[7]
National Transportation Safety Board. Preliminary Report: Crash and Post-crash Fire of Electric-powered
Passenger Vehicle 2018.
[8]
CGTN. Tesla car catches fire in China, investigation underway 2019.
https://news.cgtn.com/news/3d3d514d7a416a4d34457a6333566d54/index.html.
[9]
Bangkok Post. Porsche catches fire while charging 2018.
https://www.bangkokpost.com/thailand/general/1429518/porsche-catches-fire-while-charging.
[10] Loveday S. BMW i3 REx Burns After Catching Fire While Parked In Spain. INSIDEEVs 2018.
[11] Zhou X. Frequent Fire Accidents on Electric Vehicle. Operators 2018;10:65–6.
[12] National Transportation Safety Board. Preliminary Report: Highway HWY18FH013. National Transportation
Safety Board 2018.
[13] Revill J. Tesla crash may have triggered battery fire: Swiss firefighters 2018.
[14] National transportation safety board. Preliminary Report - Battery Fire in Electric-powered Passenger Car.
National Transportation Safety Board 2018.
https://www.ntsb.gov/investigations/accidentreports/pages/hwy18fh014-preliminary.aspx.
[15] Deick M Van. Facebook 2018. https://www.facebook.com/Marco.vandeick/posts/344761026325031.
[16] Gutman M, S. Yuon. Firefighters work 16 hours to put out fires in Tesla Model S. ABC News 2018.
https://abcnews.go.com/Technology/tesla-opens-investigation-car-burst-flames-times/story?id=59930420.
[17] Wang Q, Ping P, Zhao X, Chu G, Sun J, Chen C. Thermal runaway caused fire and explosion of lithium ion
battery. Journal of Power Sources 2012;208:210–24. doi:10.1016/j.jpowsour.2012.02.038.
[18] Wang Q, Mao B, Stoliarov SI, Sun J. A review of lithium ion battery failure mechanisms and fire prevention
strategies. Progress in Energy and Combustion Science 2019;73:95–131. doi:10.1016/j.pecs.2019.03.002.
[19] Feng X, Ouyang M, Liu X, Lu L, Xia Y, He X. Thermal runaway mechanism of lithium ion battery for
electric vehicles: A review. Energy Storage Materials 2018;10:246–67. doi:10.1016/j.ensm.2017.05.013.
[20] Ouyang D, Chen M, Huang Q, Weng J, Wang Z, Wang J. A Review on the thermal hazards of the lithium-ion
battery and the corresponding countermeasures. Applied Sciences 2019;9:2483. doi:10.3390/app9122483.
[21] Evarts EC. Lithium batteries: To the limits of lithium. Nature 2015;526:S93–5. doi:10.1038/526S93a.
[22] Moon G. Renault-Samsung’s Electric Vehicle Catches Fire Due to Ignition from Bonnet. ETRC·KGTLAB
2016. http://www.ipnomics.net/?p=14858.
[23] Pecht M. Safety. CALCE Battery Research Group 2015. https://web.calce.umd.edu/batteries/safety.html.
[24] Home of EV. What should we do during the EV fire? SOHU 2018.
https://www.sohu.com/a/233521985_526255.
[25] Hertzke P, Müller N, Schenk S, Wu T. The global electric-vehicle market is amped upand on the rise.
McKinsey Center for Future Mobility 2018.
[26] Offer GJ. Automated vehicles and electrification of transport. Energy & Environmental Science 2015;8:26–
30. doi:10.1039/C4EE02229G.
[27] Frost & Sullivan. Global Electric Vehicle Market Outlook, 2018. 2018.
[28] Egbue O, Long S. Barriers to widespread adoption of electric vehicles: An analysis of consumer attitudes and
perceptions. Energy Policy 2012;48:717–29. doi:10.1016/j.enpol.2012.06.009.
[29] International Energy Agency. Global EV Outlook 2018: Towards cross-modal electrification. IEA
Publications 2018. doi:10.1787/9789264302365-en.
[30] The Economist Intelligence Unit. France ranked top for EV adoption in 2017. The Economist 2018.
[31] Bjerkan KY, Nørbech TE, Nordtømme ME. Incentives for promoting Battery Electric Vehicle (BEV)
adoption in Norway. Transportation Research Part D 2016;43:169–80. doi:10.1016/j.trd.2015.12.002.
[32] U.S. Commercial Service. The Electric Vehicle Market - France 2017. https://www.export.gov/article?id=E-
Mobility-in-France.
[33] Germany Trade & Invest. Electromobility in Germany: Vision 2020 and Beyond 2015.
[34] Lu J. Comparing U.S. and Chinese Electric Vehicle Policies. Environmental and Energy Study Institute 2018.
https://www.eesi.org/articles/view/comparing-u.s.-and-chinese-electric-vehicle-policies.
31
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
[43]
[44]
[45]
[46]
[47]
[48]
[49]
[50]
[51]
[52]
[53]
[54]
[55]
[56]
[57]
[58]
[59]
[60]
[61]
[62]
[63]
Council on Clean Transportation I. Supporting the electric vehicle market in U.S. cities. 2015.
Howell S, Lee H, Heal A. Leapfrogging or Stalling Out? Electric Vehicles in China. HKS Working Paper No
RWP14-035 2014. doi:10.2139/ssrn.2493131.
Gibson R. What can we learn from Japan about EV adoption? FleetCarma, August 22 2018.
https://www.fleetcarma.com/can-learn-japan-ev-adoption/.
Industry Steering Committee. Electric vehicle technology roadmap for Canada : a strategic vision for
highway-capable battery-electric, plug-in and other hybrid-electric vehicles. Natural Resources Canada 2009.
Liu X, Wu Z, Stoliarov SI, Denlinger M, Masias A, Snyder K. Heat release during thermally-induced failure
of a lithium ion battery: Impact of cathode composition. Fire Safety Journal 2016;85:10–22.
doi:10.1016/j.firesaf.2016.08.001.
Liu X, Stoliarov SI, Denlinger M, Masias A, Snyder K. Comprehensive calorimetry of the thermally-induced
failure of a lithium ion battery. Journal of Power Sources 2015;280:516–25.
doi:10.1016/j.jpowsour.2015.01.125.
JOEY DAVIDSON. Musk frustrated that Koch brothers spending millions to kill electric cars 2016.
Markus F. 2017 Chevrolet Bolt EV Drivetrain First Look (w/Video). Motortrend Apr 6 2016 2016.
https://www.motortrend.com/cars/chevrolet/volt/2016/2017-chevrolet-bolt-ev-drivetrain-first-look-review/.
Arman Ahmad. EV power-up may lie with prismatic tech. New Straits Times 2017.
https://www.nst.com.my/cbt/2017/12/315288/ev-power-may-lie-prismatic-tech.
Types of Battery Cells; Cylindrical Cell, Button Cell, Pouch Cell. Battery University, 24 April, 2019 2019.
https://batteryuniversity.com/index.php/learn/article/types_of_battery_cells.
Miles A. The Secret Life Of An EV Battery. Sustainable Enterprises Media, Inc 2018.
https://cleantechnica.com/2018/08/26/the-secret-life-of-an-ev-battery/.
Garcia-Valle R, Lopes JAP. Electric vehicle integration into modern power networks. Springer-Verlag New
York; 2013. doi:10.1007/978-1-4614-0134-6.
SAMSUNG SDI. The Composition of EV Batteries: Cells? Modules? Packs? Let’s Understand Properly! n.d.
http://www.samsungsdi.com/column/all/detail/54344.html.
Timofeeva E. Comparing Electric Cars and Their Batteries. Inlfluit Energy 2017.
http://www.influitenergy.com/comparing-electric-cars-and-their-batteries/.
Dinger, Andreas; Martin, Ripley; Mosquet, Xavier; Rabl, Maximilian; Rizoulis, Dimitrios; Russo, Massimo
S. Batteries for Electric Cars: Challenges, Opportunities, and the Outlook to 2020. The Boston Consulting
Group 2010.
Hao M, Li J, Park S, Moura S, Dames C. Efficient thermal management of Li-ion batteries with a passive
interfacial thermal regulator based on a shape memory alloy. Nature Energy 2018;3:899–906.
doi:10.1038/s41560-018-0243-8.
Kolly JM, Panagiotou J, Czech BA. Failure Analysis Techniques for a Lithium-Ion Battery Fire Investigation.
Fire in Vehicles 2014.
Tesla. Tesla Model S 2019. https://www.tesla.com/models.
Drysdale D. An Introduction to Fire Dynamics. 3rd ed. Chichester, UK: John Wiley & Sons, Ltd; 2011.
doi:10.1002/9781119975465.
Andrea D. A list of Li-Ion cells available today. Li-Ion BMS 2018. http://liionbms.com/php/cells.php.
Le Houx J. Developments in Composite Energy Storage. Energy Technology, Environment and Sustainability
Reviews 2017:24832413.
Berjoza D, Jurgena I. Effects of change in the weight of electric vehicles on their performance characteristics.
Agronomy Research 2017;15:952–63.
Idaho National Laboratory. 2014 BMW i3 review-Advanced Vehicle Testing – Baseline Vehicle Testing
Result. INL/MIS-15-34211 2016.
Compare Side-by-Side. US Department of Energy n.d.
https://www.fueleconomy.gov/feg/Find.do?action=sbs&id=38524&id=38569&id=38525&id=38640.
Balakrishnan PG, Ramesh R, Prem Kumar T. Safety mechanisms in lithium-ion batteries. Journal of Power
Sources 2006;155:401–14. doi:10.1016/j.jpowsour.2005.12.002.
Tobishima SI, Yamaki JI. A consideration of lithium cell safety. Journal of Power Sources 1999;81–82:882–
6. doi:10.1016/S0378-7753(98)00240-7.
Lecocq A, Eshetu GG, Grugeon S, Martin N, Laruelle S, Marlair G. Scenario-based prediction of Li-ion
batteries fire-induced toxicity. Journal of Power Sources 2016;316:197–206.
doi:10.1016/j.jpowsour.2016.02.090.
Gough N. Sony Warns Some New Laptop Batteries May Catch Fire. The New York Times 2014.
https://www.nytimes.com/2014/04/12/technology/sony-warns-some-new-laptop-batteries-may-catch-
fire.html.
Liu Y, Sun P, Niu H, Huang X. Propensity to self-heating ignition of open-circuit pouch Lithium-ion battery
pile on a hot boundary. Fire Safety Journal 2020. doi:10.1016/j.firesaf.2020.103081.
32
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
[64]
[65]
[66]
[67]
[68]
[69]
[70]
[71]
[72]
[73]
[74]
[75]
[76]
[77]
[78]
[79]
[80]
[81]
[82]
[83]
[84]
[85]
[86]
[87]
[88]
[89]
He X, Restuccia F, Zhang Y, Hu Z, Huang X, Fang J. Experimental study of self-heating ignition of lithium-
ion batteries during storage and transport : effect of the number of cells. Fire Technology (under Review)
2019.
Blum A, Long RT. Full-scale Fire Tests of Electric Drive Vehicle Batteries. SAE International Journal of
Passenger Cars - Mechanical Systems 2015;8:565–72. doi:10.4271/2015-01-1383.
Justen R, Schöneburg R. Crash Safety of Hybrid and Battery Electric Vehicles. 22nd Enhanced Safety of
Vehicles Conference, Washington: 2011.
Wisch M, J. Ott RT, Léost Y, Abert M, Yao J. Recommendations and Guidelines for Battery Crash Safety
and Post-Crash Handling. EVERSAFE 2014.
Uwai H, Isoda A, Ichikawa H, Takahashi N. Development of Body Structure for Crash Safety of the Newly
Developed Electric Vehicle. 22nd Enhanced Safety of Vehicles Conference, Washington: 2011.
Fairley P. Speed bumps ahead for electric-vehicle charging. IEEE Spectrum 2010;47:13–4.
doi:10.1109/MSPEC.2010.5372476.
Zheng J, Engelhard MH, Mei D, Jiao S, Polzin BJ, Zhang JG, et al. Electrolyte additive enabled fast charging
and stable cycling lithium metal batteries. Nature Energy 2017;2. doi:10.1038/nenergy.2017.12.
Larsson F, Mellander B-E. Lithium-ion Batteries used in Electrified Vehicles - General Risk Assessment and
Construction Guidelines from a Fire and Gas Release Perspective. RISE Research Institutes of Sweden 2017.
Larsson F. Lithium-ion Battery Safety-Assessment by Abuse Testing, Fluoride Gas Emissions and Fire
Propagation. Chalmers University of Technology, 2017.
Colella F. Understanding electric vehicle fires. Fire Protection and Safety in Tunnels, Stavanger: 2016.
Glassman I, Yetter RA. Combustion. 4th ed. New York: Academic Press; 2008.
Babrauskas V. Ignition Handbook. Issaquah, WA: Fire Science Publishers/Society of Fire Protection
Engineers; 2003. doi:10.1023/B:FIRE.0000026981.83829.a5.
Doughty DH, Pesaran AA. Vehicle Battery Safety Roadmap Guidance. Denver: Renewable Energy
Laboratory 2012.
Said AO, Lee C, Stoliarov SI, Marshall AW. Comprehensive analysis of dynamics and hazards associated
with cascading failure in 18650 lithium ion cell arrays. Applied Energy 2019;248:415–28.
doi:10.1016/j.apenergy.2019.04.141.
Kumar K. Flammability of Plastics in Today’s Automobiles. SAE Technical Papers 2015;4.
doi:10.4271/2015-01-1380.
Tewarson A. A study of the flammability of plastics in vehicle components and parts. Technical Report
FMRC JI 0B1R7RC, Factory Mutual Research Corporation, Norwood, MA 1997.
Iguchi M. Divergence and Convergence of Automobile Fuel Economy Regulations: A Comparative Analysis
of EU, Japan and the US. Springer International Publishing; 2015.
Ribière P, Grugeon S, Morcrette M, Boyanov S, Laruelle SS, Marlair G, et al. Investigation on the fire-
induced hazards of Li-ion battery cells by fire calorimetry. Energy & Environmental Science 2012;5:5271–
80. doi:10.1039/C1EE02218K.
U. S. Department of Energy. FOTW #1010, January 1, 2018: All-Electric Light Vehicle Ranges Can Exceed
Those of Some Gasoline Light Vehicles JANUARY 1, 2018 2018.
https://www.energy.gov/eere/vehicles/articles/fotw-1010-january-1-2018-all-electric-light-vehicle-ranges-
can-exceed-those.
Fu Y, Lu S, Li K, Liu C, Cheng X, Zhang H. An experimental study on burning behaviors of 18650 lithium
ion batteries using a cone calorimeter. Journal of Power Sources 2015;273:216–22.
doi:10.1016/j.jpowsour.2014.09.039.
Chen M, Dongxu O, Liu J, Wang J. Investigation on thermal and fire propagation behaviors of multiple
lithium-ion batteries within the package. Applied Thermal Engineering 2019;157:113750.
doi:10.1016/j.applthermaleng.2019.113750.
Chen M, He Y, De Zhou C, Richard Y, Wang J, DeZhou C, et al. Experimental Study on the Combustion
Characteristics of Primary Lithium Batteries Fire. Fire Technology 2016;52:365–85. doi:10.1007/s10694-
014-0450-1.
Chen M, Zhou D, Chen X, Zhang W, Liu J, Yuen R, et al. Investigation on the thermal hazards of 18650
lithium ion batteries by fire calorimeter. Journal of Thermal Analysis and Calorimetry 2015;122:755–63.
doi:10.1007/s10973-015-4751-5.
Larsson F, Andersson P, Blomqvist P, Lorén A, Mellander BE. Characteristics of Lithium-Ion Batteries
during Fire Tests. Journal of Power Sources 2014;271:414–20. doi:10.1016/j.jpowsour.2014.08.027.
Ping P, Wang QS, Huang PF, Li K, Sun JH, Kong DP, et al. Study of the fire behavior of high-energy
lithium-ion batteries with full-scale burning test. Journal of Power Sources 2015;285:80–9.
doi:10.1016/j.jpowsour.2015.03.035.
Sturk D, Hoffmann L, Ahlberg Tidblad A. Fire Tests on E-vehicle Battery Cells and Packs. Traffic Injury
Prevention 2015;16:159–64. doi:10.1080/15389588.2015.1015117.
33
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
[90]
[91]
[92]
[93]
[94]
[95]
[96]
[97]
[98]
[99]
[100]
[101]
[102]
[103]
[104]
[105]
[106]
[107]
[108]
[109]
[110]
[111]
[112]
[113]
[114]
[115]
Wang Z, Yang H, Li Y, Wang G, Wang J. Thermal runaway and fire behaviors of large-scale lithium ion
batteries with different heating methods. Journal of Hazardous Materials 2019;379:120730.
doi:10.1016/j.jhazmat.2019.06.007.
Macneil DD, Lougheed G, Lam C, Carbonneau G, Kroeker R, Edwards D, et al. Electric Vehicle Fire
Testing. 8th EVS-GTR Meeting, Washington, USA June 1-5, 2015, 2015.
Iclodean C, Varga B, Burnete N, Cimerdean D, Jurchiș B. Comparison of Different Battery Types for Electric
Vehicles Related content Comparison of Different Battery Types for Electric Vehicles n.d. doi:10.1088/1757-
899X/252/1/012058.
2019 Kia Niro EV Specifications n.d.
Watanabe N, Sugawa O, Suwa T, Ogawa Y, Hiramatsu M, Tomonori H, et al. Comparison of fire behaviours
of an electric-battery-powered behicle and gasoline-powered vehicle in a real-scale fire test. Second
International Conference on Fires in Vehicles, Chicago: 2012.
Lecocq A, Bertana M, Truchot B, Marlair G. Comparison of the fire consequences of an electric vehicle and
an internal combustion engine vehicle. International Conference on Fires In Vehicles - FIVE 2012, vol. 2,
Chicago, United States: 2012, p. 183–94.
WPI VH. li-ion battery energy stroage systems: Effect of separation deistances based on a radiation heat
transfer analysis. 2017. doi:10.2460/javma.234.6.731.
Sturk D, Hoffmann L, Tidblad AA. Traffic Injury Prevention Fire Tests on E-vehicle Battery Cells and Packs
Fire Tests on E-vehicle Battery Cells and Packs. Traffic Injury Prevention 2015;16:159–64.
doi:10.1080/15389588.2015.1015117.
Larsson F, Andersson P, Mellander B-E. Lithium-Ion Battery Aspects on Fires in Electrified Vehicles on the
Basis of Experimental Abuse Tests. Batteries 2016;2:9. doi:10.3390/batteries2020009.
Lam C, MacNeil D, Kroeker R, Lougheed G, Lalime G. Full-Scale Fire Testing of Electric and Internal
Combustion Engine Vehicles. Fourth International Conference on Fire in Vehicle, Baltimore: 2016.
Stephens D, Stout P, Sullivan G, Saunders E, Risser J, J. Sayre. Lithium-ion Battery Safety Issues for Electric
and Plug-in Hybrid Vehicles. National Highway Traffic Safety Administration (Report No DOT HS 812
418), Washington, DC 2019.
Verband der Automobilindustrie (VDA). Accident Assistance and Recovery of Vehicles with High-Voltage
Systems. Verband Der Automobilindustrie EV 2017:1–30.
Thermal A, Chamber T. Analysis of Li-Ion Battery Gases Vented in an Inert Atmosphere Thermal Test
Chamber 2019:1–17.
Guo F, Ozaki Y, Nishimura K, Hashimoto N, Fujita O. Experimental study on flame stability limits of lithium
ion battery electrolyte solvents with organophosphorus compounds addition using a candle-like wick
combustion system. Combustion and Flame 2019;207:63–70. doi:10.1016/j.combustflame.2019.05.019.
Tesla Vehicle Safety Report. Tesla 2019.
The Home Office, Road vehicle fires dataset, August 2019, UK 2019.
https://www.gov.uk/government/statistical-data-sets/fire-statistics-incident-level-datasets.
“Ferocious” fire ripped through Liverpool Echo Arena car park. BBC News 2018.
https://www.bbc.com/news/uk-england-merseyside-42533830.
Huang X, Nakamura Y. A Review of Fundamental Combustion Phenomena in Wire Fires. Fire Technology
2020;56:315–360. doi:10.1007/s10694-019-00918-5.
EV century. Lifan 650EV spontaneously ignited. GaoGong EV Web 2018. http://www.gg-ev.com/asdisp2-
65b095fb-26641-.html.
Christy Leung, 297SHARE, Christy Leung. First Hong Kong-designed electric bus rolls out for a month of
test-drives on city’s roads | South China Morning Post 2015.
Herron D. Model S catches fire in Norway at Supercharger, charging system seemingly at fault. The Long
Tail Pipe 2016. https://longtailpipe.com/2016/01/01/model-s-catches-fire-in-norway-at-supercharger-
charging-system-seemingly-at-fault/.
Blanco S. Tesla Model S catches fire near Seattle, no injuries reported. Autoblog 2013.
https://www.autoblog.com/2013/10/02/tesla-model-s-fire/.
Lambert F. Tesla Model S fire vs 35 firefighters – watch impressive operation after a high-speed crash.
Electrek, 18 October 2017 2017. https://electrek.co/2017/10/18/tesla-model-s-fire-high-speed-crash-video-
impressive-operation/.
Winkler S. Final Report - Crash Involving Tesla Model S - 10400 South Bangerter Highway. South Jordan
Police Department 2018.
Marshall R. Report confirms sensor failure caused electric bus fire. The Frederick News Post, Nov 3, 2016
n.d.
https://www.fredericknewspost.com/news/politics_and_government/levels_of_government/county/report-
confirms-sensor-failure-caused-electric-bus-fire/article_7689d9d5-7ded-5586-b6d9-b2b2519ca568.html.
Shiming Y. Hundreds of electric buses ruined in fire. 21cnevcom 2017.
34
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
[116]
[117]
[118]
[119]
[120]
[121]
[122]
[123]
[124]
[125]
[126]
[127]
[128]
[129]
[130]
[131]
[132]
[133]
[134]
[135]
[136]
[137]
[138]
[139]
[140]
[141]
[142]
[143]
http://www.21cnev.com/html/201705/775455_1.html.
Mengjie. Tourist buses catch fire in Beijing, no casualties. XINHUANET 2017.
http://www.xinhuanet.com/english/2017-05/01/c_136248785.htm.
Herron D. Electric cars are safer than gasoline cars. Green Transportation 2015.
https://greentransportation.info/ev-ownership/safer/index.html.
Lu L, Han X, Li J, Hua J, Ouyang M. A review on the key issues for lithium-ion battery management in
electric vehicles. Journal of Power Sources 2013;226:272–88. doi:10.1016/j.jpowsour.2012.10.060.
Williams FA. Mechanisms of fire spread. Symposium (International) on Combustion 1977;16:1281–94.
doi:10.1016/S0082-0784(77)80415-3.
Batenburg C Van. Introduction to HEV, PHEV and EVs: For Technicians and Students New to High-Voltage
Systems. 1st ed. Automotive Career Development Center; 2014.
Warner JT. The Handbook of Lithium-Ion Battery Pack Design: Chemistry, Components, Types and
Terminology. Elsevier Science; 2015.
Beauregard GP, Phoenix AZ. Report of investigation: Hybrids plus plug in hybrid electric vehicle. National
Rural Electric Cooperative Association, Inc and US Department of Energy, Idaho National Laboratory by
Etec 2008.
He X. A mixed energy public bus caught on fire in Shenzhen. Inewenergy 2016.
http://www.inewenergy.com/news/guonei/031GO162016.html.
China battery enterprise alliance. Wuzhoulong hybrid bus fire 2016.
http://www.cbea.com/hydt/201603/16778.html.
Chatman S. Denton Woman Says Kia Won’t Reimburse Her After Car Catches Fire. NBC 5 Dallas-Fort
Worth 2018. https://www.nbcdfw.com/news/local/Denton-Woman-Says-Kia-Wont-Reimburse-Her-After-
Car-Catches-Fire--491908751.html.
Bt10m Porsche up in flames as battery charging goes wrong. THE NATION, 16 Mar 2018 2018.
https://www.nationthailand.com/news/30341102.
Garche J, Brandt K. Li-battery safety. Elsevier; 2019.
Tidblad AA. Regulatory Outlook on Electric Vehicle Safety. Fifth International Conference on Fires in
Vehicles, Borås: 2018.
Cabrera Castillo E. Advances in Battery Technologies for Electric Vehicles. Elsevier Ltd; 2015.
doi:10.1016/B978-1-78242-377-5.00018-2.
Andreas Sater Boe. Full Scale Electric Vehicle Fire Test. Fire Product Search 2017.
https://www.fireproductsearch.com/full-scale-electric-vehicle-fire-test/.
Doughty DH, Crafts CC. FreedomCAR Electrical Energy Storage System Abuse Test Manual for Electric
and Hybrid Electric Vehicle Applications. SAND2005-3123 2006.
Ruiz V, Pfrang A, Kriston A, Omar N, Van den Bossche P, Boon-Brett L. A review of international abuse
testing standards and regulations for lithium ion batteries in electric and hybrid electric vehicles. Renewable
and Sustainable Energy Reviews 2018;81:1427–52. doi:10.1016/j.rser.2017.05.195.
SAE. Electric and Hybrid Electric Vehicle Rechargeable Energy Storage System (RESS) Safety and Abuse
Testing. SAE J2464_200911 2009:2.
SAE Ground Vehicle Technical Committees. Electric and Hybrid Vehicle Propulsion Battery System Safety
Standard. 2011.
UL. Batteries for Use In Electric Vehicles. UL 2580 2013.
IEC. Secondary lithium-ion cells for the propulsion of electric road vehicles – Part 2: Reliability and abuse
testing. 2010.
SAE. Electric and Hybrid Electric Vehicle Rechargeable Energy Storage S. SAE J2464 2011:2.
UNCECE. Uniform Provisions Concerning the Approval of Vehicles with Regard to Specific Requirements
for the Electric Power Train [2015/05]. Regulation No 100 of the Economic Commission for Europe of the
United Nations (UNECE) 2015.
SAE. Safety Standard for Electric and Hybrid Vehicle Propulsion Battery System Utilizing Lithium-bsed
Rechargeabel Cell J2929-201302. 2013.
Spotnitz R, Franklin J. Abuse behavior of high-power, lithium-ion cells. Journal of Power Sources
2003;113:81–100. doi:10.1016/S0378-7753(02)00488-3.
Zhang X. Thermal analysis of a cylindrical lithium-ion battery. Electrochimica Acta 2011;56:1246–55.
doi:10.1016/j.electacta.2010.10.054.
Eshetu GG, Jeong S, Pandard P, Lecocq A, Marlair G, Passerini S. Comprehensive Insights into the Thermal
Stability, Biodegradability, and Combustion Chemistry of Pyrrolidinium-Based Ionic Liquids.
ChemSusChem 2017;10:3146–59. doi:10.1002/cssc.201701006.
Spinner NS, Field CR, Hammond MH, Williams BA, Myers KM, Lubrano AL, et al. Physical and chemical
analysis of lithium-ion battery cell-to-cell failure events inside custom fire chamber. Journal of Power
Sources 2015;279:713–21. doi:10.1016/j.jpowsour.2015.01.068.
35
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
[144] Chen S-C, Wang Y-Y, Wan C-C. Thermal Analysis of Spirally Wound Lithium Batteries. Journal of The
Electrochemical Society 2006;153:A637–A637. doi:10.1149/1.2168051.
[145] Santhanagopalan S, Ramadass P, Zhang J (Zhengming). Analysis of internal short-circuit in a lithium ion cell.
Journal of Power Sources 2009;194:550–7. doi:10.1016/j.jpowsour.2009.05.002.
[146] Finegan D, Scheel M, Robinson JB, Tjaden B, Hunt I, Mason TJ, et al. In-operando high-speed tomography
of lithium-ion batteries during thermal runaway. Nature Communications 2015;6:6924.
doi:10.1038/ncomms7924.
[147] Cai L, White RE. Mathematical modeling of a lithium ion battery with thermal effects in COMSOL Inc.
Multiphysics (MP) software. Journal of Power Sources 2011;196:5985–9.
doi:10.1016/j.jpowsour.2011.03.017.
[148] Chen SC, Wan CC, Wang YY. Thermal analysis of lithium-ion batteries. Journal of Power Sources
2005;140:111–24. doi:10.1016/j.jpowsour.2004.05.064.
[149] Kim G-H, Pesaran A, Spotnitz R. A three-dimensional thermal abuse model for lithium-ion cells. Journal of
Power Sources 2007;170:476–89. doi:10.1016/j.jpowsour.2007.04.018.
[150] Mahamud R, Park C. Reciprocating air flow for Li-ion battery thermal management to improve temperature
uniformity. Journal of Power Sources 2011;196:5685–96. doi:10.1016/j.jpowsour.2011.02.076.
[151] US Department of Transportation. Interim Guidance for Electric and Hybrid-Electric Vehicles Equipped With
High-Voltage Batteries. DOT HS 811 575 2014.
[152] Wang Q. Study on Fire and Fire Spread Characteristics of Lithium Ion Batteries. 2018 China National
Symposium on Combustion, 2018.
[153] Andersson P, Brandt J, Willstrand O. Full scale fire-test of an electric hybrid bus. SP Report 2016.
[154] Łebkowski A. Electric Vehicle Fire Extinguishing System 2017;93:329–32. doi:10.15199/48.2017.01.77.
[155] Gardiner J. The rise of electric cars could leave us with a big battery waste problem. The Guardian,10 Aug
2017 2017. https://www.theguardian.com/sustainable-business/2017/aug/10/electric-cars-big-battery-waste-
problem-lithium-recycling.
[156] Polinares. Fact Sheet: Lithium. GLOBAL 2000 VerlagsgesmbH 2012.
[157] Egelhaaf M, Kress D, Wolpert D, Lange T. Fire Fighting of Li-ion Traction Batteries. SAE International
Journal of Alternative Power 2013;2:37–48. doi:https://doi.org/10.4271/2013-01-0213.
[158] Brandweer Midden- en West-Brabant. Fire accident report. Facebook 2019.
https://www.facebook.com/BrandweerMWB/posts/2902012643145806.
[159] Kong L, Li C, Jiang J, Pecht MG. Li-ion battery fire hazards and safety strategies. Energies 2018;11:1–11.
doi:10.3390/en11092191.
[160] NFPA. Standard for Porable Fire Extinguishers. NFPA 10 2018.
[161] Schiemann M, Bergthorson J, Fischer P, Scherer V, Taroata D, Schmid G. A review on lithium combustion.
Applied Energy 2016;162:948–65. doi:10.1016/j.apenergy.2015.10.172.
[162] Andersson P, Wikman J, Arvidson M, Larsson F, Willstrand O. Safe introduction of battery propulsion at sea.
RISE Research Institutes of Sweden 2017.
[163] Willstrand O. To manage fire risks related to Li-ion batteries in vehicles Universitet/högskola/företag. RISE
Research Institutes of Sweden 2019;8P03983-03.
[164] United Nations Economic and Social Council (UNECE). Agreement concerning the Adoption of Harmonized
Technical United Nations Regulations for Wheeled Vehicles, Equipment and Parts which can be Fitted and/or
be Used on Wheeled Vehicles and the Conditions for Reciprocal Recognition of Approvals Granted on the.
Unitied Nations Treaty, Geneva: United Nations; 1958.
[165] The Swedish Fire Protection Association. SBF 127:16 Regler för brandskydd på arbetsfordon och -maskiner
2016.
[166] The Swedish Fire Protection Association. SBF 128:3 Regler för fast automatiskt släcksystem på bussar 2017.
[167] RISE Research Institutes of Sweden. SP Method 4912Method for testing the suppression performance of fire
suppression systems intended forengine compartments of buses, coachesand other heavy vehicles 2018.
[168] Andersson P, Sundström B. Proceedings from 3rd International Conference on Fires in Vehicles. FIVE –
Fires in Vehicles, 2014, p. 274.
[169] NFPA. Emergency Field Guide. NFPA; 2015.
[170] SafeQuip. Fire Suppression Systems n.d. http://www.safequip.co.za/product/ceodeux-suppression-system/.
[171] NFPA. Hybrid and Electric Vehicle Emergency Field Guide 2014:1–38.
[172] Joyeux D, Kruppa J, Cajot L-G, Schleich J-B, van de Leur P, Twilt L. Demonstration of real fire tests in car
parks and high rise buildings. 2001.
[173] Richard Read. Largest Electric-Car Charging Site: Would You Believe Houston? 2011.
https://www.greencarreports.com/news/1066818_largest-electric-car-charging-site-would-you-believe-
houston (accessed December 19, 2018).
[174] NFPA. National Electrical Code. NFPA 70 2020.
[175] Curtland C. Parking Lot EV Chargers. Buildings 2013. https://www.buildings.com/article-
36
BOU, Alm.del - 2022-23 (2. samling) - Bilag 72: Henvendelse af 28/8-23 fra Bjarne Engelbrecht Larsen om Sikkerhed - Pyrotekniske batterier - Bek 181 Bolig og Planstyrelsen.
P. Sun, R. Bisschop, H. Niu, X. Huang* (2020)
A Review of Battery Fires in Electric Vehicles,
Fire Technology,
56 Invited Review
https://doi.org/10.1007/s10694-019-00944-3
details/articleid/15485/title/parking-lot-ev-chargers/viewall/true (accessed December 19, 2018).
37
View publication stats
