About Us
05-06-2019
Evergreen Aviation
assists airports in minimizing operation costs and improving
security by reducing FOD, Erosion, Bird strikes, noise and maintenance.
Aviation Grade Artificial Turf
(AGAT) Evergreen Aviation is the distributor of
AGAT for airports in Scandinavia, UK, North Atlantics, MENA, several European,
African and Asian countries.
AGAT is a future proof, innovative solution with numerous advantages for
installation in leading airports around the world.
With our
experience
within artificial turf, aviation and civil engineering, we are able
to offer a yet unexploited possibility of optimizing security, increasing efficiency and
environmental improvements.
Our
solutions
are thoroughly tested in laboratories and airports all over the world.
Evergreen Aviation provides consultancy, installation, service, and maintenance of
AGAT.
To educate and minimize environmental impact we strive
to use local manpower, equipment and materials.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

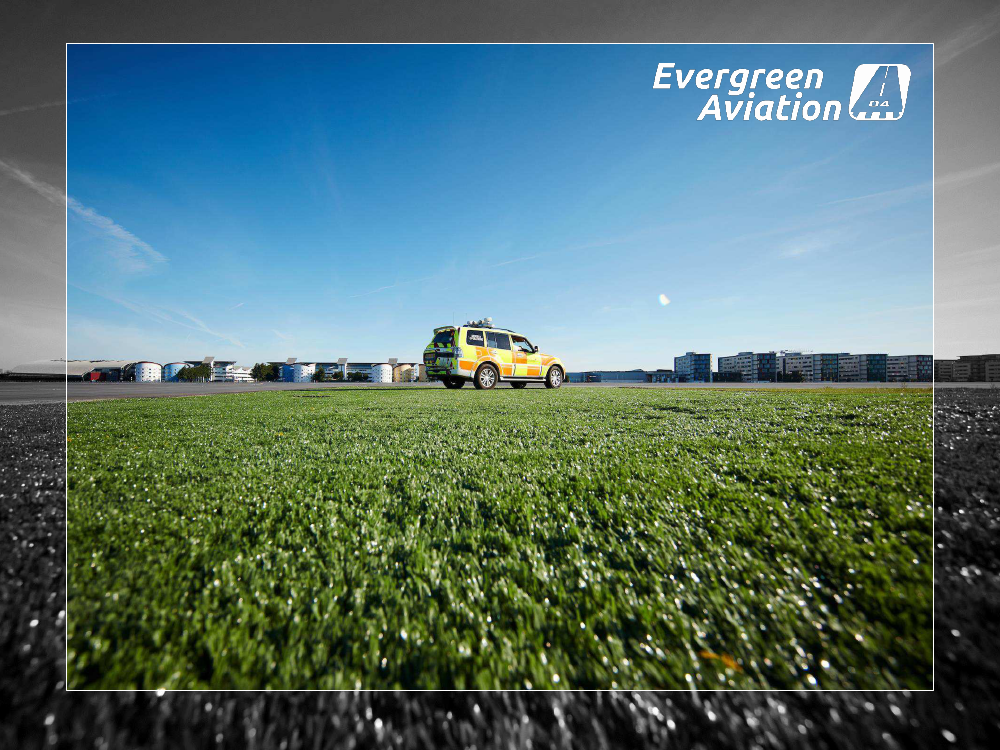

AGAT
Aviation Grade Artificial Turf
05-06-2019

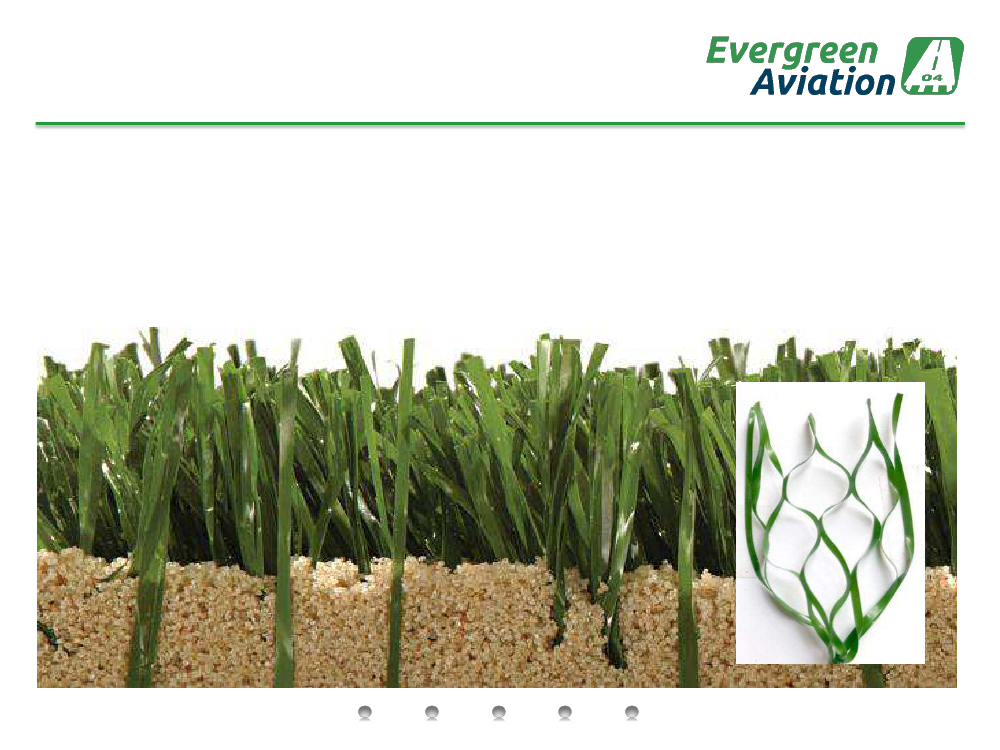

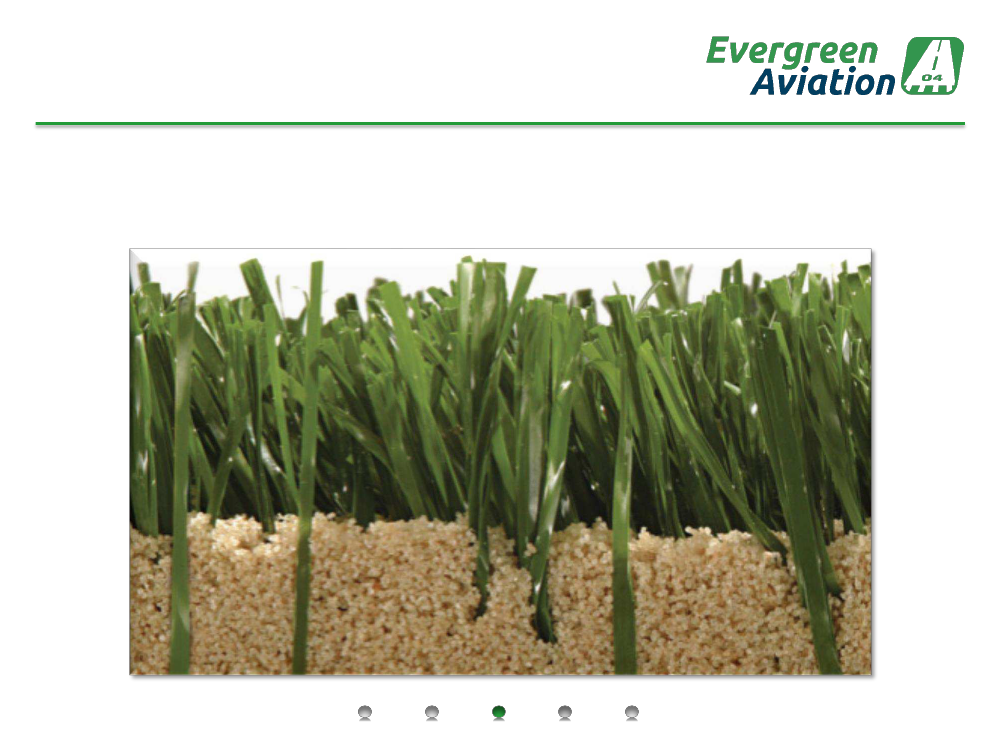

AGAT is a synthetic turf designed for airport Groundcover.
With our experience within artificial turf, aviation and civil engineering, we can optimize
security, increasing efficiency and environmental improvements, while minimizing operation
costs. Our sustainable surface solutions are thoroughly tested in laboratories and airports all
over the world. Evergreen Aviation provides consultancy, installation, service, operation and
maintenance of AGAT.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
AGAT advantages
Safety First
05-06-2019
FOD
Foreign Object Debris secures against creation and improves visual identification of FOD
Erosion
closes the surface and secures it against erosion
Visual Recognition
–
clear visual recognition independent of seasons.
Incursions
- Minimized maintenance and reduction of the need for ground personnel airside.
Aircraft Rescue and Fire Fighting (ARFF)
- increases the access and shortens the rescue turnout.
Nudging
-
‘Nudging’ signals which affects
behaviour unconsciously but effectively.
Bird Strikes
- Fewer bird strikes due to the reduced presence of food and hiding places for birds.
Drainage
- Increases the possibility of surface drainage.
Wildlife Management
- Neutral and ethical wildlife management, due to the natural removal of food,
shelter, and water for birds and prey.
Noise Reduction -
AGAT works as a noise reduction in Aprons, Taxiways and Helipads
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

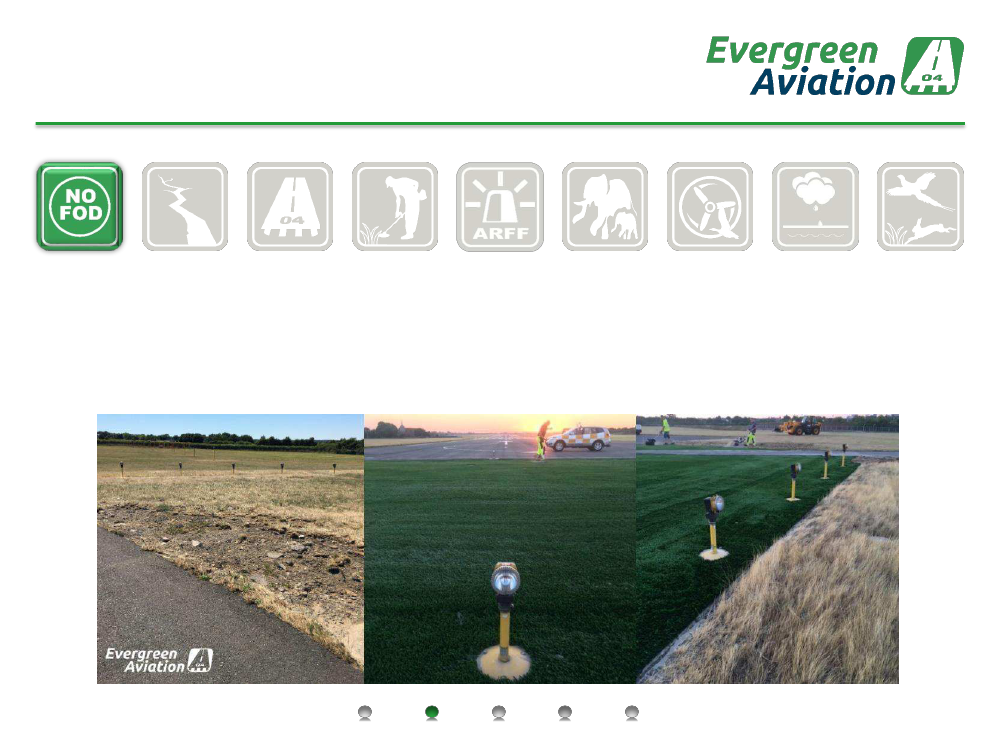

FOD
AGAT advantages
05-06-2019
Foreign Object Debris Damage (FOD) is responsible for countless millions of dollars worth of
damage to aircraft every year. An AGAT installation helps inspection personnel to identify and
remove debris quickly and effectively. In addition, areas which are normally subjected to jet
blast are stabilized with an AGAT installation, as the potential for pavement disaggregation is
greatly reduced.
AGAT’s
FOD-prevention characteristics have been tested and proven.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

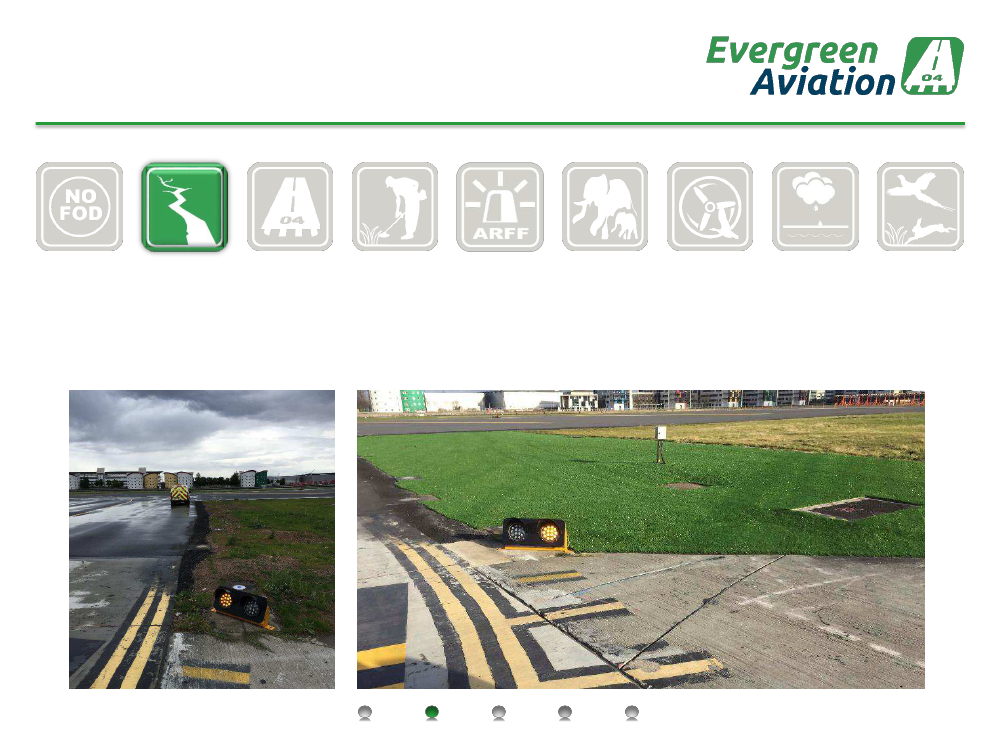

Erosion
AGAT advantages
05-06-2019
AGAT helps to stabilize runway and taxiway shoulders and prevents the erosion of soil abutting
the pavement because of jet blast and water run-off. A synthetic turf system also provides a
surface that will support inadvertent excursions by aircraft and minimize damage to aircraft
gear systems.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Visual Recognition
AGAT advantages
05-06-2019
AGAT significantly enhances the visual delineation for aircraft pilots and airport ground crew.
This system can be used in numerous applications to help with airport marking. This
significantly increases safety by covering non-movement hard surface areas such as painted
infield islands and decommissioned high speed exits or taxiways in lieu of painted yellow
X’s.
FAA study shows that artificial turf used to narrow the appearance of taxiways to prevent pilots
from inadvertently landing on wide taxiways.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Incursions
AGAT advantages
05-06-2019
Installation of AGAT on the airport reduces the number of times when personnel and equipment
must be on the airfield, especially in the runway and taxiway safety areas. Synthetic turf also
aids vehicle operators and pilots to maintain situational awareness while moving on the airport
surface.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

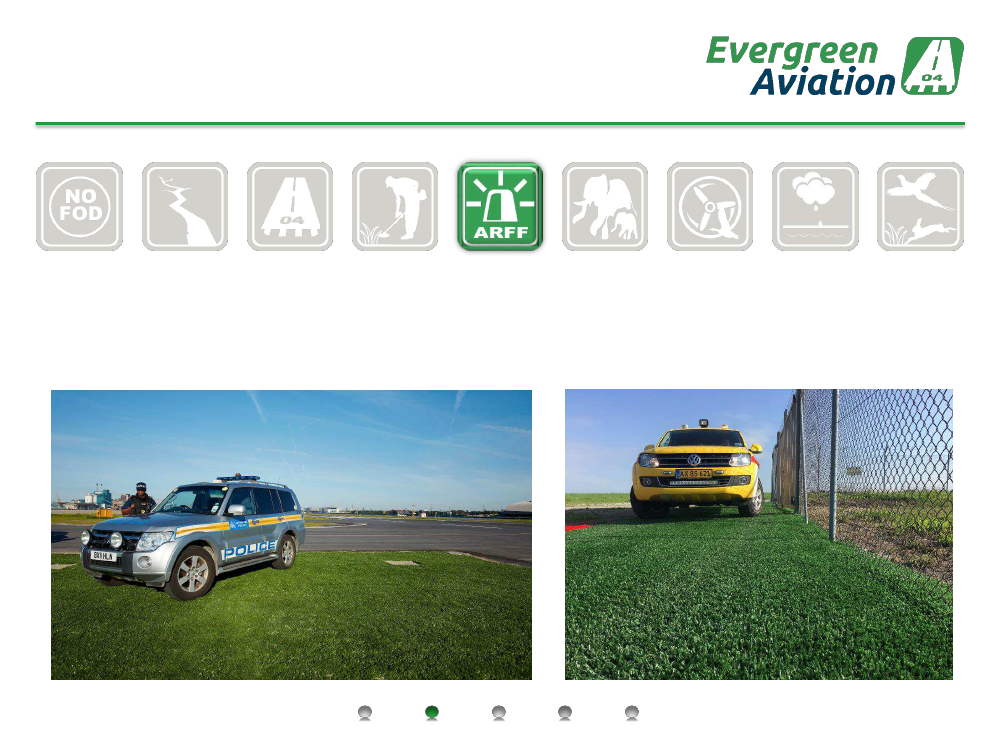

ARFF
AGAT advantages
05-06-2019
Covering infield islands with artificial turf will create a more stable area that allows emergency
response equipment to traverse over these areas during all types of weather and ultimately
reduce response times to airport incidents. Both a Boeing 757 and multiple ARFF emergency
service vehicles have traversed AGAT installations with no signs of displacement or damage.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Nudging
AGAT advantages
05-06-2019
Nudging is an architectural signal which affects behavior unconsciously in a appropriate and
predictable way. These markings in artificial turf offer a guideline beyond the mandatory
runway markings.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

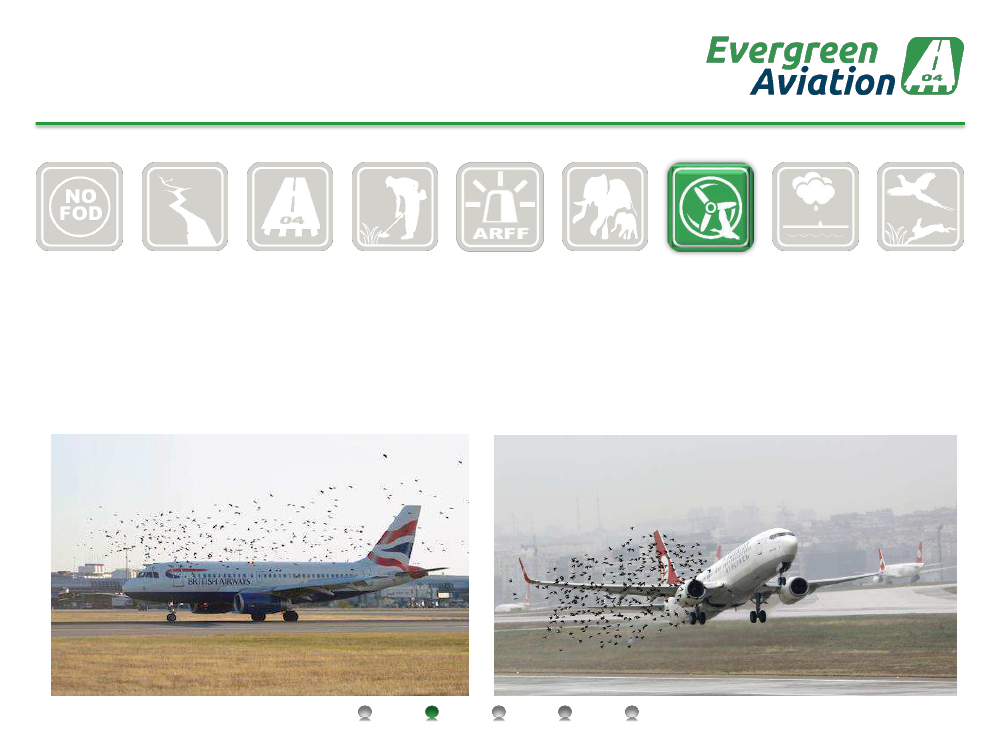

Bird Strikes
AGAT advantages
05-06-2019
AGAT creates an environment which is free of food, water, and shelter for birds. Because the
most dangerous and frequent encounters occur during take-off and landing, efforts to ensure
wildlife control on the airfield have assumed priority and urgency. Installing artificial turf
alongside runways and taxiways will drive birds further away from these critical areas and
reduce the potential for bird strikes on or near the airport property.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

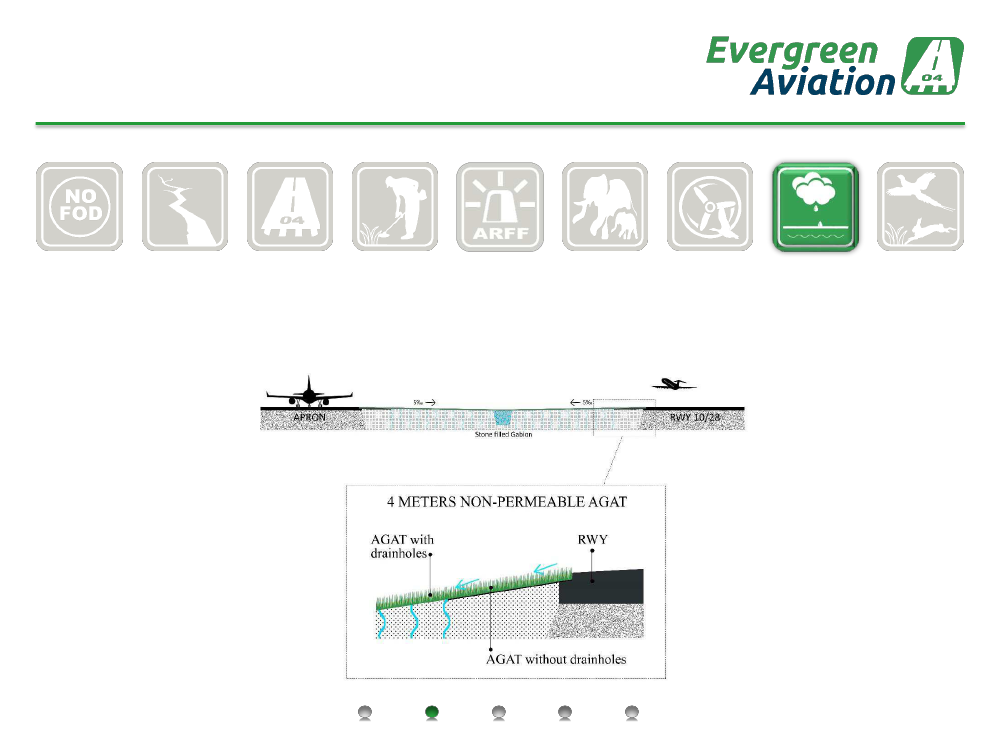

Drainage
AGAT advantages
05-06-2019
Laboratory and field drainage tests have been performed with successful results on AGAT. The
AGAT system allows water to drain through natural percolation, and the infill provides a natural
filter that can drain up to 60 gallons of water per square foot per hour.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

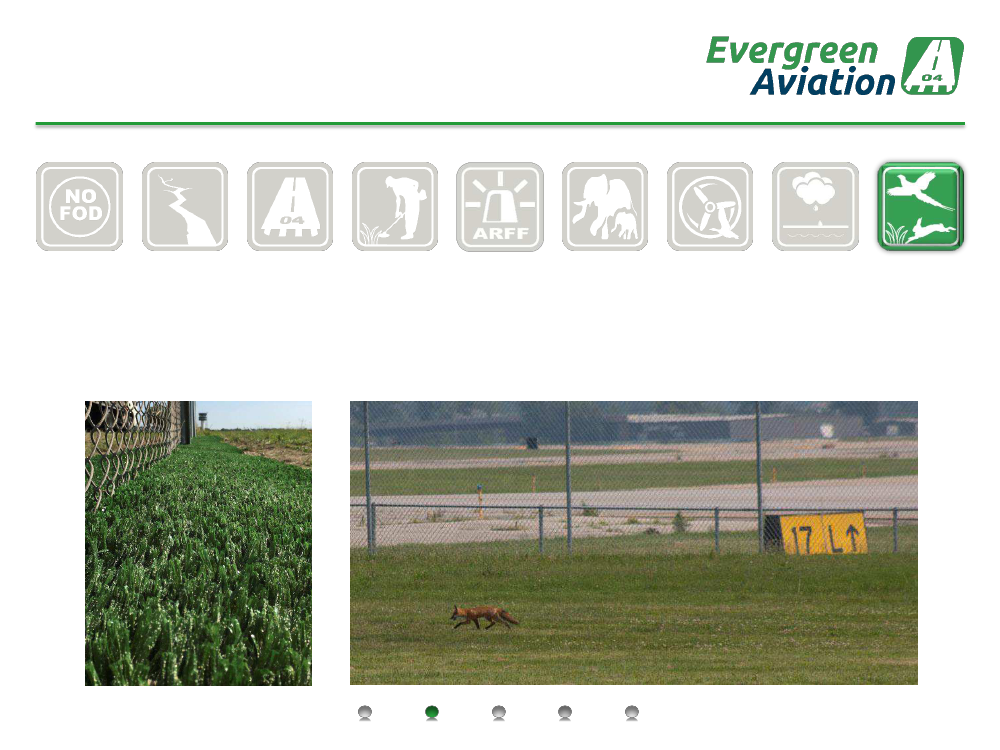

Wildlife Management
AGAT advantages
05-06-2019
The presence of any wildlife around taxiways and runways can prove distracting and
dangerous, increasing the likelihood of bird strikes and FOD. AGAT installation acts as a
neutral and ethical deterrent to wildlife management by removing food, shelter, and water
for birds and their prey.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

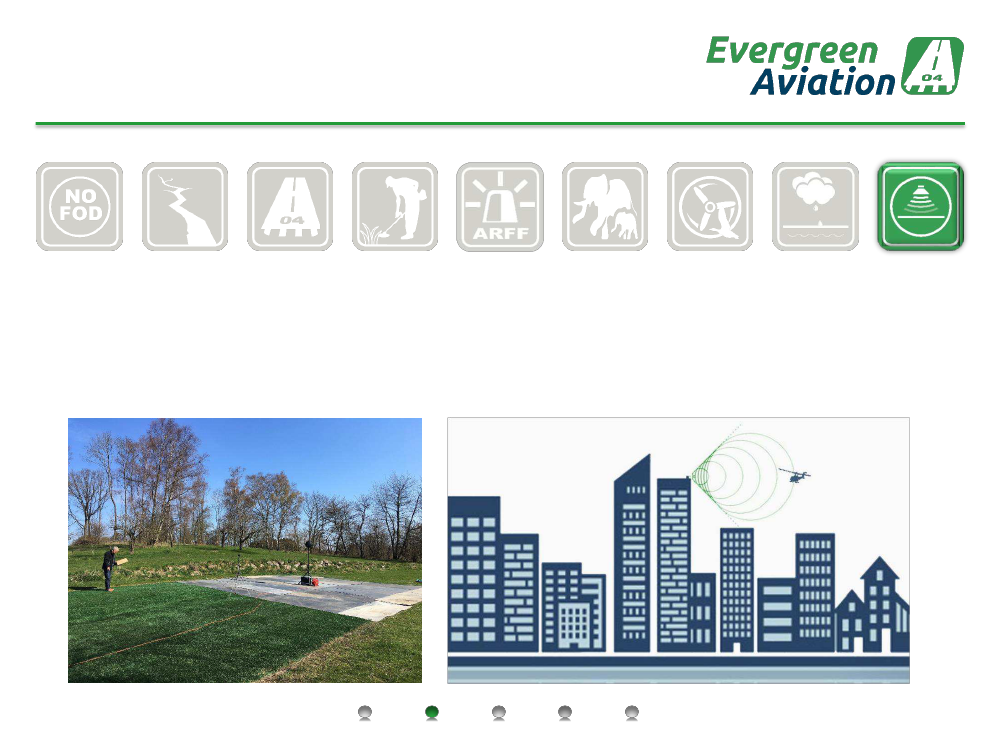

Noise Reduction
AGAT advantages
05-06-2019
Aviation Grade Artificial Turf is a efficient sound absorbing surface. The noise reducting
carpet works especially well on Runways, Taxiways, Aprons and Helipads.
Additional systems compliments the noise reduction in highly sensitive areas.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
AGAT Applications
Groundcover for airports, landing strips and helipads
Evergreen Aviation provides safety and efficiency to Airports worldwide through a large
number of different applications. The specific applications needed to increase safety and
05-06-2019
optimize operation time and maintenance, are different from airport to airport.
> A380
> Edges of Maneuvering Areas
> Fences
> Service Areas
> Service Roads
> Shoulders
> Signs

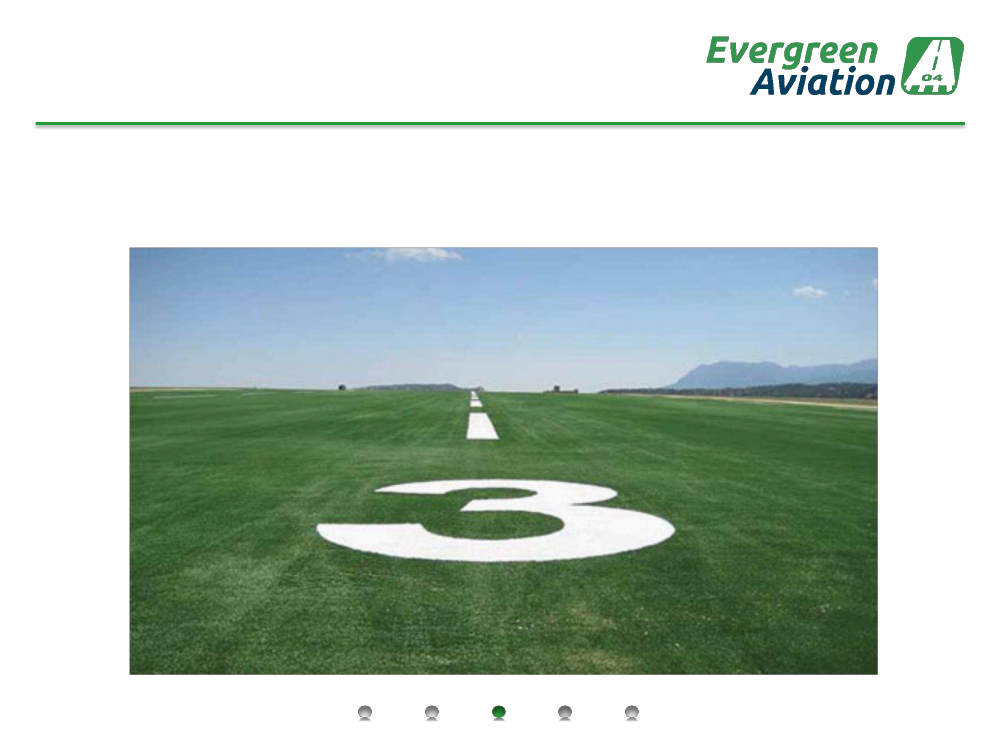

> AGAT Runways
> Fuel Stations
> ILS Areas
> Intersections
> Runway Markings

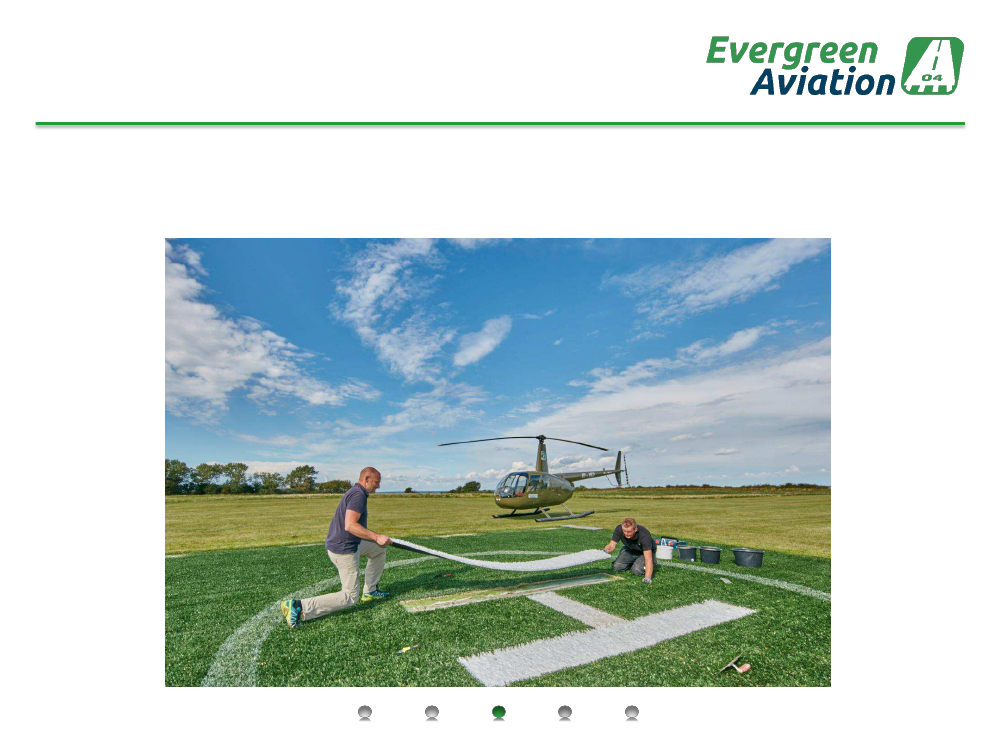

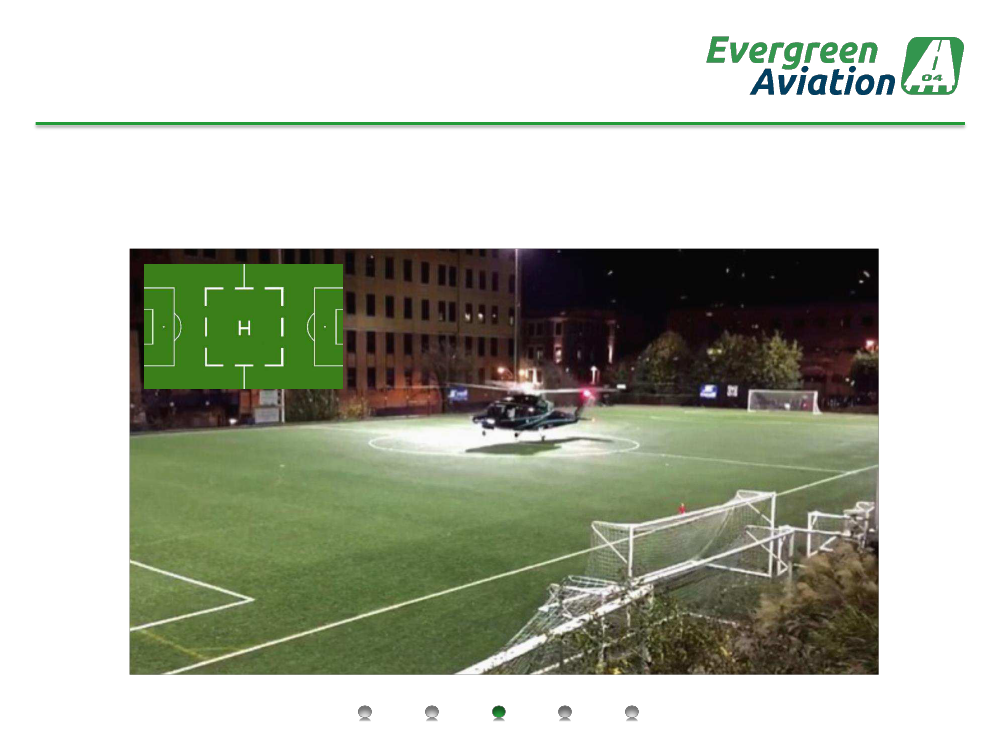

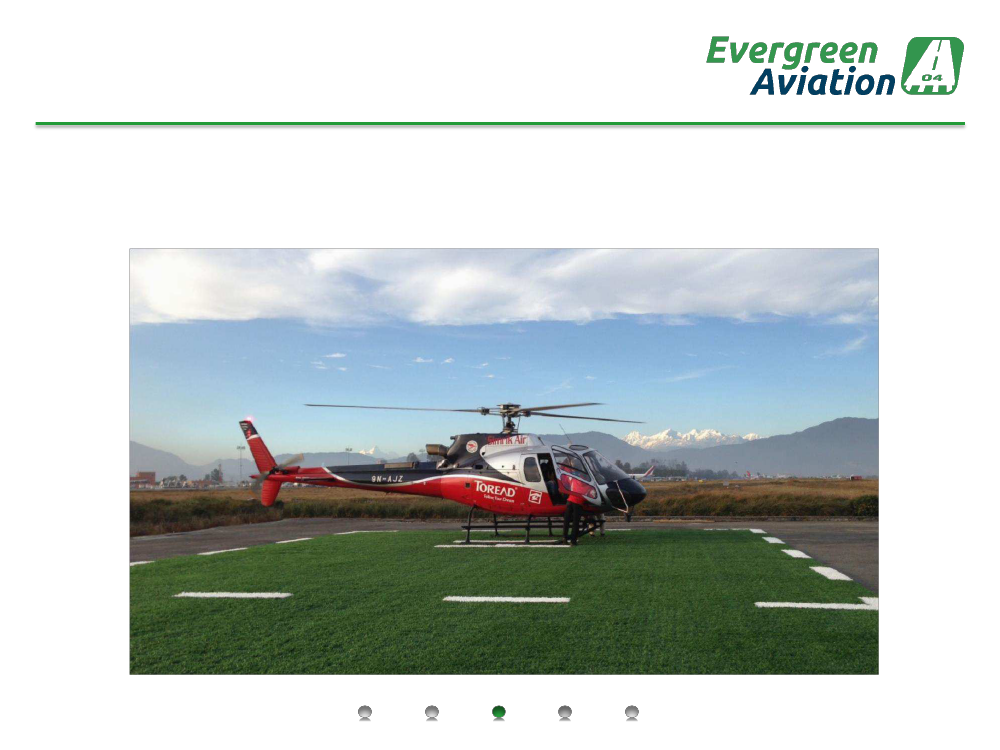

> The AGAT Heli Pad
> Heli Pitch

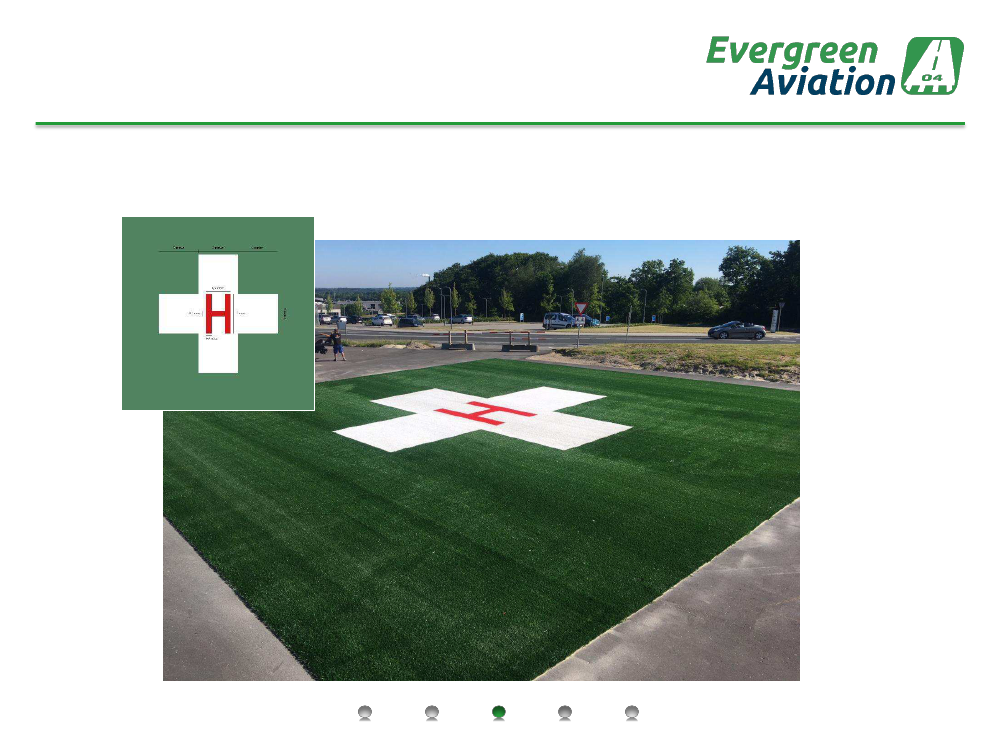

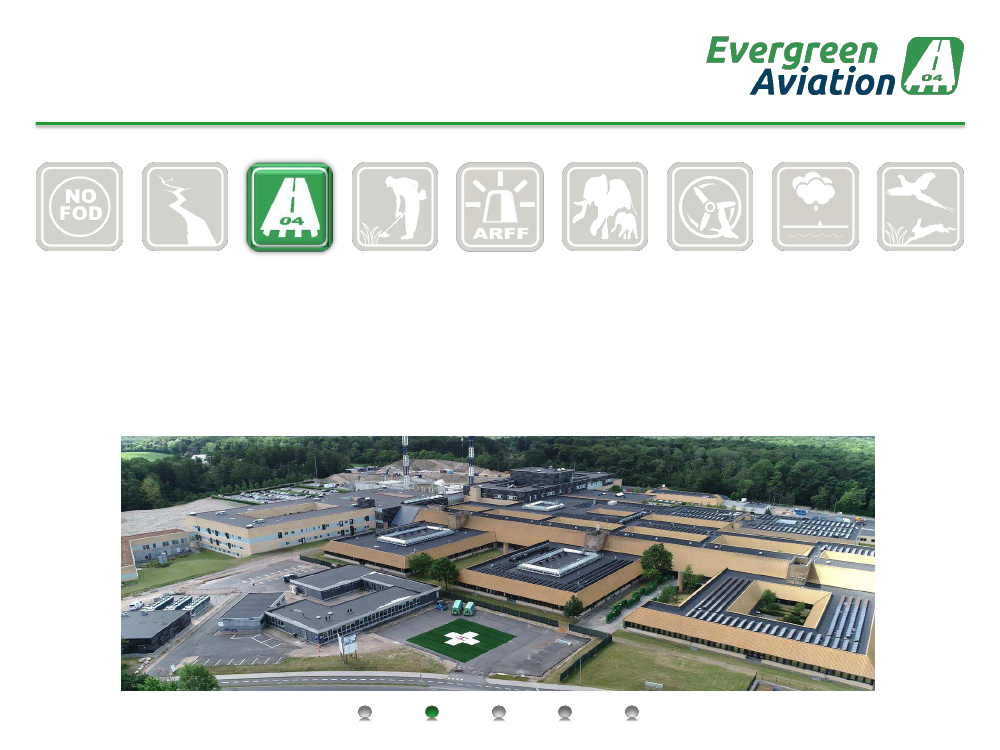

> Hospital Helipad
> Islands
> Lamps
> PAPI
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

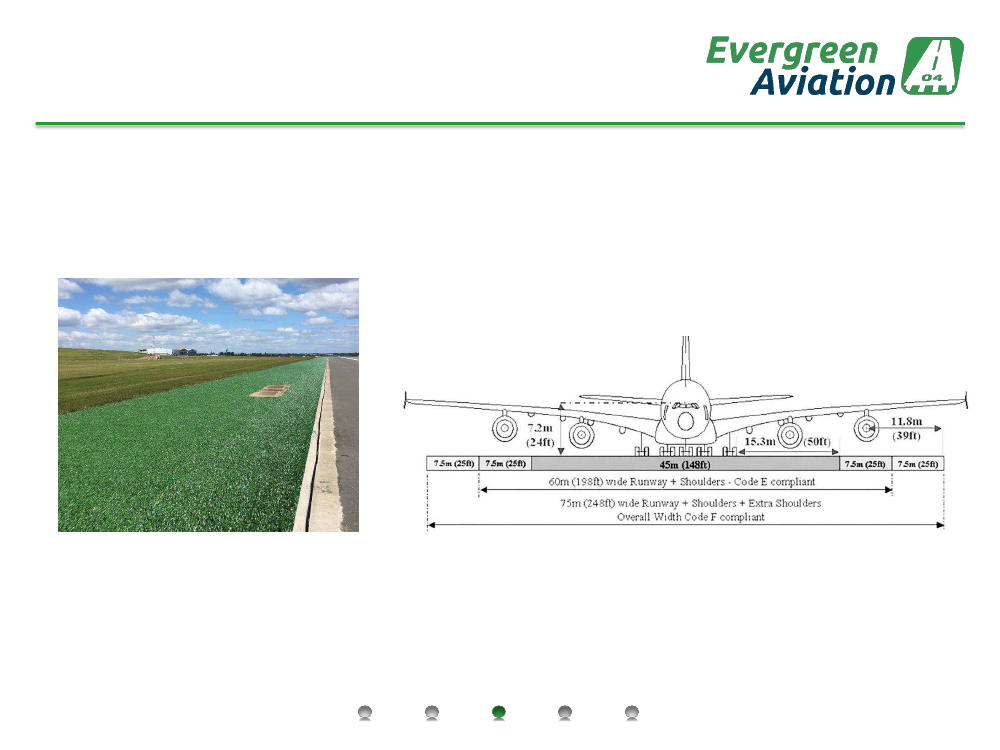

A380
AGAT Applications
Airport upgrade -
To operate the Airbus 380 and similar oversized aircrafts, an airport must
comply with Class F requirements. By using AGAT, the airport category can be upgraded from
Class E to Class F.
05-06-2019
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Edges of Manouvering Areas
AGAT Applications
05-06-2019
AGAT is extremely useful in work areas with high load-bearing demands. The artificial surface has
been designed as a major safety improvement for the world’s airports,
as it improves visual
delineation between movement areas and non-movement areas, solves water-pooling problems, and
controls erosion.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

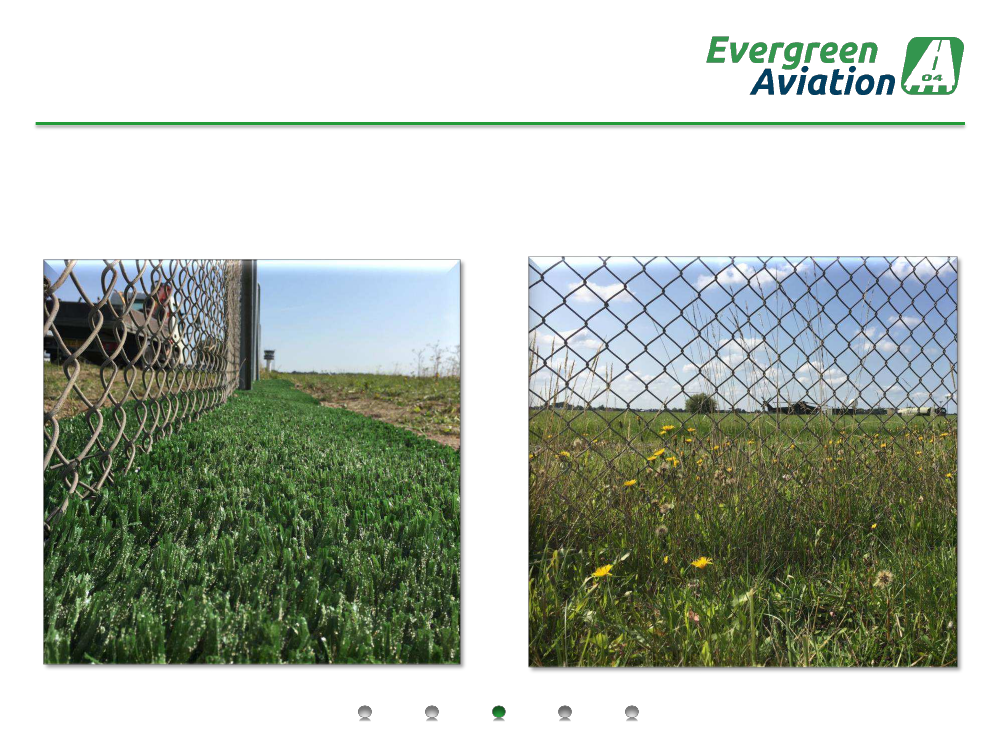

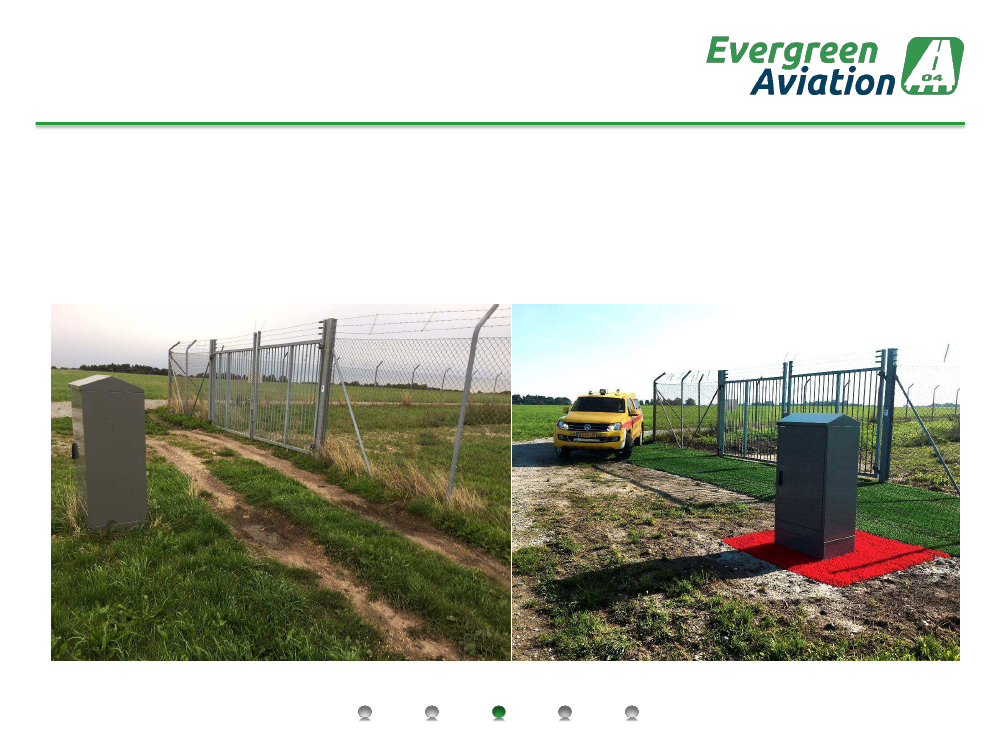

Fences
AGAT Applications
05-06-2019
The bottom wire of security fences around airports are to be kept free of vegetation. This can be done
either by manual labour or with the use of pesticides.
Before
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Fuel Stations
AGAT Applications
05-06-2019
Sand infill in AGAT absorbs any spills of fuel or oil, and contaminated infill can easily be replaced.
The sand infill works as a fire retardant in case of ignited spills on the ground. AGAT is resistant
towards all chemicals found in airports.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
ILS Areas
AGAT Applications
05-06-2019
AGAT can be easily installed on any surface, around existing lamps, signs or other device systems.
It provides a major security improvement because the synthetic turf prevents disturbance and
interference by reducing incursions such as lawn mowing or weeds.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Intersections
AGAT Applications
05-06-2019
A strong base covered with AGAT provides a maximal load-bearing capacity, strong enough for
heavy vehicles to run over without sinking in. It is even strong enough to support aircrafts which
accidentally cuts corners with the inner wheel.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Islands
AGAT Applications
05-06-2019
Cost-benefit analyses, evaluating the construction expenditures against increased safety, increased
aesthetics, and reduced operating expenses, found many AGAT advantages. Incursion reduction is,
for instance, the result of the low maintenance. The nudging effect of AGAT airport islands is
remarkable.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

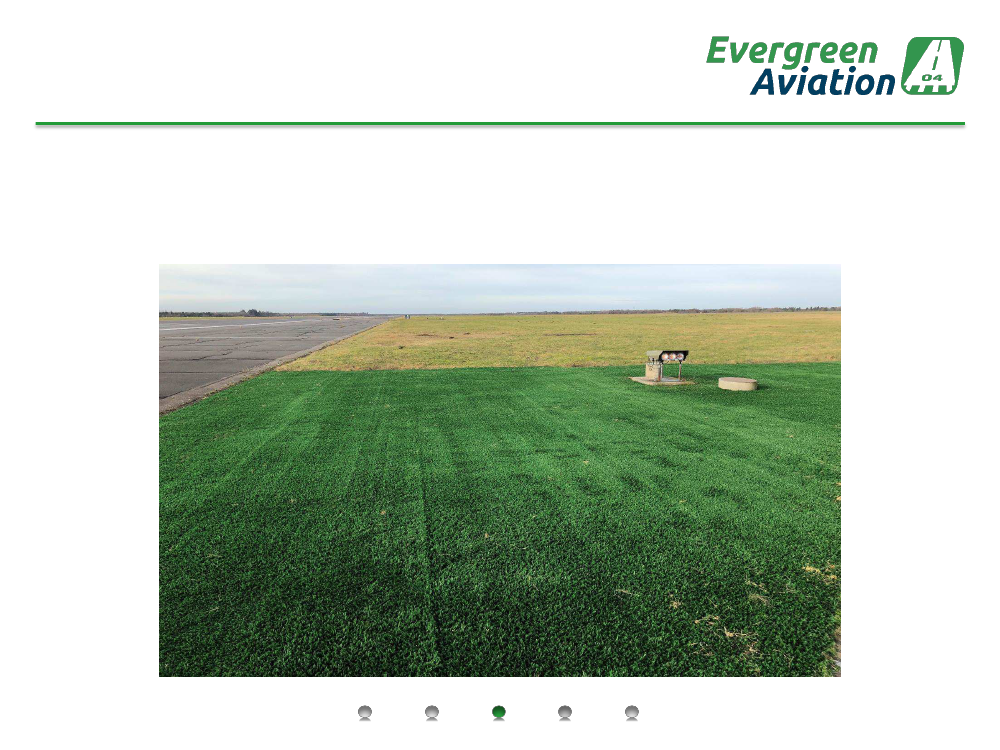

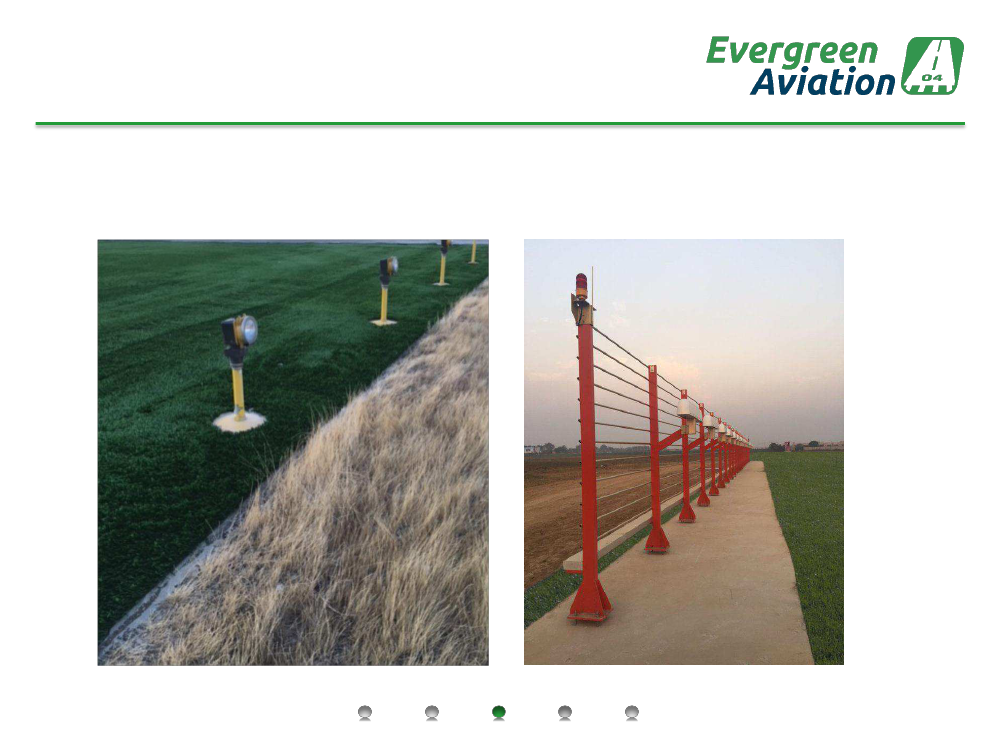

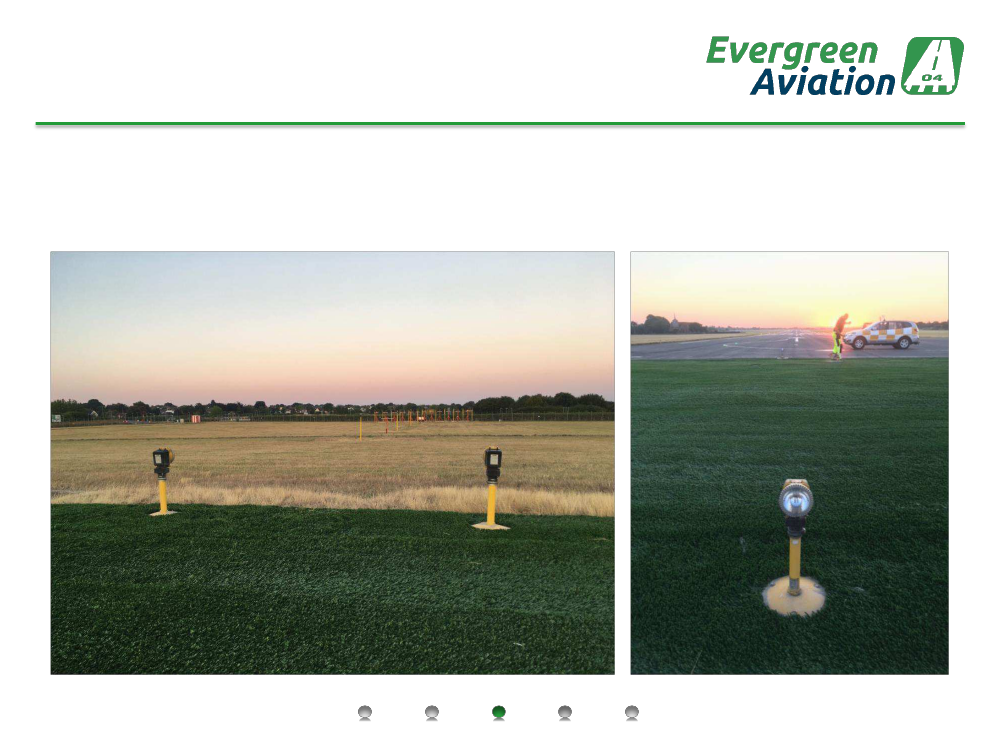

Lamps
AGAT Applications
05-06-2019
Airport lamps are extremely vulnerable to planting. It is of utmost importance that all airport marking
equipment is kept free of any disturbance that may interfere with their functionality.
Installation of AGAT, in accordance with the existing equipment, is trouble-free.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

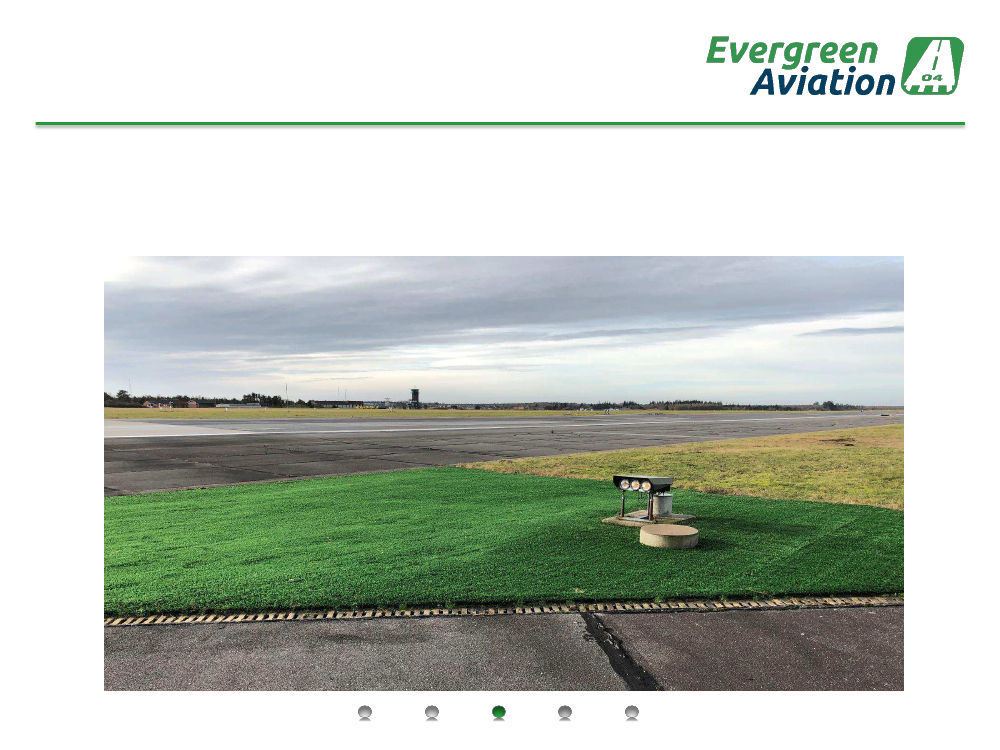

PAPI
(Precision Approach Path Indicator)
AGAT Applications
05-06-2019
AGAT has an economical affordability when it comes to lighting upgrades. It allows for innovation
without interfering with any of the airport's legacy systems which may be worthy of preservation.
The sturdy and reliable stable groundcover prevents disruptive and dangerous blockages and
increases airfield lighting usage.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

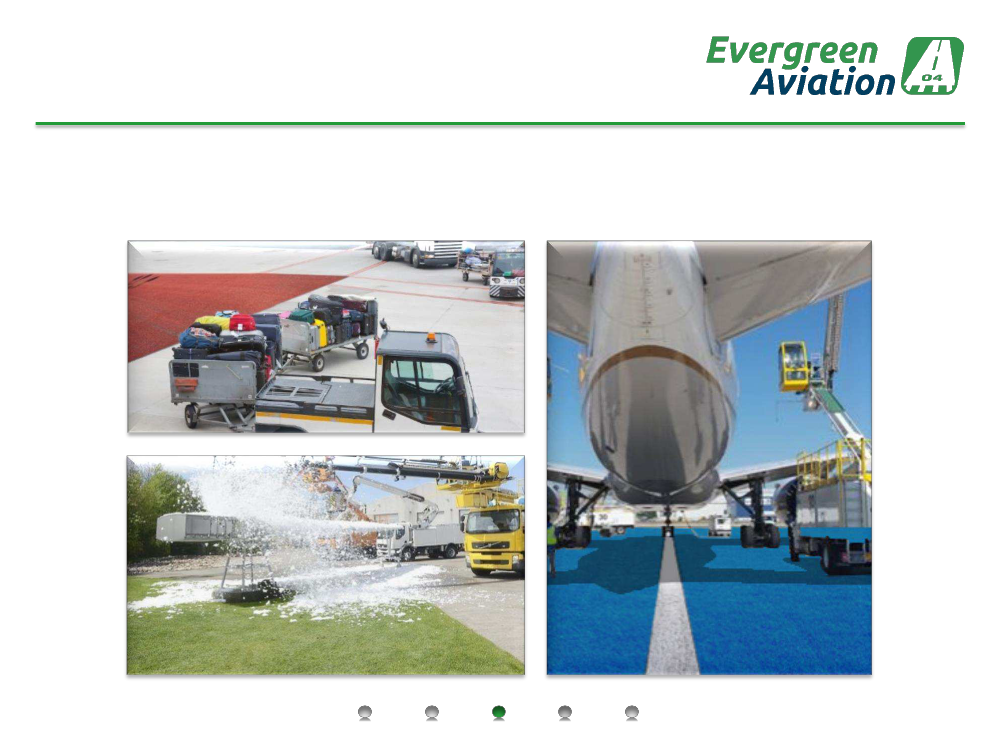

Service Areas
AGAT Applications
05-06-2019
AGAT covered service areas are designed in accordance with each airport's needs and capabilities,
depending on which services the airport wishes to offer.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Service Roads
AGAT Applications
05-06-2019
By installing AGAT on service roads, whether they are made from soil, gravel or paved surfaces, a
number of advantages can be obtained. These include improved visibility, minimised debris and
FOD, and a prolonged lifespan.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

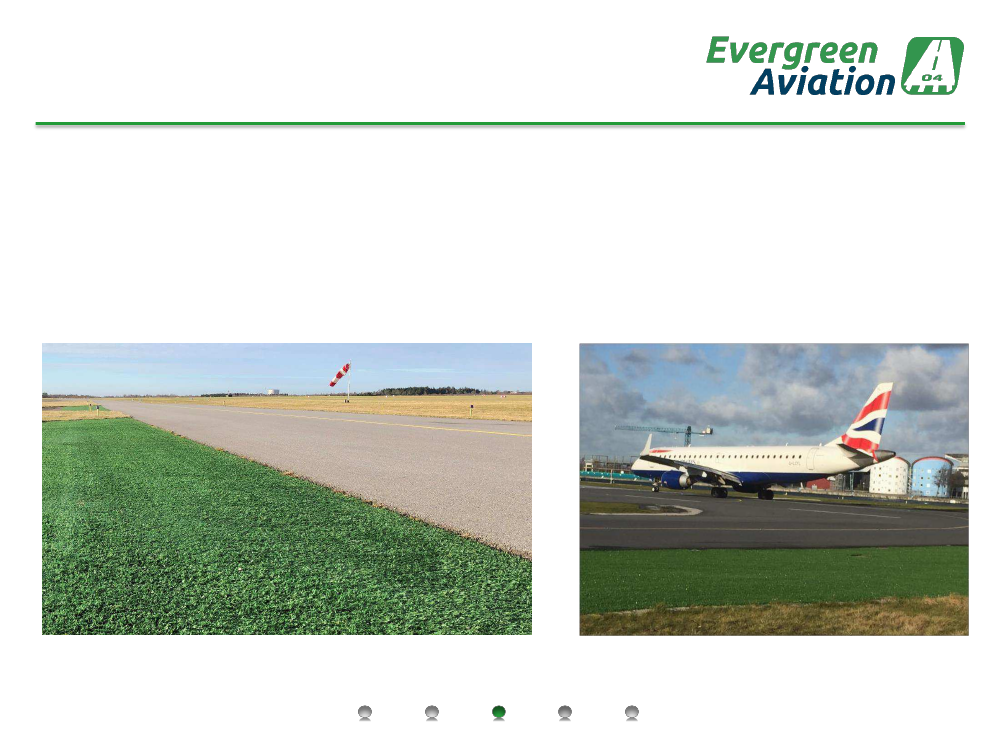

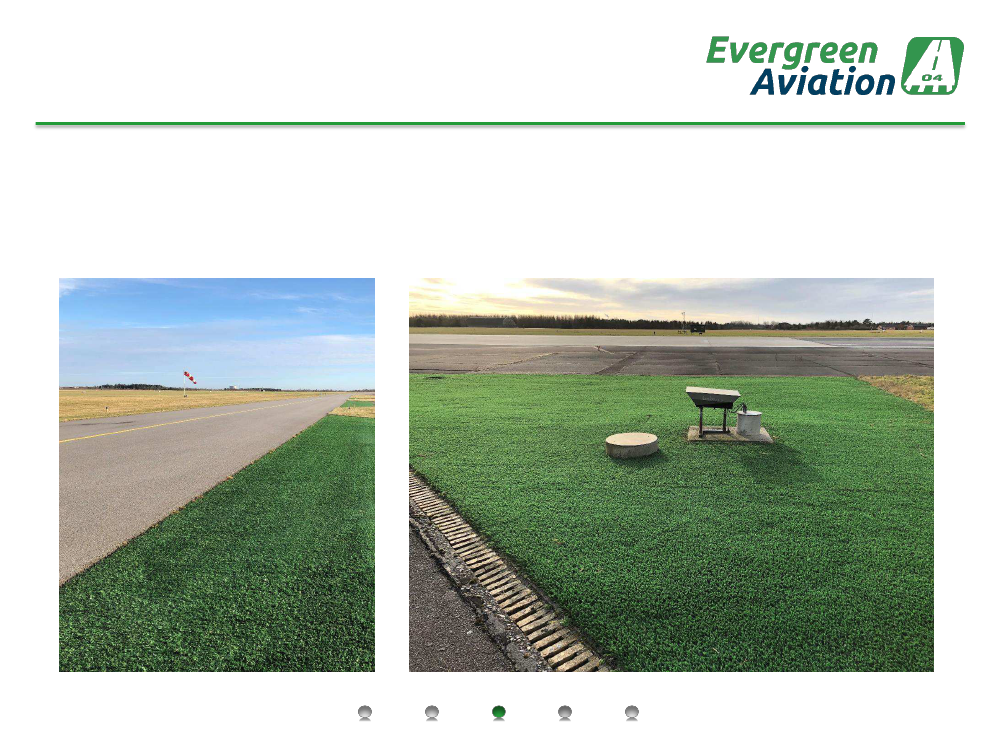

Shoulders
AGAT Applications
05-06-2019
AGAT has been tested for jet blast and ultra-heavy loads, including large aircrafts, and for supporting
emergency response equipment. AGAT meets ASTM installation requirements.
AGAT meets the specifications in the FAA Advisory Circular 150/5370-15B, and has been identified
as a material that can be used to cover large portions of airport property with multiple benefits, such
as providing consistent groundcover, as well as reducing maintenance costs and attractive vegetative
food sources for hazardous wildlife species.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS

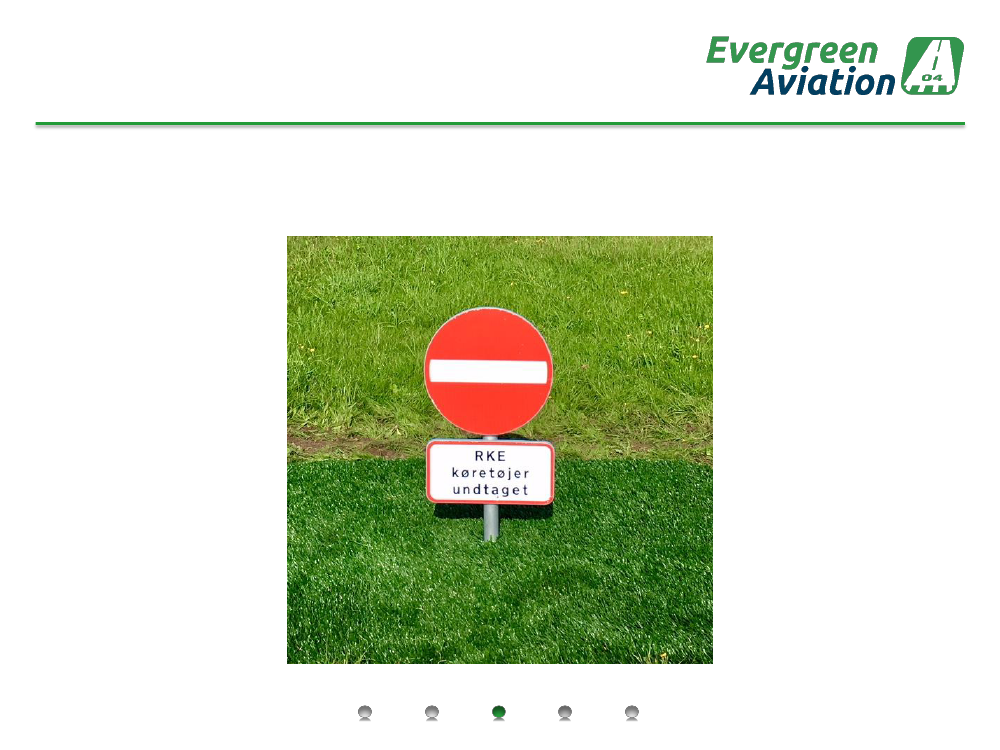

Signs
AGAT Applications
Signs are normally placed in crucial areas in an airport. When AGAT has been installed beneath
signs, incursions are minimized and thereby the security is upgraded.
05-06-2019
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
AGAT Runways
AGAT Applications
A runway paved with AGAT gives the ideal surface to land small and medium-sized airplanes,
regardless of geographical and weather conditions.
05-06-2019
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Runways Markings
AGAT Applications
05-06-2019
AGAT allows markings to be embedded right into the turf. AGAT has been formulated to have a long
life, despite exposure to hard weather and sun. Markings do not fade and they stand bright and visible
across the entre lifetime of the runway.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
AGAT Heli Pad
AGAT Applications
05-06-2019
A helipad is sized in accordance with the largest helicopter schedules for regular use. The Annex 14
describes the helipad size and markings. The entire AGAT helipad surface can be produced off
location, and airlifted to its final destination.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Heli Pitch
AGAT Applications
A useful combination of a sports field and a helipad. Evergreen Aviation holds all official
certifications.
Installation can take place on all surfaces, of all sized, according to local conditions.
05-06-2019
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Hospital Helipad
AGAT Applications
05-06-2019
Often located on hospital grounds or on the roof of a building, AGAT is ideal for hospital helipads
due to its light material and easy installation.
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Referencelist
Aviation artificial turf installations
05-06-2019
 FOU, Alm.del - 2019-20 - Bilag 56: Henvendelse af 23/1-20 vedrørende underlag til flyvepladser og helikopterlandingspladser, fra Evergreen Aviation ApS
Contact
05-06-2019
Evergreen Aviation
Kokkedal Industripark 2A
2980 Kokkedal
Denmark
www.evergreenaviation.dk
Office Phone: + 45 39299999
[email protected]
Nikolaj Duckert: +45 21636353
[email protected]
Mads Lauritzen +45 20854888
[email protected]
