David O. Carpenter, MD
Institute for Health and the Environment
University at Albany
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
What Are the Risks?
Risks to human health:
a. Air contamination with volatile organic compounds (VOCs).
b. Respiratory disease from particulates in diesel exhaust
c. Radioactive materials in flow-back fracking fluid
d. Chemical contamination of ground and drinking water
e. Noise and light pollution.
Risks to society:
a. More HIV and sexually-transmitted disease.
b. Pressure on housing, schools and culture.
c. More crime likely.
Risks to the environment:
a. Harm to roads and bridges from truck traffic.
b. Depletion and/or contamination of drinking and other water
resources.
c. Increase release of methane promoting climate change
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Occupational Risks to Workers
Inhalation of silica particles
Inhalation and dermal absorption of VOCs
Inhalation of diesel exhaust particulates
Exposure to fracking chemicals
Exposure to ionizing radiation
Damage to hearing from excessive noise
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Gaseous Releases with Natural
Gas

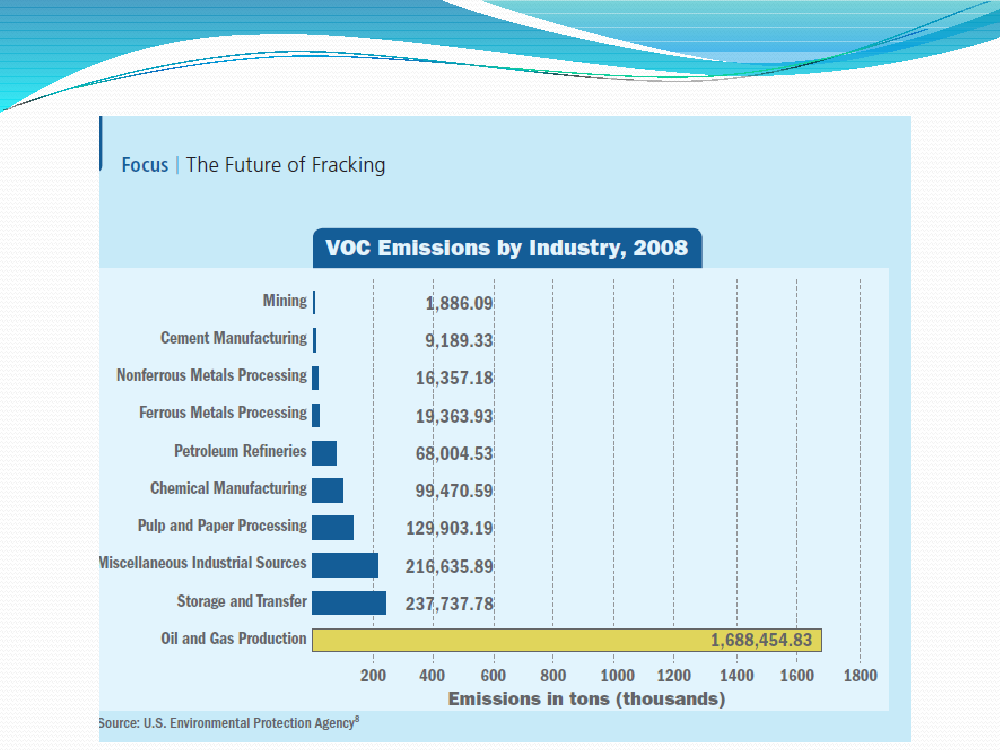

Volatile organic compounds (VOCs): Many including
methane, benzene, methylbenzenes, ethylbenzene,
xylene, pentane, hexane, toluene, 1,3-butadiene and a
variety of aliphatic hydrocarbons.
Formaldehyde.
Hydrogen sulfide.
Radon.
All of the above have adverse health effects on
humans.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Air Pollution Causes Cancer!
The World Health Organization has just declared outdoor
air pollution to be a Group 1, known human carcinogen.
Benzene , formaldehyde and radon are already identified as
being Group 1, known human carcinogens.
Even if health effects are known for exposure to one
environmental contaminant, the effect of being exposed to
multiple contaminants is uncertain. Co-exposure may have
an additive effect or even a synergistic effect.
Cancer has a long latency and effects may not appear for
years.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Air Pollution Causes Other Diseases as Well
Both particulate and VOC air pollution cause
increased risk of asthma, respiratory infections
and chronic obstructive pulmonary disease.
Immediate health effects include headaches,
dizziness, eye, nose and throat irritation, visual
disorders, memory problems, fatigue, nosebleeds
Silica causes silicosis, a restrictive lung disorder.
Some VOCs are endocrine disruptors.
Others cause liver or kidney damage.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Other Human Health Effects of VOCs
Occupational studies report three levels of severity
of VOC exposure on the brain and behavior:
Organic affective syndrome:
Depression,
irritability
Mild chronic toxic encephalopathy:
Fatigue,
mood disturbances, memory and attention
complaints.
Severe chronic toxic encephalopathy:
Loss of
intellectual abilities, impaired judgment and
memory, personality changes
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Formaldehyde
Monitoring at a pipeline compressor station in Lake
Arlington, Fort Worth, TX measured very large short-
term concentrations of formaldehyde
Formaldehyde is a carcinogen that causes nosebleeds,
vomiting, skin irritation, and respiratory effects
Formaldehyde exposure increases risk of asthma in
young children
It can also contribute to rapid ozone formation
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Ozone
Studies have shown that ozone cause inflammation of
the respiratory tract and increases risk of asthma
attacks.
Ozone combines with VOCs to form smog.
Colorado, Wyoming, Texas and Utah have all recorded
ozone levels that exceed federal limits.
Wyoming and Utah have ozone measurements higher
than the worst days in Los Angeles.
May be difficult for some areas to meet the federal limits
until new regulations go into effect limiting flaring and
requiring “green completion” technology.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Particulate Matter
Particulate matter (PM) comes from diesel exhaust from
machinery and trucks, dust from gravel roads.
Prenatal exposure to PM has been associated with low
birth weight.
Exposure during pregnancy and first year of life has been
associated with increased risk of autism.
Elevated PM increases risk of asthma and respiratory
symptoms, such as coughing, difficulty breathing, and
respiratory infections.
People with underlying cardiovascular disease are at greater
risk of death on days with elevated particulate air pollution.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16

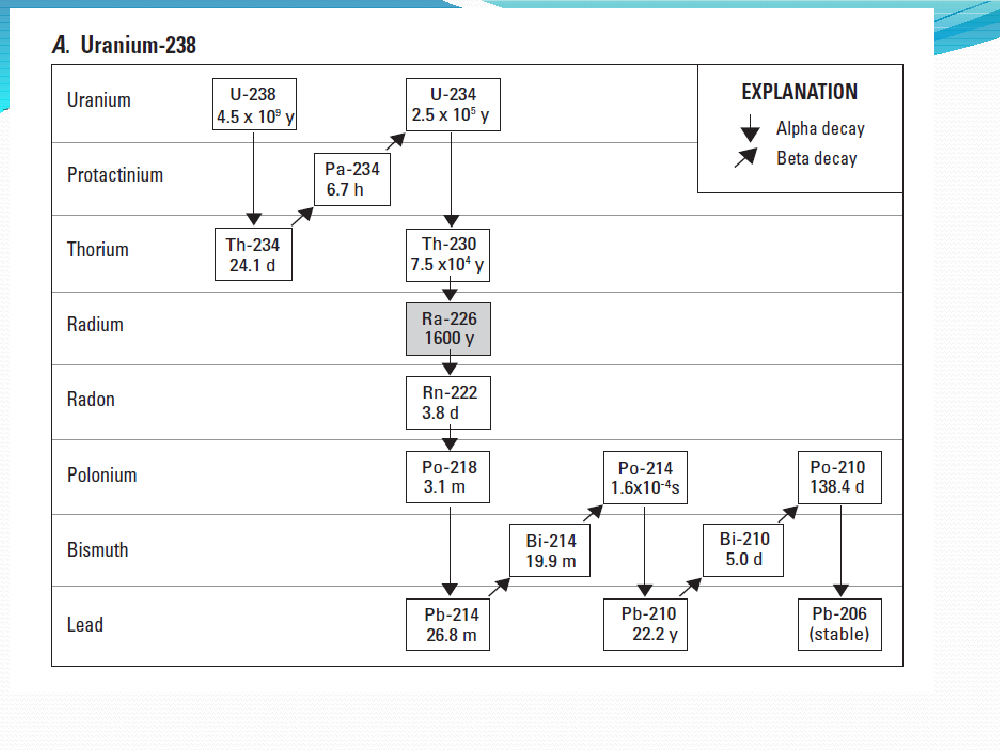

Radium 226 and 228
Radioactive elements like uranium, thorium and radium
occur naturally in rock, but are at higher concentrations
some places than others. This is a particular concern in the
Marcellus Shale.
While radium is water soluble, thorium and uranium are
less soluble but can come to the surface as drilling waste
during fracking and concentrate in pit sludge.
Radium behaves similarly to calcium, and can
bioaccumulate in human bones and teeth and can lead to
bone and other cancers like leukemia.
Radium decays to radon gas which can be inhaled and
result in lung cancer.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16

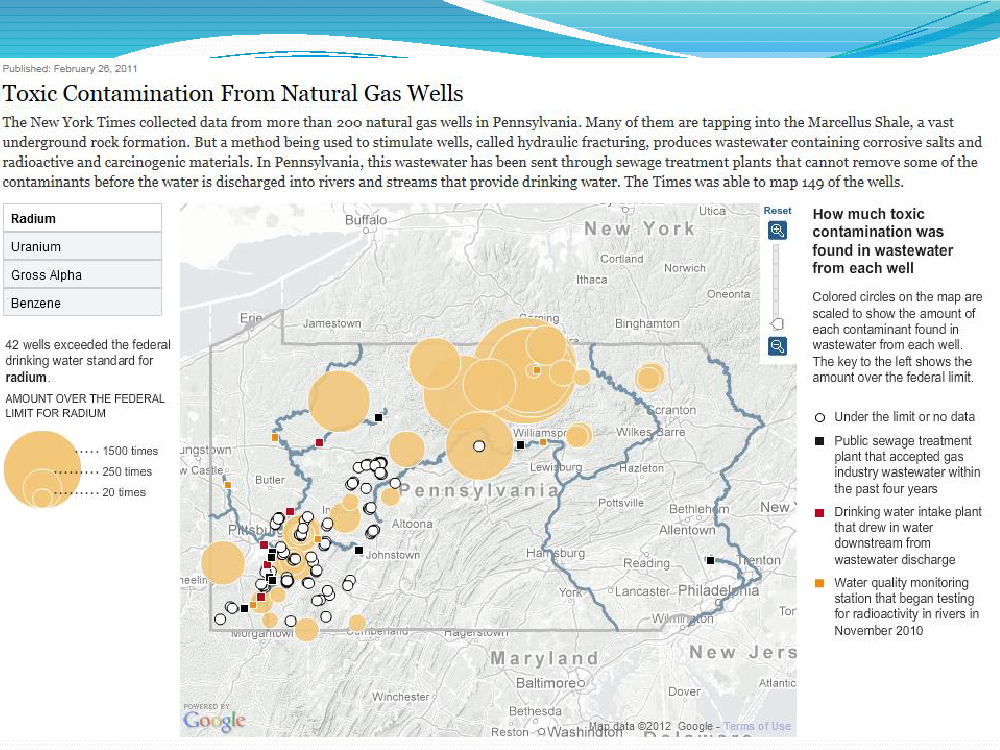

Radioactivity in Flowback Water
In 2011 the NY Times reported that of more than 200 gas
wells in Pennsylvania, more than 170 were producing
wastewater with high levels of radioactivity, with levels
more than 100 times the federal drinking-water standard in
116, and more than 1,000 times higher in 15.
Some fracking brine has been found to be 300 times more
radioactive than the NRC limit for industrial discharge to
water from nuclear power plants.
Under federal law radioactivity is tested only in drinking
water, but in Pennsylvania that is required only once every
six or nine years!
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
What is Being Done With
Radioactive Fracking Fluids?
In Pennsylvania it is being spread onto roadways to
reduce ice, since it contains high concentrations of
salts. In most cases the level of radioactivity is not
even being determined! The radioactivity will wash off
the roadway into waterways and be partially retained
by soils.
Some goes to waste water treatment plants.
Some is stored in containment ponds.
Some is injected into the earth.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Dangers to Humans from
Wastewater Discharges
Some sewage treatment plants in
Pennsylvania accepted fracking fluid with
2,122 times the radioactivity allowed in the
drinking water standard. But they are not
even required to test it.
Even if the radioactivity doesn’t get into
drinking water, if discharged it can get into
fish that people eat.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Radon as a Contaminant
Radon is a gas, and a product of decay of Ra-226. It has a
half-life of 3.8 days. Radon levels in Pennsylvania gas
samples ranged from 1-79 pCi/L (median 32 pCi/L), which
is 8x higher than the EPA standard for indoor air.
M. Resnikoff calculated that radon from Marcellus Shale
gas pipelines and being released by natural gas burned in
homes in New York may result in between 1183 and 30,484
new cancer cases.
Smokers are at higher risk of lung cancer due to synergistic
effect of radon and smoking.
One solution is to store natural gas for a period before
sending it down the pipe.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
How Likely is Ground Water
Contamination?
The fracking is done much deeper than ground water. But
the danger lies in damage to the concrete linings of the
well.
There are high levels of hydrogen sulfide in fracked gas.
Hydrogen sulfide degrades concrete in addition to being
toxic to humans.
Sooner or later that concrete will degrade and leaks will
occur at depths associated with ground water. The result
will be contamination with chemicals and radiation.
We don’t even know what the chemicals used are. Colborn
et al. (2011) identified 632 different chemicals used at
different sites.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Noise and Light Pollution
In interviews with residents in areas where fracking is
ongoing one of the most common complaints is noise
and light pollution. Drilling a mile down through rock
is very noisy, and goes on 24/7. When operation is
ongoing there are diesel trucks 24/7. There are bright
lights 24/7 during this whole period.
Noise and light pollution cause stress, increase risk of
heart disease and cause sleep disruption.
 EFK, Alm.del - 2016-17 - Bilag 100: Internationale oplæg fra høring om skifergas den 30/11-16
Summary:
There are a number of serious potential adverse health
effects associated with fracking if it is not done safely.
The most serious long term danger is cancer from
VOCs like benzene and formaldehyde and from
radioactivity.
VOCs at concentrations seen even at some distances
from franking wells have serious effects on the nervous
system, and alter other physiological functions as well.
Radium pollution poses long-term health hazards.
Drinking water supplies, while not greatly threatened,
must be protected from chemicals and radi0activity.
