BATTERY-DRIVEN
BOMBARDIER ELECTROSTAR
Electrical multiple unit
ELECTROSTAR electrical multiple unit in operation on British railways
ALTERNATIVE DRIVE CONCEPTS FOR
ENVIRONMENTAL FRIENDLINESS
The first battery-powered train to run on UK’s rail
network in more than half a century began passenger
service in January 2015, marking a game-changing
development in the field of eco-friendly public
transportation viability.
Battery-powered trains will offer a real alternative in
areas where diesel or electrified rail services are not
suitable; for example, in rural areas where there are
gaps in the overhead wire system and where diesel
normally would have to be implemented.
PROPULSION & CONTROLS
 PDF to HTML - Convert PDF files to HTML files
A NEW PROPULSION CONCEPT
The project is part of a research program, funded
by Network Rail (NR). Bombardier received this
refurbishment order in competition with other train
suppliers and could provide a solution with a short
time-frame – seven months design phase – by
modifying an existing Class 379 train leased from
Abellio Greater Anglia.
The target is to operate a 185 tons four-car
BOMBARDIER* ELECTROSTAR*
train on battery
up to 120 km/h for a distance of up to 50 km,
which requires battery capacity in the range of up
to 500 kWh. The design solution charges the
batteries with the existing line converter equipment
and connects the motor converters to the batteries
when the 25 kVAC overhead line is not available.
The lithium-ion batteries weigh less and can charge
more quickly than industrial-form batteries, such
as those used in automobiles.

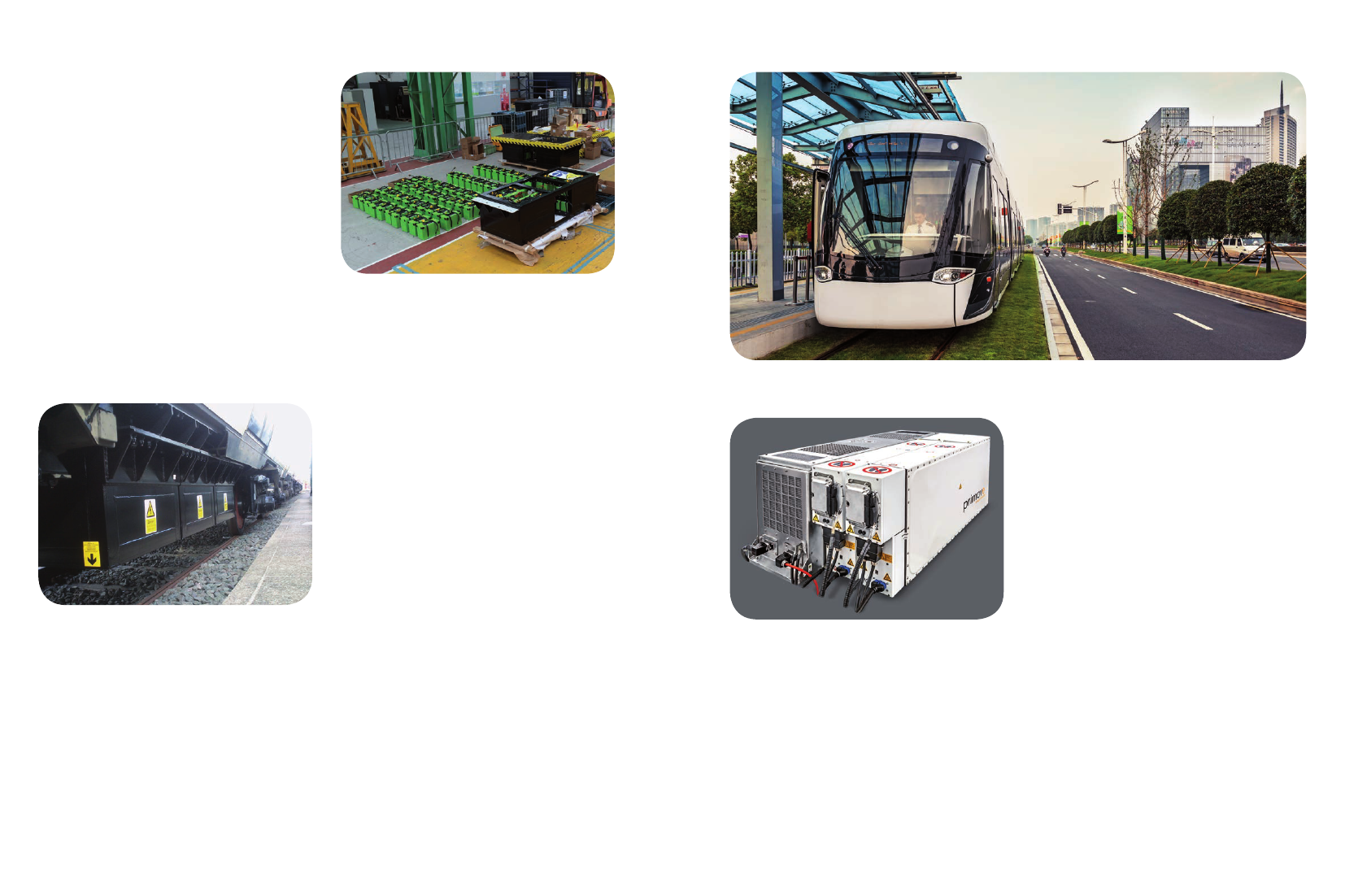

Batteries and assembly in one of six rafts
THE PROJECT SETUP
The retrofitted
ELECTROSTAR
train was modified at
Bombardier’s site in Derby, UK and converted into
what is referred to as an Independently Powered
Electric Multiple Unit (IPEMU). This IPEMU can now
be driven either under 25 kVAC-networks or with
batteries.
The catenary-free operation tram for Nanjing is based on BOMBARDIER* FLEXITY* 2 tram technology, equipped with the
PRIMOVE lithium-ion traction battery systems for trams, MITRAC* propulsion equipment and FLEXX* Urban 3000 bogies.
BATTERIES INCLUDED: WHY NOW?
The battery-powered train project will not only
benefit retrofitting techniques for future IPEMUs,
but also assist future technological and design
development in creating trains solely intended to
operate on rechargeable battery power. Project
partners include service operator Abellio Greater
Anglia, industry research group Future Railway as
well as Britain’s Department for Transport.
Bombardier’s objective in this project was to offer a
fully integrated and flexible IPEMU technology to
meet customer aspiration and needs. Those included
Mounting of three battery rafts on the
ELECTROSTAR train
The technology for battery-powered locomotives has
existed since around the 1930s, and as an example, is
currently used in maintenance locomotives for track
improvement work for the London Underground in
the UK. This innovation in battery-powered passenger
rail proves how serious the rail industry is considering
eco-friendliness in the future and marks an innovation
milestone.
The main benefit of long distance battery operation
is that the train can bridge parts of the network that
are not electrified. They can also use branch lines
where it is not cost-effective to install overhead
Modular PRIMOVE battery system for trams and
light rail vehicles
developing a product that gives carryover potential,
risk reduction, advance technology readiness,
knowledge of vehicle integration/interfaces and
battery performance.
electrification. Existing diesel trains can also be used
in a more flexible way which increases rolling stock
capacity.
Another successful application of Bombardier’s
advanced battery technology is the introduction of
the
BOMBARDIER PRIMOVE-based,
catenary-free
operating trams in Nanjing, China. They entered
regular passenger revenue service just in time for
the Youth Olympic Games in August 2014.
 PDF to HTML - Convert PDF files to HTML files

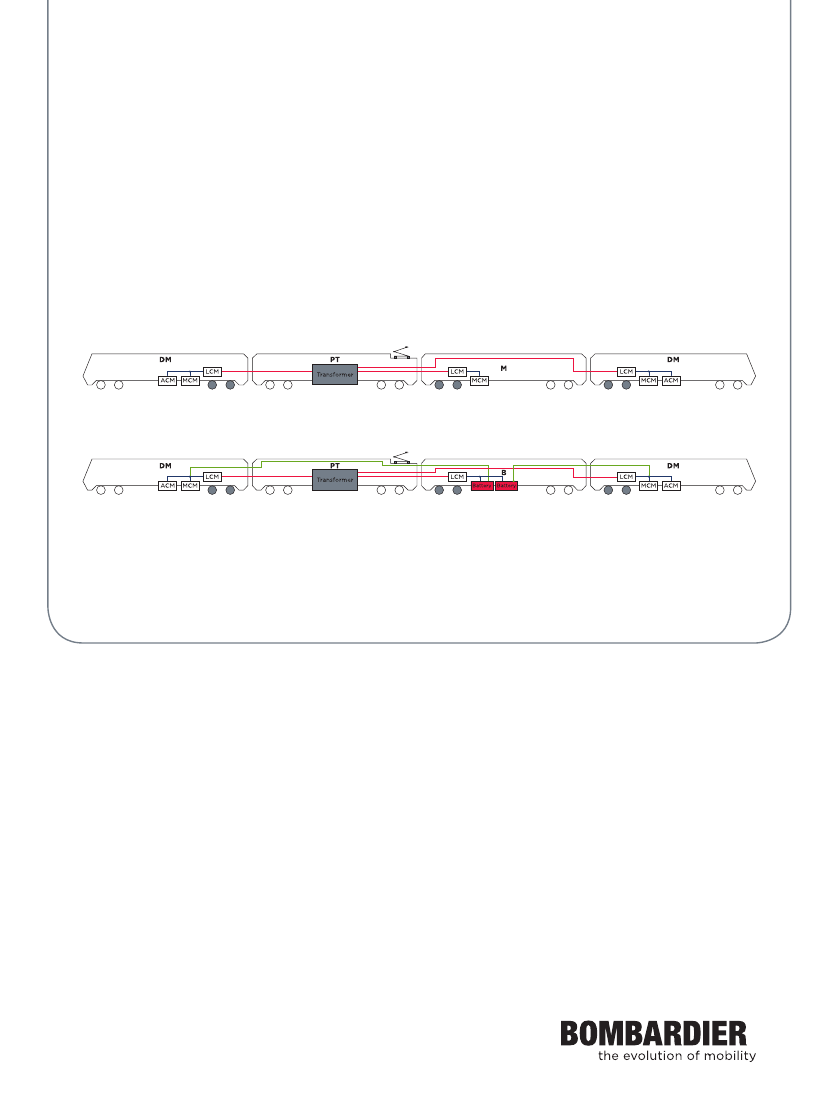

Before and after modification
to battery-driven mode
Before modification
After modification
