ASFINAG ENFORCEMENT SYSTEMChristof MauerekASFINAG Maut Service GmbHVienna, October 30th, 2012
MLFF System - Enforcement
• Key part of the system concept• Responsible for controlling of correct toll payment:• ASFINAG Enforcement Gantries• ASFINAG Enforcement Center• ASFINAG Toll Enforcement Officers (SKD)
ASFINAG Enforcement System•Stationary Enforcement (EC):•111 Stationary enforcement stations(SKE)
•Manual Check (Go-Box and toll sticker)•handling of special cases and exemptions•Consignment of penalties (substitute toll)
•Mobile Enforcement (SKD):•43 mobile units (MKE), 110 Officers•34 Portable enforcement stations (PKE)•Traffic control areas (VKPL)330.10.2012
Substitute Toll conceptASFINAG is no public authority, therefore, in case of adetectedtoll violationno fine is imposed but as a legal settlement asubstitute toll is offered:•€ 220,- for non-payment of GO-Toll•€ 110,- for false payment of GO-Toll•€ 120,- for no valid toll stickerIf the substitute toll offer is rejected an administrative penaltyproceedings is opened.
430.10.2012
Enforcement of Vehicles > 3,5 t taw
Enforcement RSEoverview cameralaser scannerbeaconfront camera
630.10.2012

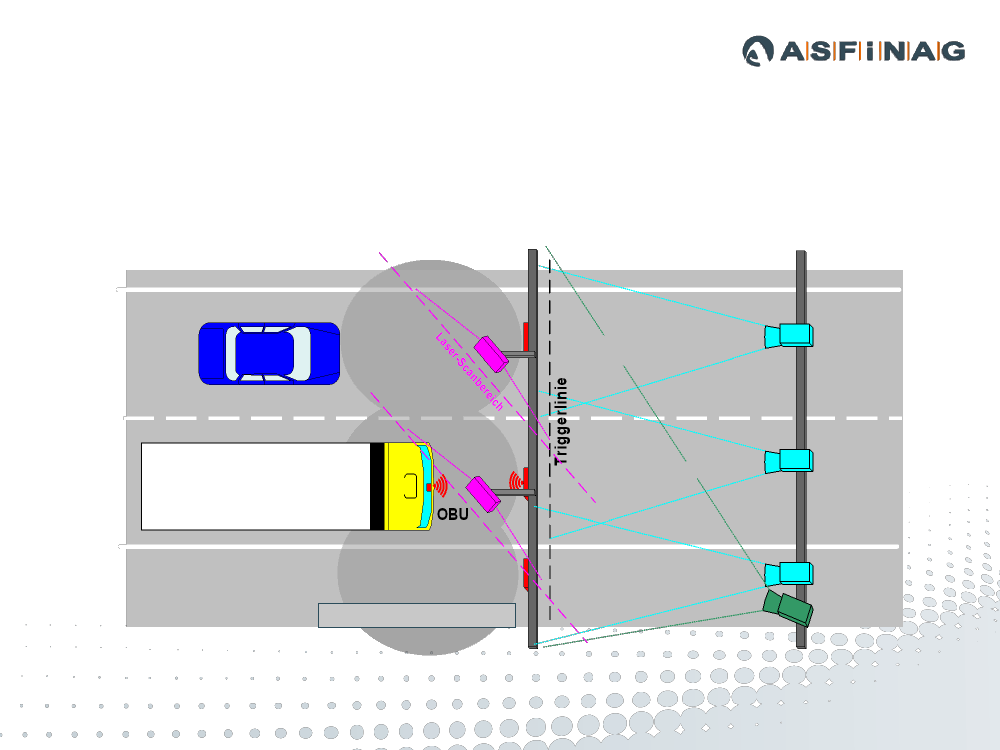

Enforcement RSE•Operating mode of RSE
Lane 2
Lane 1
Emergancy lane
Communication zone
730.10.2012

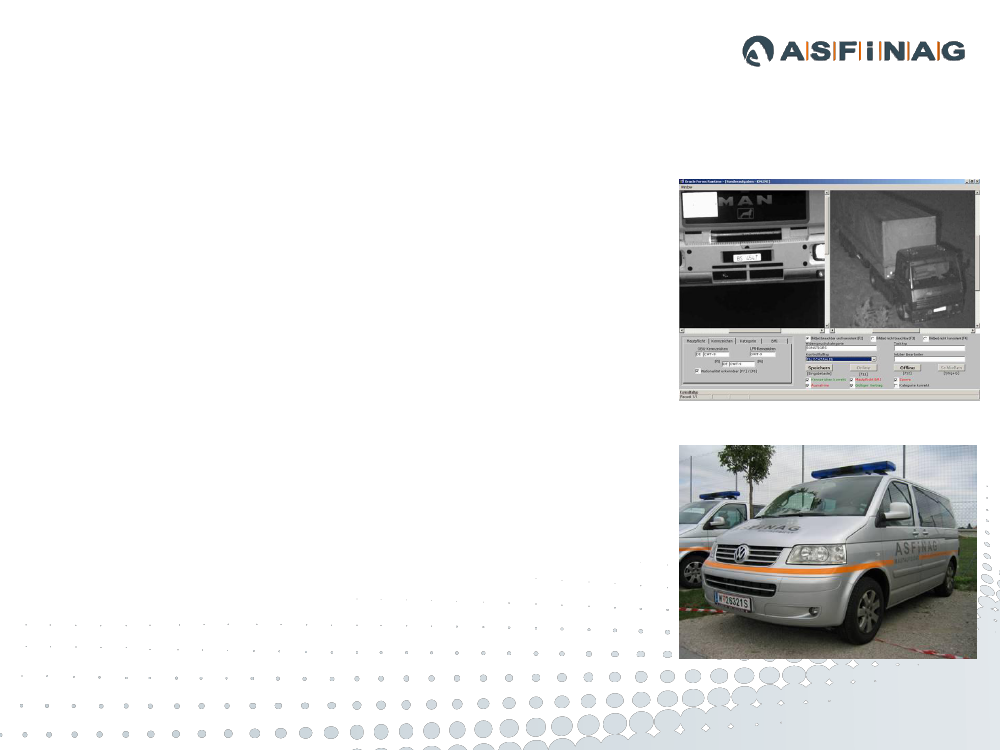

Enforcement Center - Tasks of the manual checkConclusiveness of pictures:licence plate number clearlyidentifiableCheck on toll obligationComparing declared vehiclecategory with actual totalnumber of axlesQuality assurance by 100%verification
Avoiding unjustifiedenforcementIncluding permanentexemptions in the exemptionlist
8
•Enforcement of Vehicles < 3,5 t taw
Enforcement of Toll Stickers in Austria•Automatic Toll Sticker Control (AVK)•Mobile enforcement – Toll Enforcement Officers (SKD)•Executive (police)
Automatic Toll Sticker Control (AVK) (1)•Portable, automated control of time depending toll for onelane•Vehicles below 3,5t taw•Exempt motorcycles•Detection of mounted toll stickers
•Recording of pictures and license plate data of suspiciouscases (no or no valid toll sticker)•Processing of data in the Enforcement Center
•Currently 8 Systems in operation11
Automatic Toll Sticker Control (AVK) (2)•Installation of the eqipment at ascendable Toll gantries•Relocation follows predefined schedules•Recording of pictures and license plate data of suspiciouscases only•Automatic prevention of double fining AVK/ TollEnforcement Officers /Police
•Preference of locations with limited or no possibility for TollEnforcement Officers to divert moving traffic•Preference of high traffic locationsVerlässlichkeit auf allen Wegen12

Automatic Toll Sticker Control (AVK)

Two system generations in Operation:

AVK Siemens (2008)
2008:Two units fromSiemens2010:Three units fromEfkon2012:Another Threeunits from Efkon
AVK Efkon(2010 u. 2012)

Overview

picture incl.

license plate

14
Detail picture – zoom on toll sticker
Goodvisibility ofpunchedholes formonth andday
15

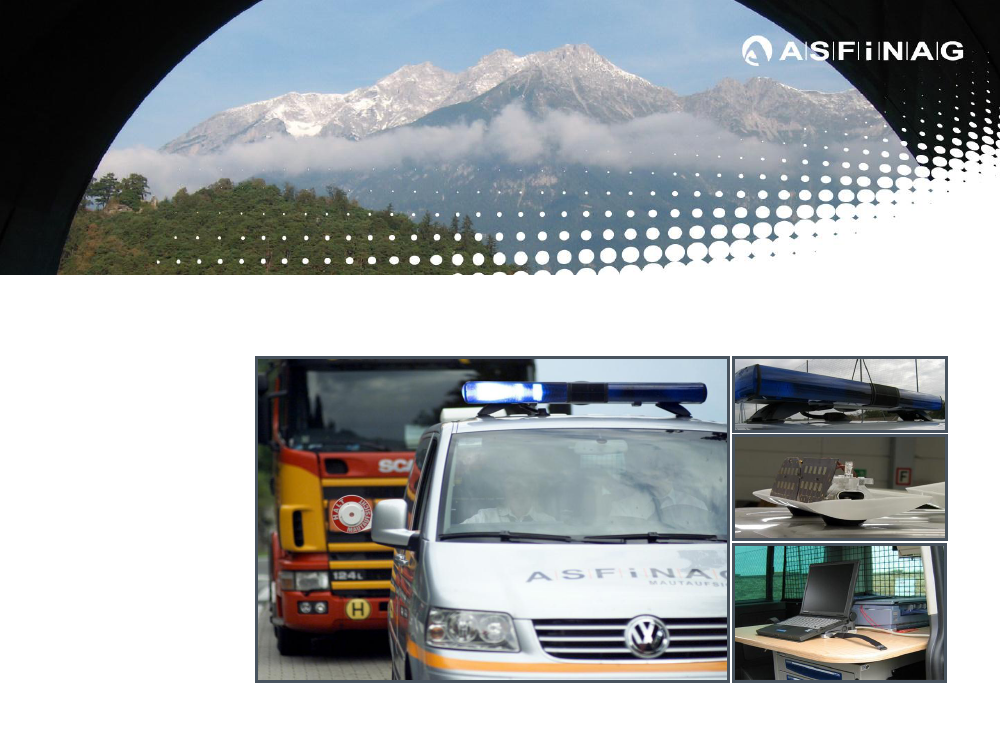

Mobile Enforcement: Toll Enforcement Officers
Mobile enforcement - SKD•Authorisation to•escort suspect vehicles out of the moving traffic and to stopthem•collect toll•to levy a substitute toll and, if necessary, to prevent thevehicle from continuing on its journey•give advice (first aid, information etc..)
1730.10.2012
