TRIKE-FLASH
�
OWNER'S MANUALCopyright by
FLYProductss.r.l.
Via Perù n. 3063013 GROTTAMMARE (AP) - ITALYtel./fax +39.735.632486
www.flyproducts.com-?[email protected]
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
Page23334445667111211121315151617171717192020
DescriptionINDEXINTRODUCTION AND GENERAL INFORMATIONSAFETY FIRST! - WHO, WHERE AND WHEN CAN FLY IT.NOTATION USEDCONGRATULATIONS ON YOUR NEW “TRIKE-FLASH”“TRIKE-FLASH” FEATURESDIAGRAM OF COMPONENTSOVERALL DIMENSIONSASSEMBLING YOUR “TRIKE-FLASH”ASSEMBLY INSTRUCTIONSFIRST TIME ENGINE MOUNTING SETUPTANDEM VERSIONASSEMBLY INSPECTIONPREPARING YOUR FIRST FLIGHTPRE-FLIGHT INSPECTIONPRE-FLIGHT CHECKLIST EXAMPLESFLIGHT UNDER SPECIAL CONDITIONSDANGEROUS SITUATIONTAKE-OFF PROCEDURETHE FLIGHTLANDINGMAINTENANCEREGULAR CHECKSPARAGLIDERWARRANTYINTERNET INFO AND UGRADE
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page2
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
Safety first, WWW! (Who, Where and When can fly it)TheTRIKE-FLASHwith Powered Para Gliding (PPG) is the most exciting, least expensive, safest, andmost accessible form of aviation available! However, it is still aviation, and it brings with it all theinherent potential dangers of aviation. People can, and do, get hurt, and even killed, in any form ofaviation, including Para Trike. For that reason it is imperative that before fly with this Para Trike youmust receive proper training from qualified instructors and obtain a valid PPG license, an then offer ParaTrike the respect all aviation deserves, respect weather and conditions, and realize that in the end, it isthe pilot himself that is fully responsible for his own safety and the safety of fellow pilots andbystanders.Depending on every national regulations, the Para Trike may only be operated in authorized areas andflights within controlled airspace usually needs a permission given by radio.Additional requirements like a valid insurance must be fulfilled.Powered Paragliding is an extremely demanding sport that requires exceptional levels of attention,judgment, maturity, self-discipline, and attention to detail. It is unlikely that you will be able toparticipate in it safely unless you make a conscious and continual commitment to your own safety.Due to the inherent risks in flying this or any Para Trike, no warranty of any kind can be made againstaccidents, bodily injury, equipment failure, and/or death.This TRIKE-FLASH is not covered by product liability insurance.Do not start it or fly it unlessyou are willing to assume all risks inherent in the sport of Powered Paragliding and all responsibility forany property damage, injury, or death which may result from the use of this product.
Notation UsedCertain special terms (NOTE,CAUTION, WARNING)will be used throughout this manual. Their usageis defined below.ANOTEprovides supplemental information to help clarify a point being made in the text. Generally, aNOTEis provided to help assembly, use, or maintenance of the product.Disregarding aNOTEcould cause inconvenience, but would not cause damage or personal injury.ACAUTIONprovides supplemental information to help clarify an area where equipment damage couldoccur. Disregarding aCAUTIONcould result in permanent and significant mechanical damage,however personal injury is unlikely.AWARNINGprovides supplemental information to help clarify an area where personal injury or evendeath could occur from negligence. Disregarding aWARNINGcould result in serious injury or evendeath.
Congratulations on Your New “TRIKE-FLASH”FLY PRODUCTS presents a very light Trike for paramotor. The main characteristic of the TRIKE-FLASH it's great versatility.___________________________________________________________________________�Copyright byFLYProductss.r.l.Page3
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
The certification is planned for theGOLD 130Engine PPG unit.For safe flying you should read this manual carefully, make yourself familiar with theTRIKE-FLASHand its possibilities.
TRIKE-FLASH features?????Easy assembly and disassemblySimply to useVery lightnessBig stoutnessExtremely reliable
Diagram of Components
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page4
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0

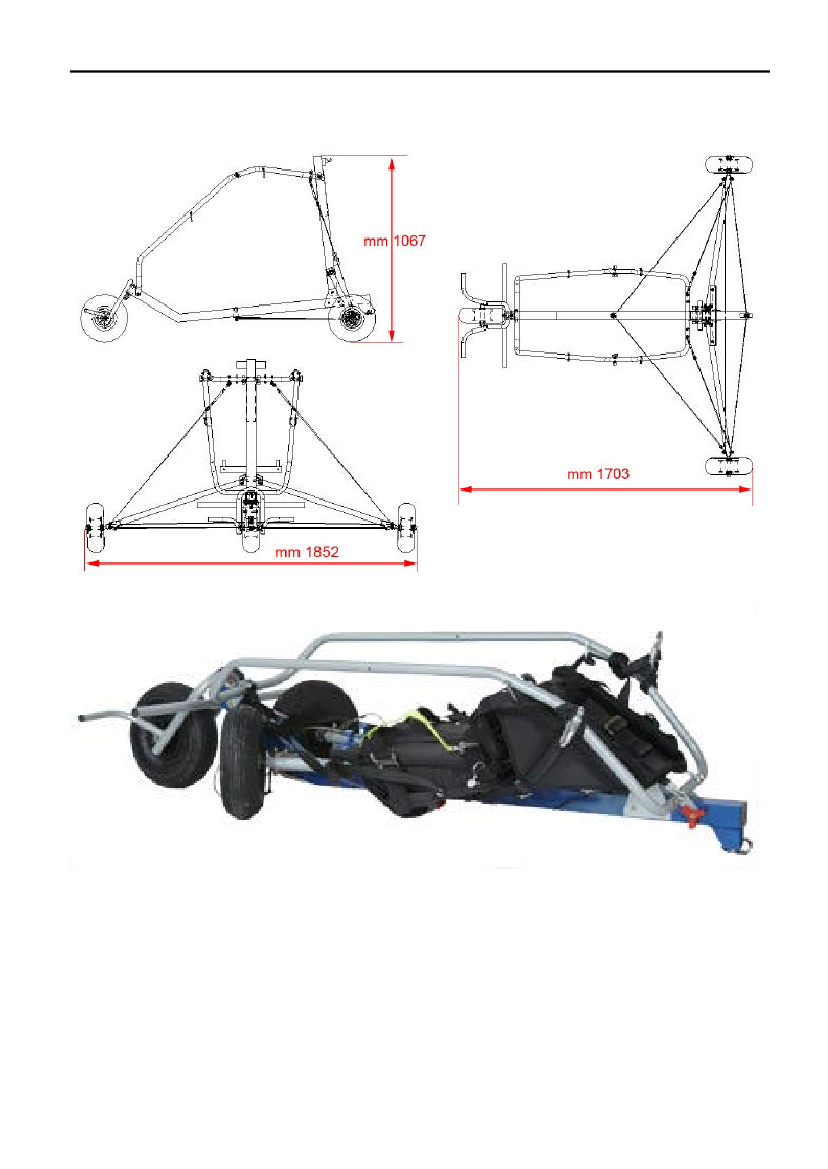

Overall dimensions
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page5
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
Introduction to frame drilling for engine mountingWe deliberately omitted the frame drilling for mounting our GOLD 130 homologated engine to allowthe mounting of a different engine model.You must carry out the drilling operation in any case, follow the next indications:
Necessary tools to operate:- Drill- Metal drill points Ø 10 mm and Ø 6,5 mm.- Hammer- Rapid glue
ASSEMBLING “TRIKE-FLASH”For easier storage and transportation the Trike- flash can be folded to the minimum size.
Assembly instructions:
Unscrew the red plastic wing nut and hook rear wires
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page6
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0

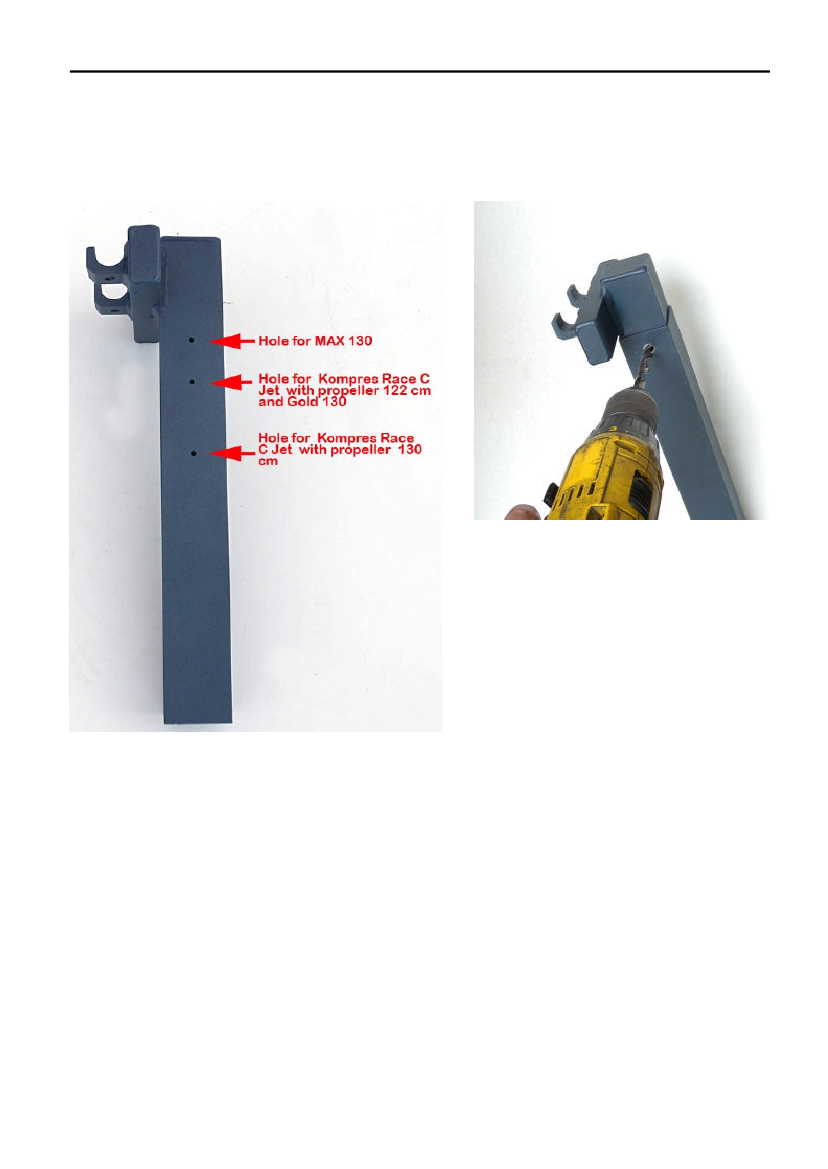

REMEMBER:Insert this part as you can see in the photo and enlarge the hole for your model with
Metal drill point of Ø 10mm.

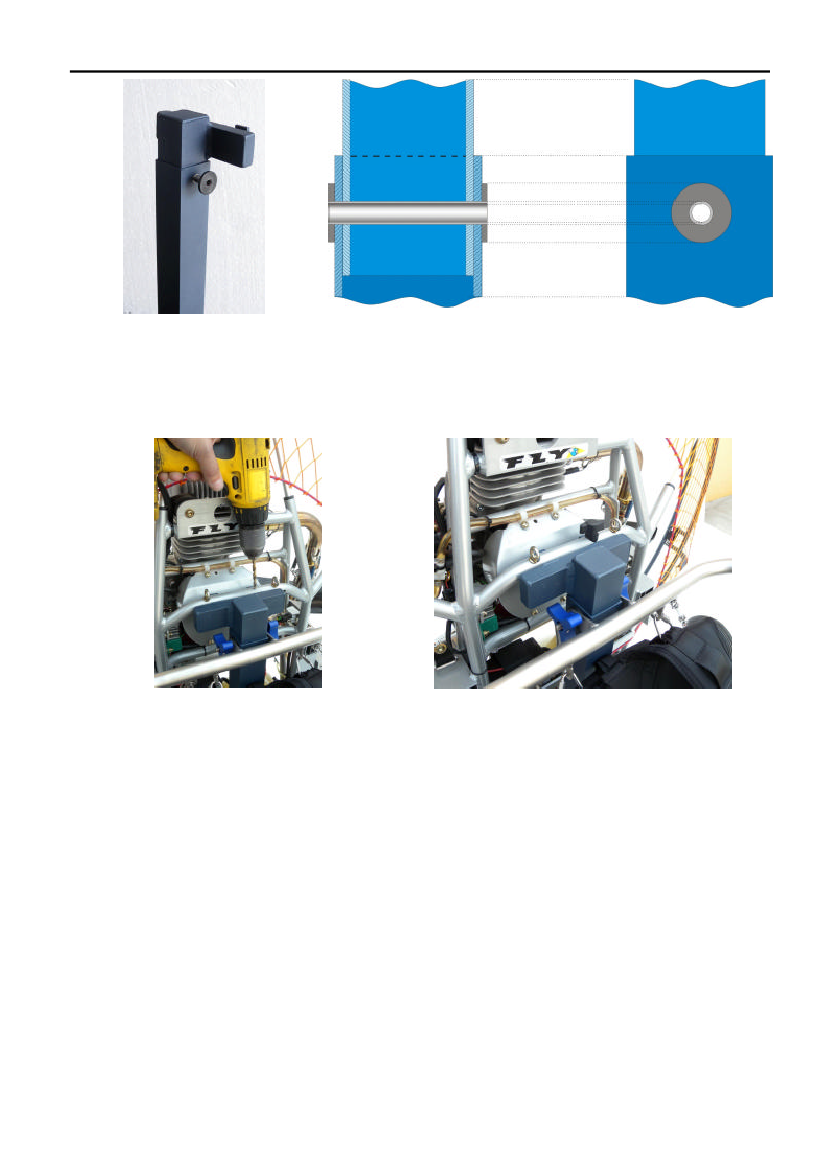

Side drill purpose is to fit therea through-pin, with two reinforcement washers, for prevent a box girder buckling when the uppercradle will lock in that point.
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page7
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0

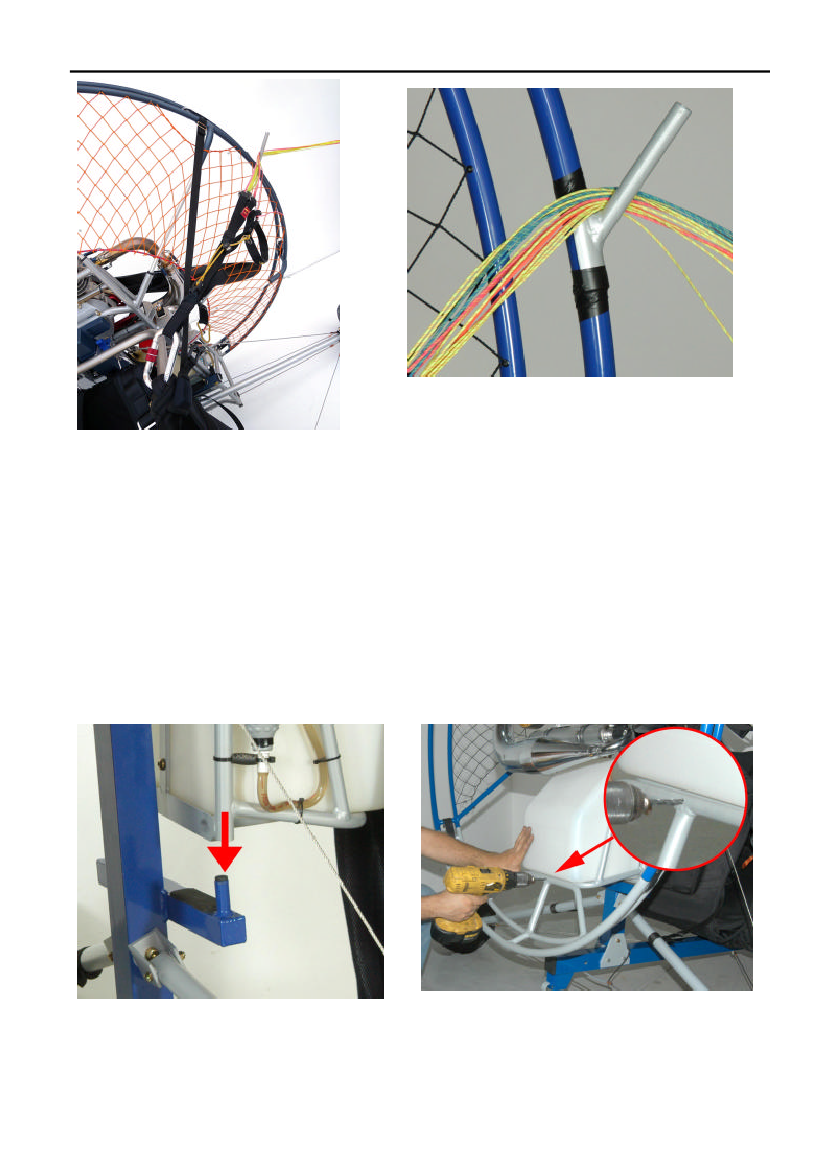

MAX 130 – KOMPRES - RACE C - JETFirst step, when the engine mounting is well positioned, drill an hole-through Ø 6,5 mm on the engineframe (between the two eyelets) in correspondence to the preset hole in one of the two hooks.
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page8
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page9
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
GOLD 130The lower engine frame drilling for to apply the special cage section expressly projected for theGOLD 130 unit.
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page10
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0

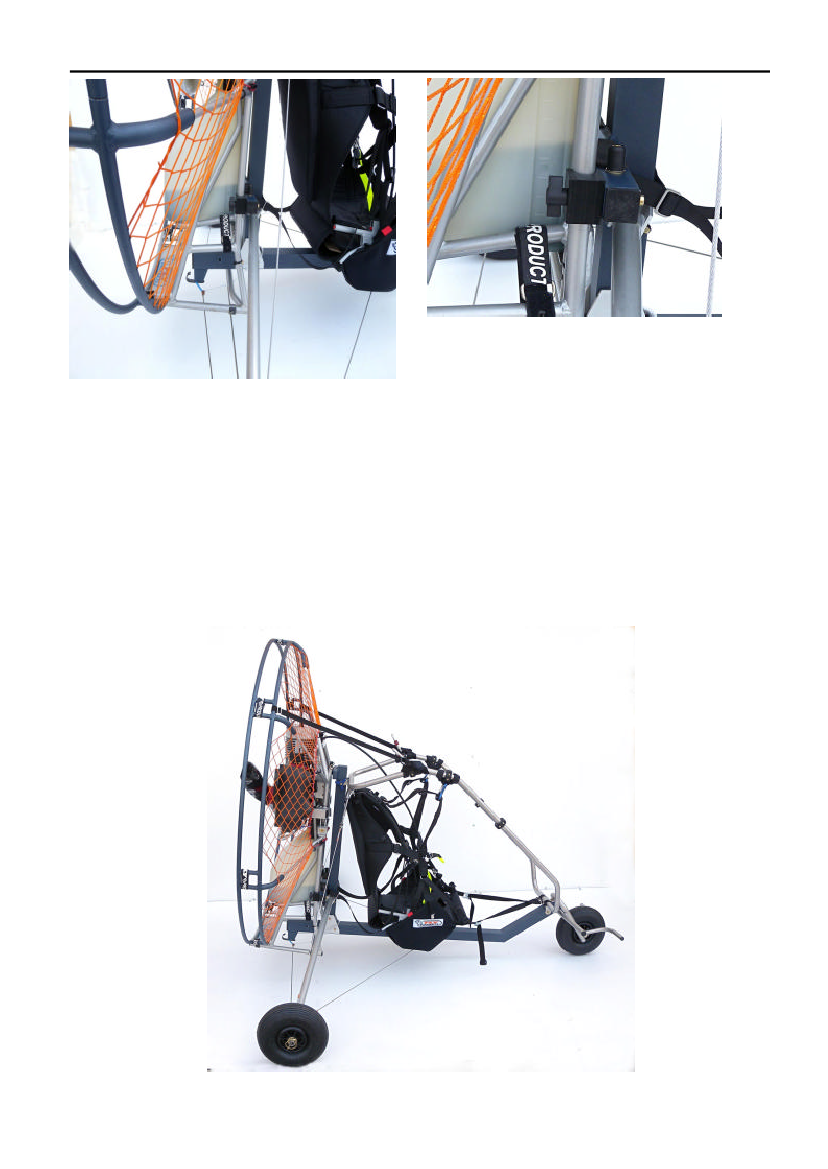

Assemble the two upper cage frames and insertthe special lower cage frame.Lock all velcro strap , true lower frame in linewith engine base frame, hold the frame inposition and drill with a 6,5 mm point the engineframe trough the preset hole in the cage frame.Lock it with theissued plasticwing nut, insertingthe ovalizedsupport in thisway?.
Fasten the upper plastic wing bolt
This terminate the engine mountig SETUP that is required ONLY for an eventally change of theengine model with different holes position.Continue from here the standard assembly of the TRIKE-FLASH:
This complete the trike assembly, check your work before go on.
TANDEM AND SINGLE VERSIONTransform the TRIKE-FLASH from single version to double version is very simple, just invert theattachment positions from carabiners to harness and then mount the second harness in the presetattachment positions
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page11
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
TANDEM
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page12
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
SINGLE
Assembly inspectionIt is critical to fully inspect the assembly of theTRIKE-FLASHto find and remedy any potentialproblem areas before proceeding.The inspection should contain, at a minimum, the following items:?Review each assembly step above?Examine all nuts, bolts, and fasteners for security?Check the harness for correct mounting, that all straps are secure, that there are no twists onany straps?Examine prop cage for correct assembly, that it is strong, the netting is tight and on the correctside?Check that nothing can get in the prop. The prop should clear the cage by same distance at allpoints.___________________________________________________________________________�Copyright byFLYProductss.r.l.Page13
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
??
Check the fuel tank and fuel delivery system.Check for correct mounting of prop, and correct torque of prop bolts.
PREPARING FOR YOUR FIRST FLIGHTGiven that the certification of the TRIKE-FLASH is planned for theGOLD 130Engine PPG unit, youhave to follow the procedures described in the proper PPG manual before to take off.WE summarize here the main points.WARNING!Use common sense when refueling. Do not refuel a hot or running engine, do not smokeor allow on- lookers to smoke while refueling. Do not refuel near heat or open flame
Pre-flight InspectionBefore your first flight, and before every flight, it is absolutely essential to perform a pre- flightinspection on your aircraft.WARNING!Failure to perform a sufficient pre- flight has been a contributing factor to accidents in allkinds of aircraft. Equipment damage, bodily injury, even death can occur due to equipment problems notcaught in a pre-flight inspection.As the saying goes, “Pre- flight as if your life depends on it, because it does!”The essential items to check are:?????TRIKE -All the wires well tensioned and tension rods tighten with nuts locked- Check all the Velcro straps and all blockings.PARAGLIDER– this PPG was homologated with the SWING “Powerplay Sting140” modelwhich has a 29,5 m� surface, check the lines and canopy integrity.ENGINE– check everything is ok , the silent-block integrity and gasoline mixture level.PROPELLER– blades integrity, bolts clamping.RECOVERY SYSTEM(if there is) – ready and safety catch off.
NOTE!Example of pre- flight checklists can be found at the end of this manual.It is highly recommended that you use one of the examples, or create your own, print it out, laminate it,and use it whenever you fly.Also note that these Checklists are examples only, FLY PRODUCTS is not responsible for their use orfor their completeness.
Pre-Flight Checklist ExamplesThe following checklists are provided only as EXAMPLES.It is recommended to produce one tailored to your own needs, print it and laminate it, and carry it withyou.
Pre-Flight Checklist Example 1___________________________________________________________________________�Copyright byFLYProductss.r.l.Page14
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
Site/Conditions?Current weather?Long-range (next few hours) forecast?Winds aloft?Takeoff/landing direction?Obstructions (especially Power lines)Wing?Lay wing out into wind19?Lines straight and clear?Riser/Line condition?Quick- links tight (hand tighten only)?Correct brake lengthTRIKE?wires well tensioned and tension rods locked?Webbing and straps for stress?Prop Guard for alignment/stress/wear?All fasteners tight?Carabiners condition?Radio secured?Sufficient fuelStrap In, Hook Up?Buckles secure?Chest strap tight?Harness adjusted properly?Reserve parachute attachment?Risers hooked up correctly?Carabiners locked?Nothing loose to get in prop?Radio for volume, clearness?Helmet on, tight, fastenedStartup and Launch?Brake lines/risers held correctly, no tangles?Engine run-up to correct RPM?Kill switch working (briefly push)?Look UP during run!
Pre-Flight Checklist Example 2ENGINE1)2)3)4)PRE-STARTCAGE SECUREWIRES WELL TENSIONED AND TENSION RODS LOCKEDGAS AMOUNT AND QUALITY OKGAS CAP ON AND SECURE
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page15
TRIKE-FLASH OWNER’S MANUAL5)6)7)8)9)10)11)TANK VENT OPENTHROTTLE CABLE FREE AND FULLPROP NUTS TIGHTPROP CONDITIONSHAKE TEST MUFFLERSHAKE TEST CARBURETORFUEL LINES OPEN NO KINKS
REL . 2.0
PRE-FLIGHT1)WEATHER TREND CHECK2)POCKET CHECK (NO LOOSE OBJECTS)3)WHEELS CONDITION AND INFLATING4)HARNESS POCKETS ZIPPED CLOSED5)PARAMOTOR/HARNESS CONNECTS SECURE6)EARPLUGS IN7)HELMET ON AND SECURE8)RISERS/BRAKES/LINES FREE AND CORRECT9)3 HARNESS BUCKLES GOOD10)LEG STRAPS TIGHT11)ELECTRIC STARTER SYSTEM READY12)SET UP ALTIMETER AND GPS13)CHECK RESERVE PARACHUTE PINS14)PRIME CARBURETORRUN-UP1)2)3)4)5)6)7)
ENGINE SECURECHECK THROTTLE CABLE FREECLEAR PROP! STARTCHECK CUT OFFFULL MAX CHECK, VIBRATION OKIDLE CHECKWARM UP AND KILL
TAKEOFF1)LINES/BRAKES TAUT AND CORRECT2)WING ORIENTATION TO WIND3)START4)THROTTLE CUT-OFF CHECK5)FULL POWER CHECK, IDLE OK6)WIND, CHECK FOR CHANGE7)CHECK TRAFFIC8)CLEAR
Even though you must know these information learned in your license-flight , we wont rememberyou some important flight information:
Flights under special conditionsRAIN:In principle no flights under rainy conditions should become necessary. Anyway, every pilot may getinto unforeseeable worse weather conditions. And so if the rain is only very light, the flight may becontinued for a certain time, but the wet canopy will get heavier. Therefore flight speed will increase,causing a higher stall speed as well.With a wet wing fly carefully, avoid sudden maneuvers and don't be excessively slow when landing.If the rain gets stronger land!No flights in strong rain!WIND:If the wind speed is over 10 km/h AVOID ABSOLUTELY TO FLY!___________________________________________________________________________�Copyright byFLYProductss.r.l.Page16
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
FLIGHTS IN SNOWY CONDITIONS:They are not permitted at all. In case it starts to snow during flight land soon as possible!EXTREME TEMPERATURES:Remember that flight parameters changes in different temperature levels.At high temperatures the required power and the required flight speed increases, so that the take offdistance gets longer than in winter. This is similar to flights in high altitudes.
Dangerous situationExtreme flying with a trike and full gas are extremely dangerous and therefore cannot be tested. Theymust be avoided at all costs. Problems do not arise during a normal flight. However, pilot error duringthe flight or extreme wind conditions may force the wing into an unusual flying position. This mayrequire the pilot to make corrections during flight to which he may not be used to.In this section we explain how to correct extreme situations if they do arise. The maneuvers describedbelow are based on the legal -take-off weight as described in the technical data section.These instructions do not replace safety training or specialized literature. We recommend that youundertake special safety training which will prepare you for extreme situations.Always keep within the recommended limits. Do not perform aerobatics or extreme flying maneuvers.FRONT STALLStrong turbulence can cause part or all of the leading edge of the glider to fold or tuck under.Normally the SWING “Powerplay sting 140” wing will immediately recover into its normal flightposition.- RecoveryIf the wing not immediately recover from a frontal tuck, brake quickly and strongly with both steering-lines (brake lines) to re-inflate the glider.Any weather condition which causes a front stall is dangerous. If you get into such weather land as soonas possible and do not continue before the weather got quieter!
FULL STALLA full stall could occur i full brake is applied during the flight. The paraglider slows down, surgesfbackwards and deflates. If the brakes are held down, the canopy comes up over the pilot again.- RecoveryFully release the brakes within 3 seconds. If you release the brakes too slowly, theparaglider may spin. The spin stops automatically when the brakes are released completely.
ASYMMETRICAL TUCKSIn turbulent air, one side of the paraglider may collapse. Some of the cells deflate and the wing maycollapse or spin.During test flights the “Powerplay sting 140” wing self- recovered it turned less than 90� and stabilizeditself.- Recovery___________________________________________________________________________�Copyright byFLYProductss.r.l.Page17
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
• Counter-brake slightly on the side of the paraglide that is still inflated tostop it turning away and to stabilize it.• Counter-brake just enough that the paraglider continues to fly straight ahead.• If the wing has not yet self-recovered, pump with the brake on the side thathas collapsed in order to open it, making use of the full brake travel.WARNING!Counter-braking too strongly can result in a stall on the inflated side.
TAKE-OFF PROCEDURELine up the TRIKE-FLASH with the wind directionSpread the SWING “Powerplay STING 140” paraglider behind the trikeConnect correctly all the lines to the TrikePull forward the Trike until the lines are straightAvoid to start with the wing too close, this may receive a dash that reducing its lifetime, as wellas to an overloading of the push rods: Their steel cables do not support horizontal loads but onlyvertical !When you are ready, check the wind again (always take off and land against the wind!), hold thethrottle handgrip in the hand, check the cable is free and safe, and both brake handles into hands.Start the engine , give gas gradually and watch the paraglider movement, if the paraglider doesn't comeup symmetrically correct it immediately with the brake, if it is not longer possible abort the take-off!Shut off the engine and redo the sequence from start.Once the paraglider is over the Trike it may be necessary to brake it a little bit to avoid that the wingmay go forward to much and drop over, curves are made just with the paraglider, the Trike will follow.After a few seconds (depending on the wind, from 2 to 15 meters ) with full gas the Trike will take offand fly.-----
The FlightFlying the TRIKE-FLASH is very similar to flying a standard backpack motor system, but morecomfortable.You can set the gas with the cruise control on the handgrip and trim the paraglider for to fly straight.
LandingLanding a Trike is much easier than a with a normal paramotor as the forward speed it’s not veryimportant parameter. The essential is to land straight against the wind, avoiding to curve before camecompletely down!
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page18
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
MAINTENANCERegular checks obligation.In Germany the PARA TRIKE (only with empty mass less than 120 Kg.) must not be checked once ayear, it depends on the manufacturer. Most of them declare: must be checked once a year by a qualifiedperson. We too align with this behavior and recommend you to check it once a year!The same with the canopy, it depends on the manufacturer of the canopy, most of them must be checkedin a TWO years cycle by manufacturer.
Ordinary MaintenanceEven if the TRIKE-FLASH don’t need important maintenance, we suggest to proceed every 100 hoursof use to an accurate inspection of following items:-WHEEL’S ROLLER BEARINGSRemove the wheels, extract and clean the roller bearings for check their wear condition: If you havesome doubt, don’t hesitate, replace immediately!Before reassemble remember to accurately grease them inside and outside.
-
FRONT WHEEL PIVOT PIN
Verify the wear and oxidation condition of thefront wheel pivot pin, if it isn’t in goodcondition, don’t hesitate, replace immediately!
Check the bolt clamping and tighten if necessary
___________________________________________________________________________�Copyright byFLYProductss.r.l.Page19
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
-
REAR WHEELS RODS BOLTS
Verify the wear and oxidation condition of the rearwheels gears bolts, if they aren’t in good condition,don’t hesitate, replace immediately!Check the bolts clamping and tighten, if necessary,the bolts on mounting side leaving free to rotate thebolts on wheels rods sides.
-
REAR WHEELS STEEL WIRES
Verify the wear and oxidation condition of therear wheels steel wires, i they aren’t in goodfcondition, don’t hesitate, replace immediately!Check wires integrity near the splices bendingaccurately the cable to verify broken wires.
-
EYELETS AND CARABINERS
Check wear conditions inside all eyelets and carabiners.If there are some worn or crack beginnings, proceed immediately to replace!
-
HARNESS AND BELTS
Check wear conditions of the harness and all belts.
CleaningClean yourTRIKE-FLASHwith clean water and a mild soap. Dust and dirt can be brushed off, orremoved with water and mild soap. Grease and oil can be removed with a good water-based degreasersuch as “Simple Green”.
RepairsMinor repairs can be performed by yourself.Major repairs should be performed by a trained service technician, or by FLY PRODUCTS.CAUTION:Repairs to the harness or any stress-carrying areas of theTRIKE-FLASHshould only beperformed by a certified parachute rigger.
Paraglider___________________________________________________________________________�Copyright byFLYProductss.r.l.Page20
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
CleaningClean the paraglider only with a soft sponge and clean water.Harsh chemical substances, high-pressure cleaners or steamers will destroy the surface layer.Clean the paraglider only if it is absolutely necessary.RepairsRepairs should only be carried out by the factory or a specialist recommended by the manufacturer.You can repair small tears in the wing yourself using the material recommended by the manufacturer, aslong as they are in areas which do not bear heavy loads and they are not bigger than 3 cm.WARNING!Always replace lines that are damaged with only original parts or parts that have beenauthorized by the manufacturer.

Paraglider inspections

GeneralFailure to observe the inspection periods will invalidate the warranty and certification.A properly completed logbook will help you to comply with the periods.Inspection periodsThe SWING “Powerplay STING 140” glider must be inspected as follows:- Gliders used by schools and commercially used gliders must be inspected (as for the 2- yearly check)every 12 months from the purchase date.- Gliders for personal use (not used commercially) must be inspected at least every 2 years from thepurchase date.- The paraglider must be inspected after 150 hours of use (including ground handling) if this occurs priorto the periods of 1 year or 2 years as above.CAUTION: Ground handling time must be at least doubled when working out the total hours of usebecause of the increased wear and tear on the glider.Inspection validityAll inspections must be carried out by Fly Products, by SWING, or another inspection agent authorizedby Fly Products. The documentation and the result of the inspection must be clearly identifiable by theinspector (date and place / name of inspector) and be entered near the glider information/certificationsticker.
WarrantyFLY PRODUCTS will warrant their product to be free from defects in materials and wo rkmanship for aperiod of six (12) months from the date of purchase. This warranty applies to the product in normalusage situations only. The dealer, from whom you purchased the product, or FLY PRODUCTS, willrepair the product free-of-charge.To obtain warranty service, please contact your dealer or FLY PRODUCTS, and then either bring theproduct in or have it shipped. Shipping charges are the responsibility of the purchaser.This warranty does not apply even during the warranty period, and the purchaser shall pay repair orreplacement charges if:?The cause of malfunction is due to misuse, neglect, negligence, etc. This includes seize of theengine due by an improper carburetor adjustment or improper fuel/oil mix.___________________________________________________________________________�Copyright byFLYProductss.r.l.Page21
TRIKE-FLASH OWNER’S MANUAL
REL . 2.0
?The malfunction is caused by incorrect pilot operation, i.e. a crash, whack, dork, bang, splat,ding, prong, bend, tweak, trip, fall, bounce, or any other piloting eventuality.?The malfunction is caused by lack of normal maintenance, or modification, i.e. loose partsfalling off and breaking the prop.?The malfunction is caused by an Act of God, including but not limited to fire, earthquake,hurricane, flood, or other natural calamity.
10.1 Internet info and upgradeFor information, more details and news see our internet site:www.flyproducts.comFor safety information , data and rules you can visit the DULV website:www.dulv.de
